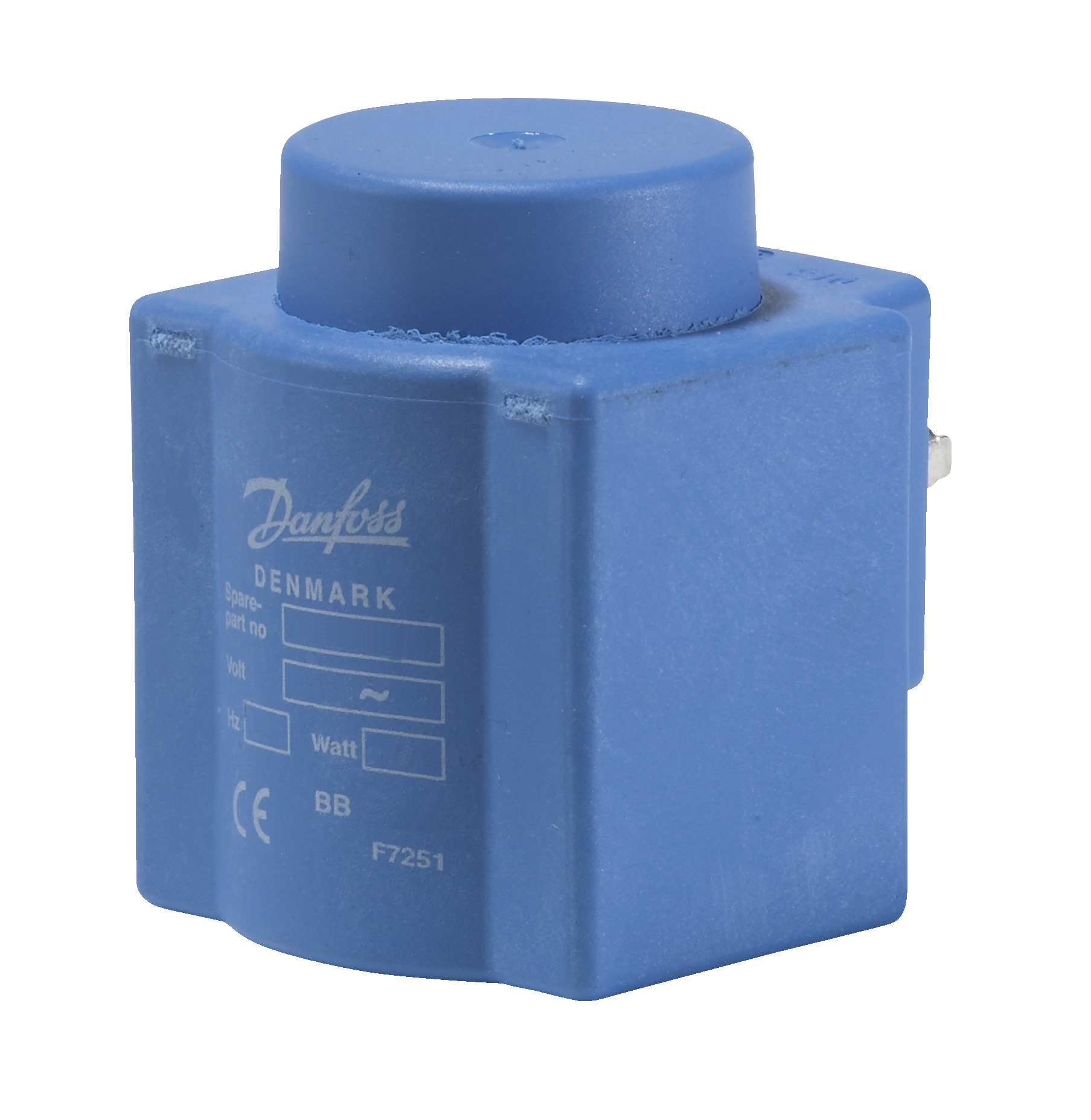

042N7432
Part Number: 042N7432
Product Information
Extended Description
042N7432 Danfoss: Electrical connection: DIN Spade, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.266 Kilogram
Net weight
0.244 Kilogram
Volume
0.198 Liter
EAN
5702423030989
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Nut and snap
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Identical product
042N8432
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption 50Hz [VA]
31 VA
Power consumption 60Hz [VA]
24 VA
Power consumption [W] 50Hz
16 W
Power consumption [W] 60Hz
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
042N7432
Supply voltage 50Hz Max [V]
230 V
Supply voltage 50Hz Min [V]
220 V
Supply voltage 60Hz Max [V]
230 V
Supply voltage 60Hz Min [V]
220 V
Type
BB230C
Type designation
BB230C
UK RoHS compliance
Out of scope
