042N7453
Part Number: 042N7453
Product Information
Extended Description

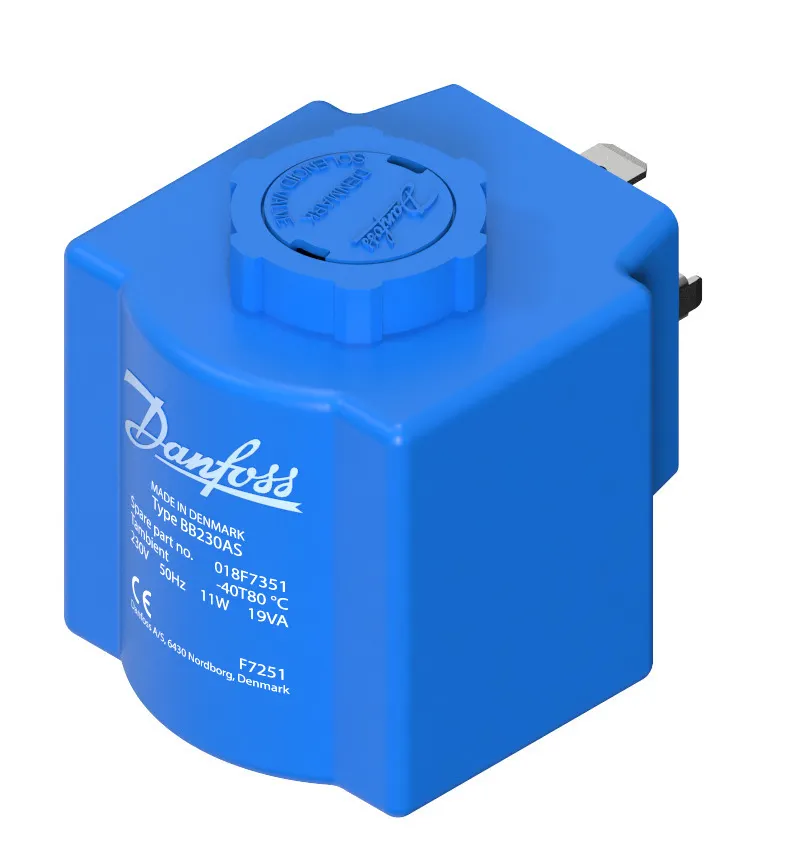

042N7453 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.254 Kilogram
Net weight
0.234 Kilogram
Volume
0.198 Liter
EAN
5702423030415
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil fastening
Nut and snap
Colour
Blue
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption [W] DC
10.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
Serviceable
No
Spare part number
042N7453
Supply voltage [V] DC
24 V
Type
BC024D
Type designation
BC024D
UK RoHS compliance
Out of scope
