042N7520
Part Number: 042N7520
Product Information
Extended Description

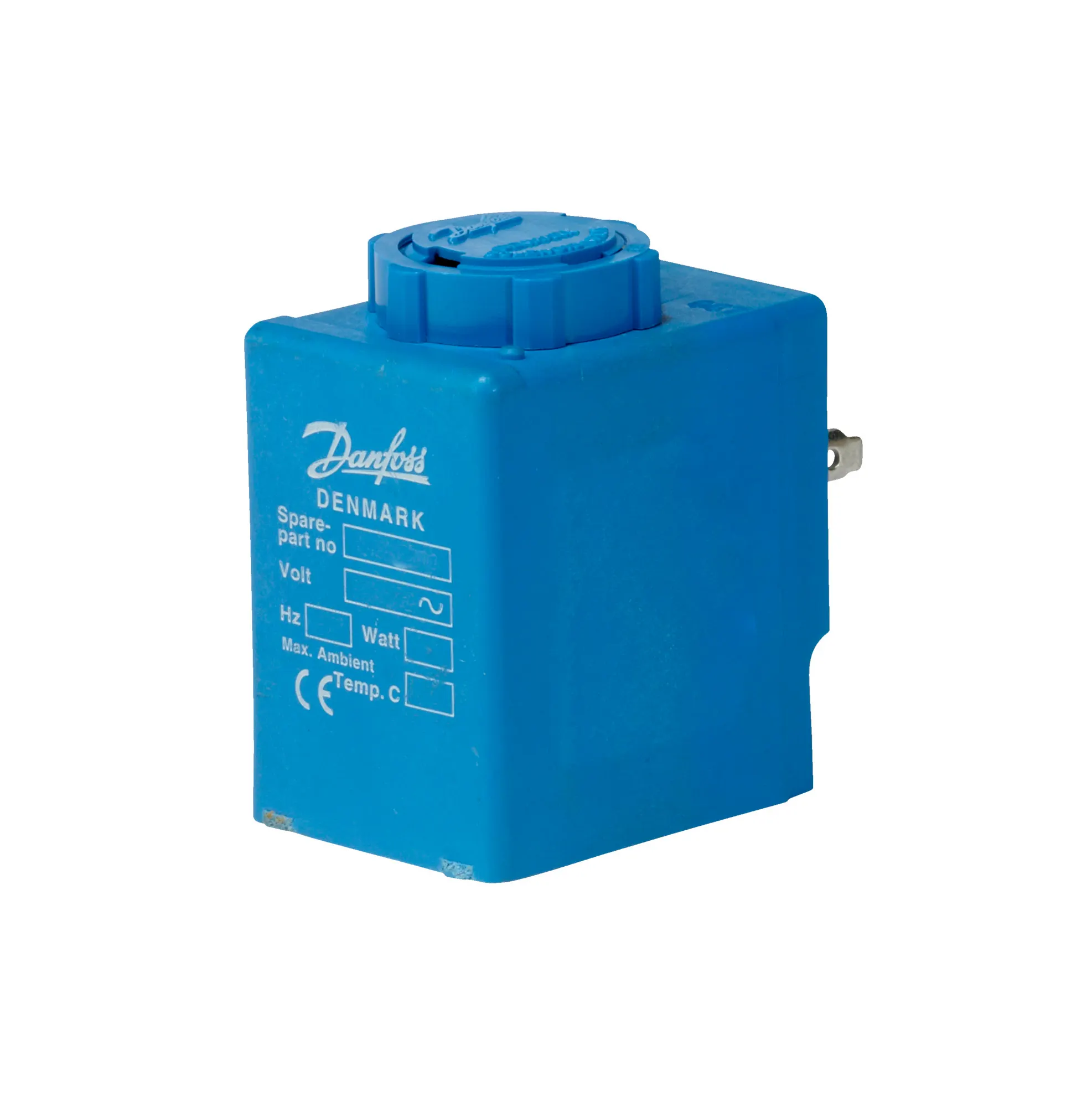

042N7520 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Frequency [Hz]: 60 Hz, Enclosure rating IP: IP00
Gross weight
0.172 Kilogram
Net weight
0.159 Kilogram
Volume
0.12 Liter
EAN
5702423002566
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-40 °F
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Nut and snap
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts included
Nut,Snap fastener
Parts Program name
EV210B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV310B
Power consumption 60Hz [VA]
19 VA
Power consumption [W] 60Hz
9.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
45 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage 60Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
BA024B
Type designation
BA024B
UK RoHS compliance
Out of scope
