042N7550
Part Number: 042N7550
Product Information
Extended Description

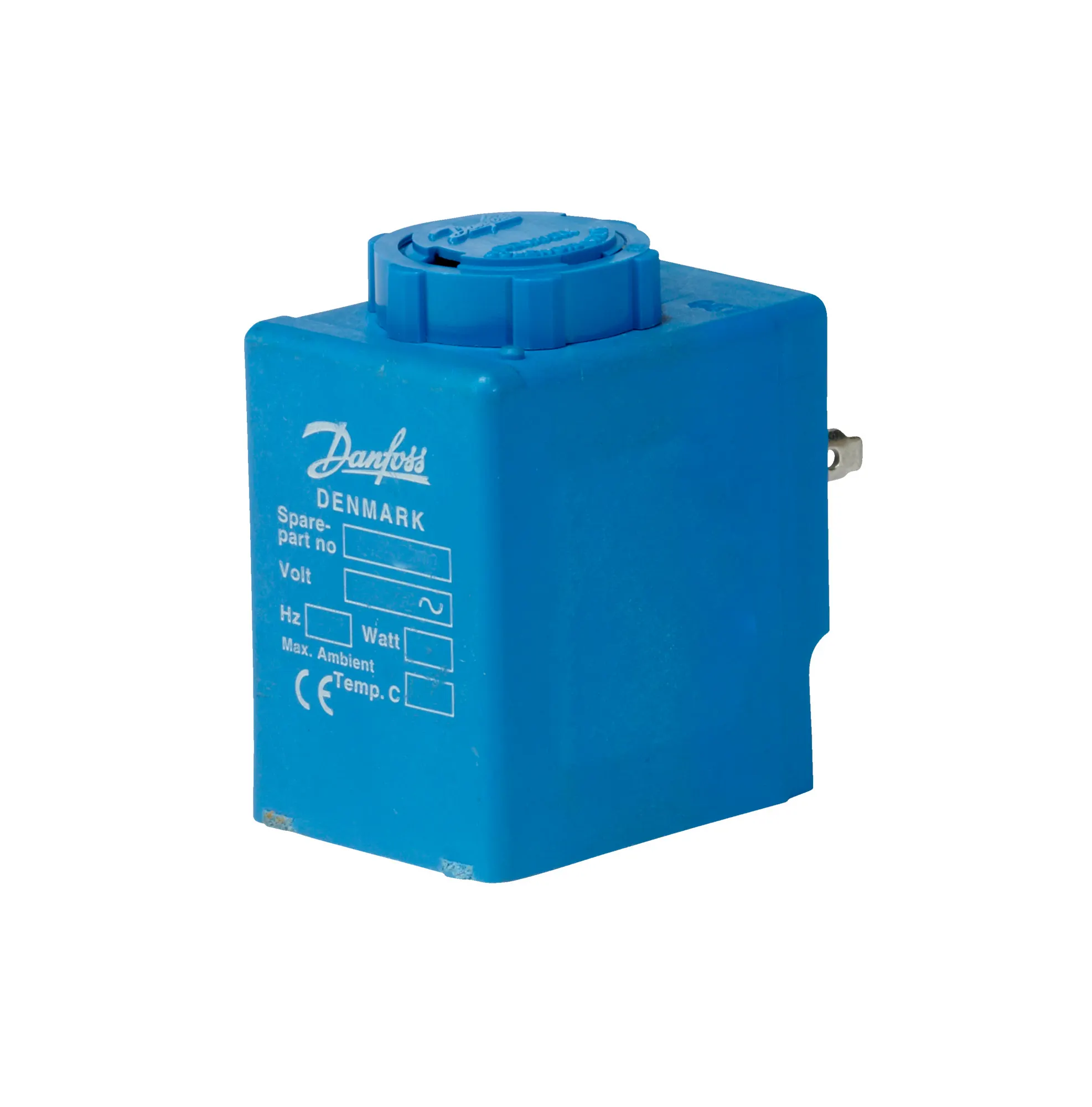

042N7550 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.192 Kilogram
Net weight
0.177 Kilogram
Volume
0.12 Liter
EAN
5702423024667
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-40 °F
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Nut and snap
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(b),6(c)
In scope of WEEE
Yes
Packing format
Multi pack
Parts included
Nut,Snap fastener
Parts Program name
EV210B,EV220B 15 - 50,EV310B
Power consumption [W] DC
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
45 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage [V] DC
12 V
Type
BA012D
Type designation
BA012D
UK RoHS compliance
Out of scope
032U4901
Solenoid valve, EV310B, Function: NC, G, 1/8, 0.150 m³/h, FKM
032U4904
Solenoid valve, EV310B, Function: NC, G, 1/4, 0.150 m³/h, FKM
