042N7591

Part Number: 042N7591
042N7591
Manufacturer
Danfoss
Part number
042N7591
Category

Product Information

Extended Description

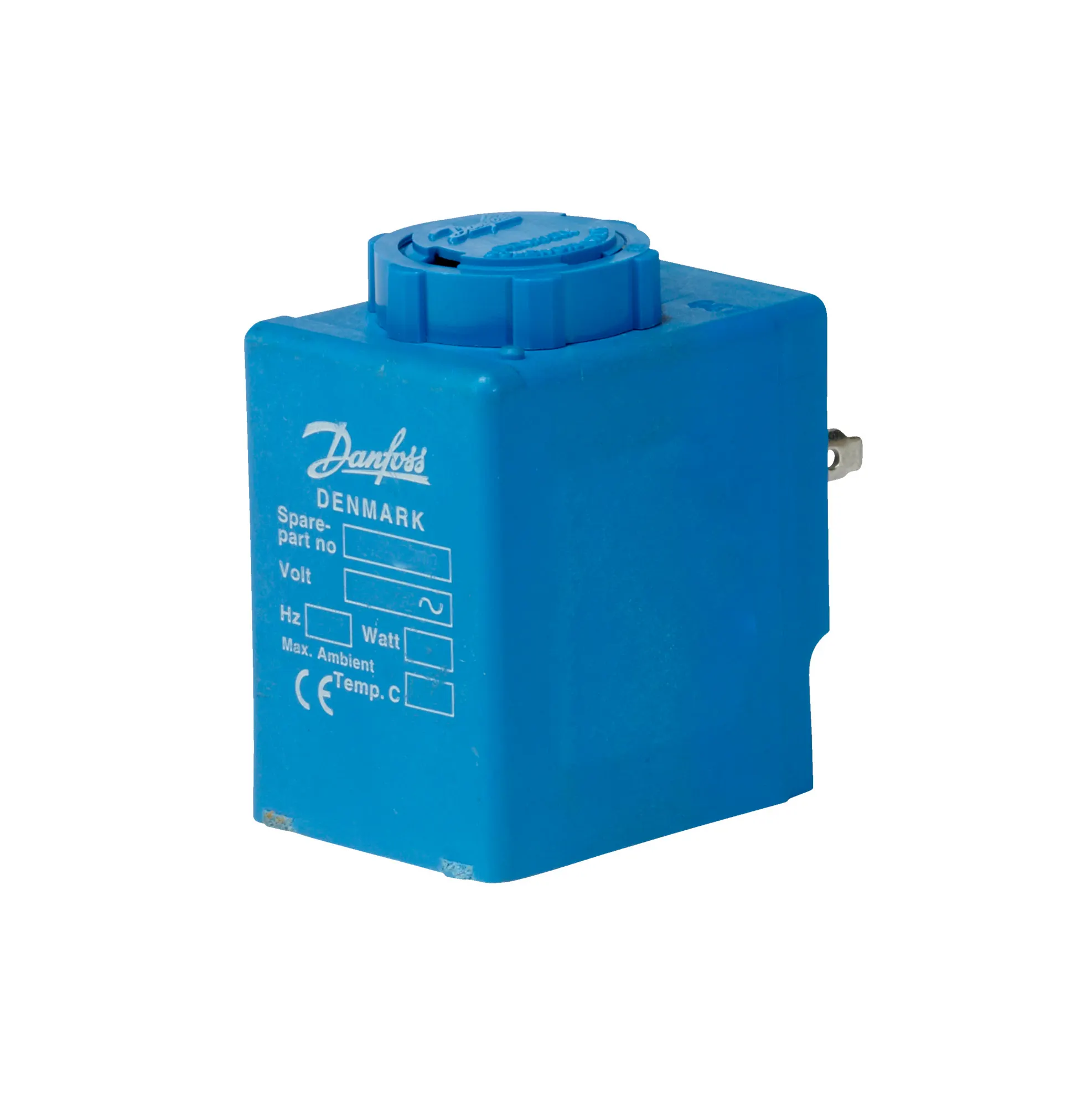

042N7591 Danfoss: Solenoid coil, Product Type: BD230A, Supply voltage [V] AC: 230, Enclosure rating IP: IP00, Coil connection: DIN Spade, Actuator size: 13.5 mm
Gross weight
0.181 Kilogram
Net weight
0.169 Kilogram
Volume
0.12 Liter
EAN
5702423205998
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-40 °F
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Nut and snap
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts included
Nut,Snap fastener
Parts Program name
EV210B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV310B
Power consumption 50Hz [VA]
28 VA
Power consumption [W] 50Hz
13.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
45 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
Serviceable
No
Supply voltage 50Hz Max [V]
230 V
Supply voltage [V] AC
230 V
Type
BD230A
Type designation
BD230A
UK RoHS compliance
Out of scope
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD Danfoss EU-UK 033F0688.AJ BA high performance coil BD High performance coil BA Coil - DIN spade BD coil - DIN spade BA High performance coil BA high performance coil
