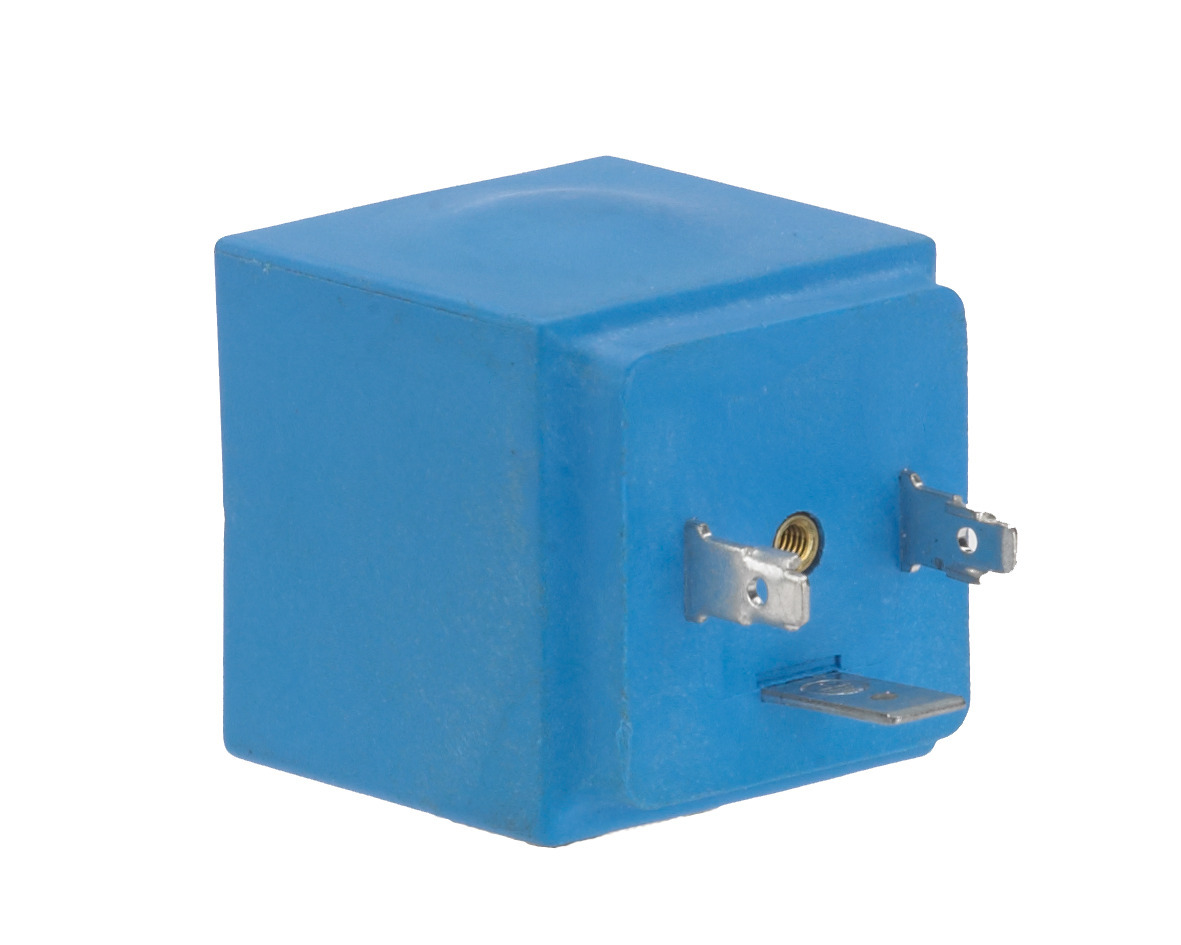

042N7687
Part Number: 042N7687
Product Information
Extended Description
042N7687 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.128 Kilogram
Net weight
0.121 Kilogram
Volume
0.087 Liter
EAN
5702428027427
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil fastening
Clip-on
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Identical product
042N8687
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV220W
Power consumption [W] DC
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
d9d5728d-cd94-47e1-8ca4-3a2768e38bd9
SCIP dossier product name
CSV 2-6/EVRP 6-10/EVU
Serviceable
No
Supply voltage [V] DC
24 V
Type
AS024DS
Type designation
AS024DS
UK RoHS compliance
Out of scope
