042N7696
Part Number: 042N7696
Product Information
Extended Description

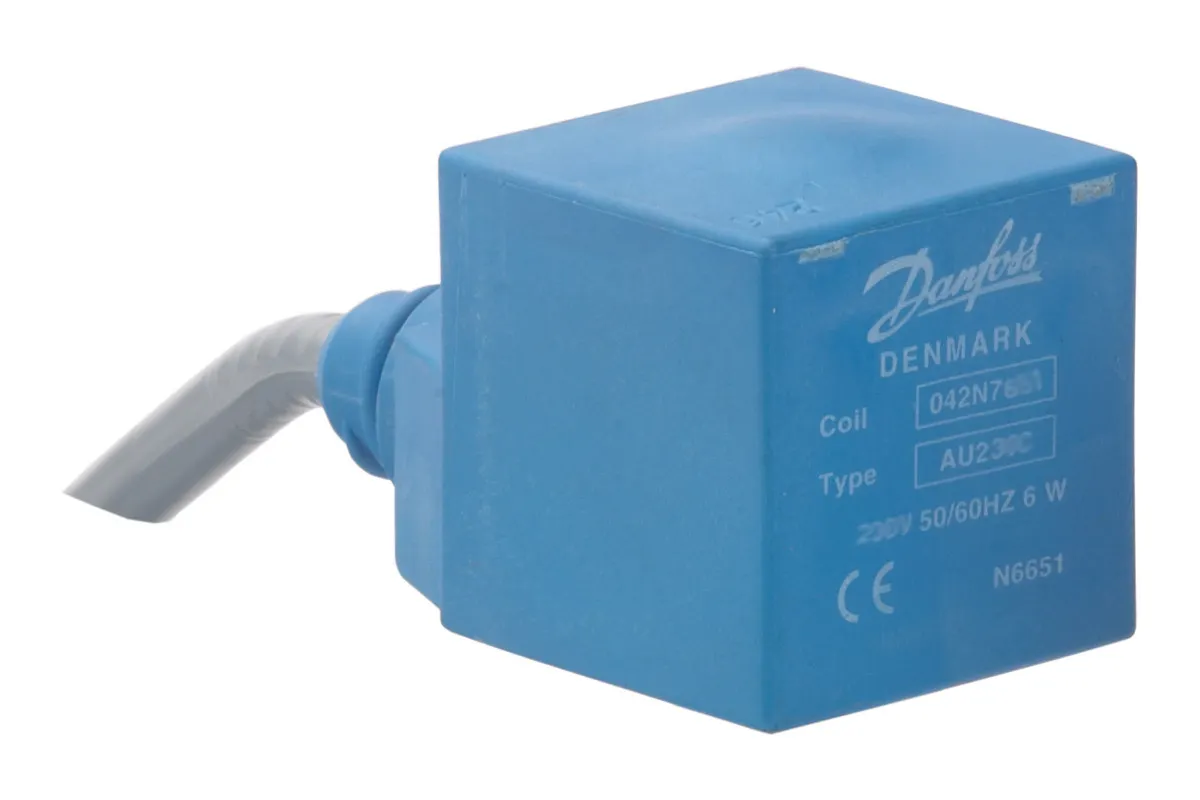

042N7696 Danfoss: Electrical connection: Cable, Enclosure rating IP: IP67
Gross weight
0.238 Kilogram
Net weight
0.169 Kilogram
Volume
0.904 Liter
EAN
5702428053938
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK
Cable length [in]
40 in
Cable length [m]
1 m
China RoHS compliance
Out of scope
Coil connection
Cable
Coil fastening
Clip-on
Colour
Blue
Compliance
EN 60730-1
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Cable
Electrical connector
3 core cable
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Identical product
042N8696
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV220W
Power consumption [W] DC
12 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
Serviceable
No
Spare part number
042N7696
Supply voltage [V] DC
12 V
Type
AU012DS
Type designation
AU012DS
UK RoHS compliance
Out of scope
