042N8204
Part Number: 042N8204
Product Information
Extended Description

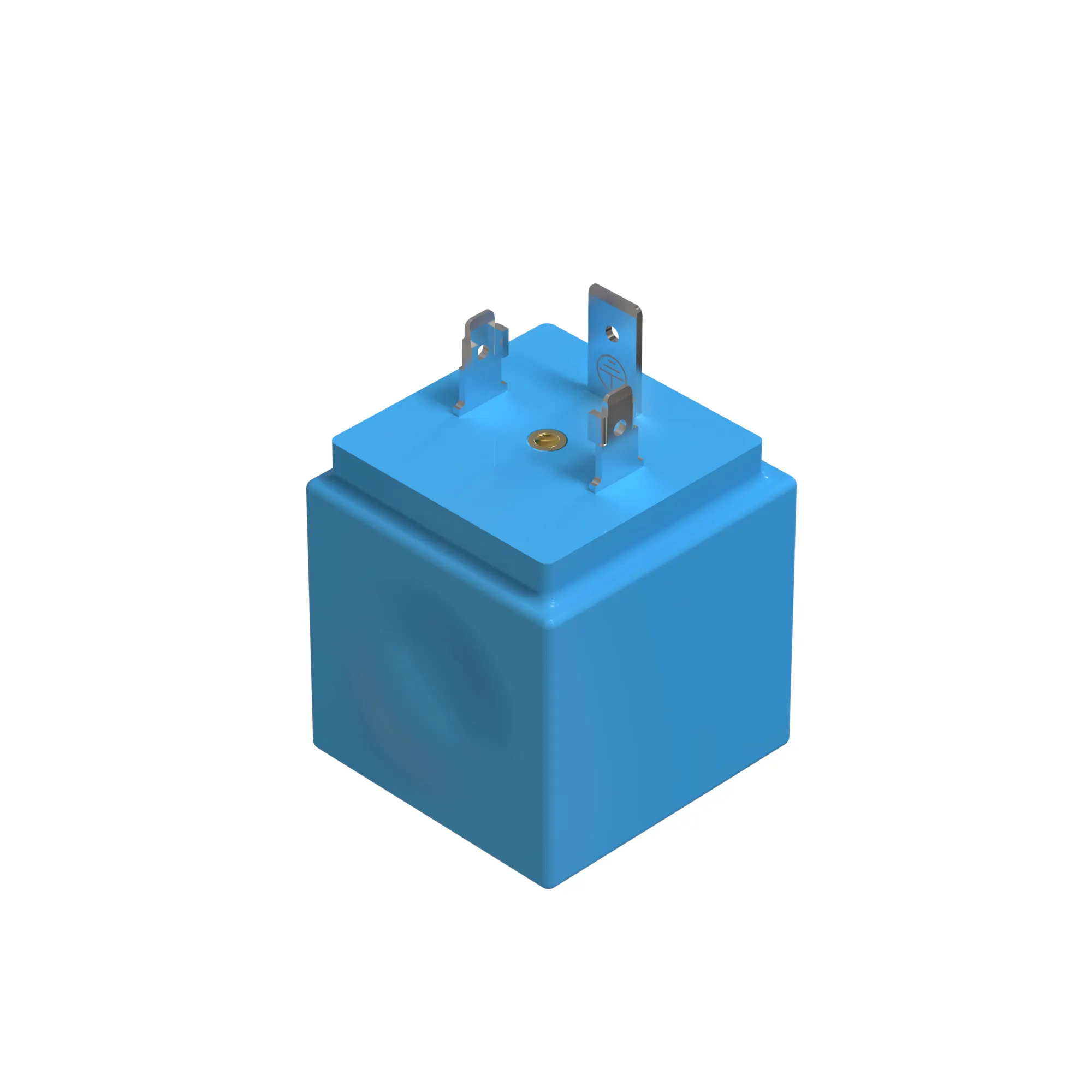

042N8204 Danfoss: Electrical connection: DIN Spade, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.121 Kilogram
Net weight
0.11 Kilogram
Volume
0.14 Liter
EAN
5702424586065
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
cURus
Coil connection
DIN Spade
Coil fastening
Clip-on
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Industrial pack
Parts Program name
EV220W
Power consumption 50Hz [VA]
11 VA
Power consumption 60Hz [VA]
11 VA
Power consumption [W] 50Hz
6 W
Power consumption [W] 60Hz
5.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
40 pc
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
Serviceable
No
Supply voltage 50Hz Max [V]
120 V
Supply voltage 50Hz Min [V]
110 V
Supply voltage 60Hz Max [V]
120 V
Supply voltage 60Hz Min [V]
110 V
Type
AZ120CS
Type designation
AZ120CS
UL approval file name
MH29671
UL evaluated
Yes
