042N8230
Part Number: 042N8230
Product Information
Extended Description
042N8230 Danfoss: Electrical connection: US Spade, Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.109 Kilogram
Net weight
0.101 Kilogram
Volume
0.156 Liter
EAN
5702423272129
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK,cURus
Coil connection
US 0.25 in Spade
Coil fastening
Clip-on
Colour
Blue
Compliance
UL 429
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
US Spade
Electrical connection size
0.25 in
Electrical connector
2 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c),6(a)
Frequency [Hz]
50/60 Hz
Identical product
042N4230
In scope of WEEE
Yes
Packing format
Industrial pack
Power consumption 50Hz [VA]
16 VA
Power consumption 60Hz [VA]
16 VA
Power consumption [W] 50Hz
8 W
Power consumption [W] 60Hz
8 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description

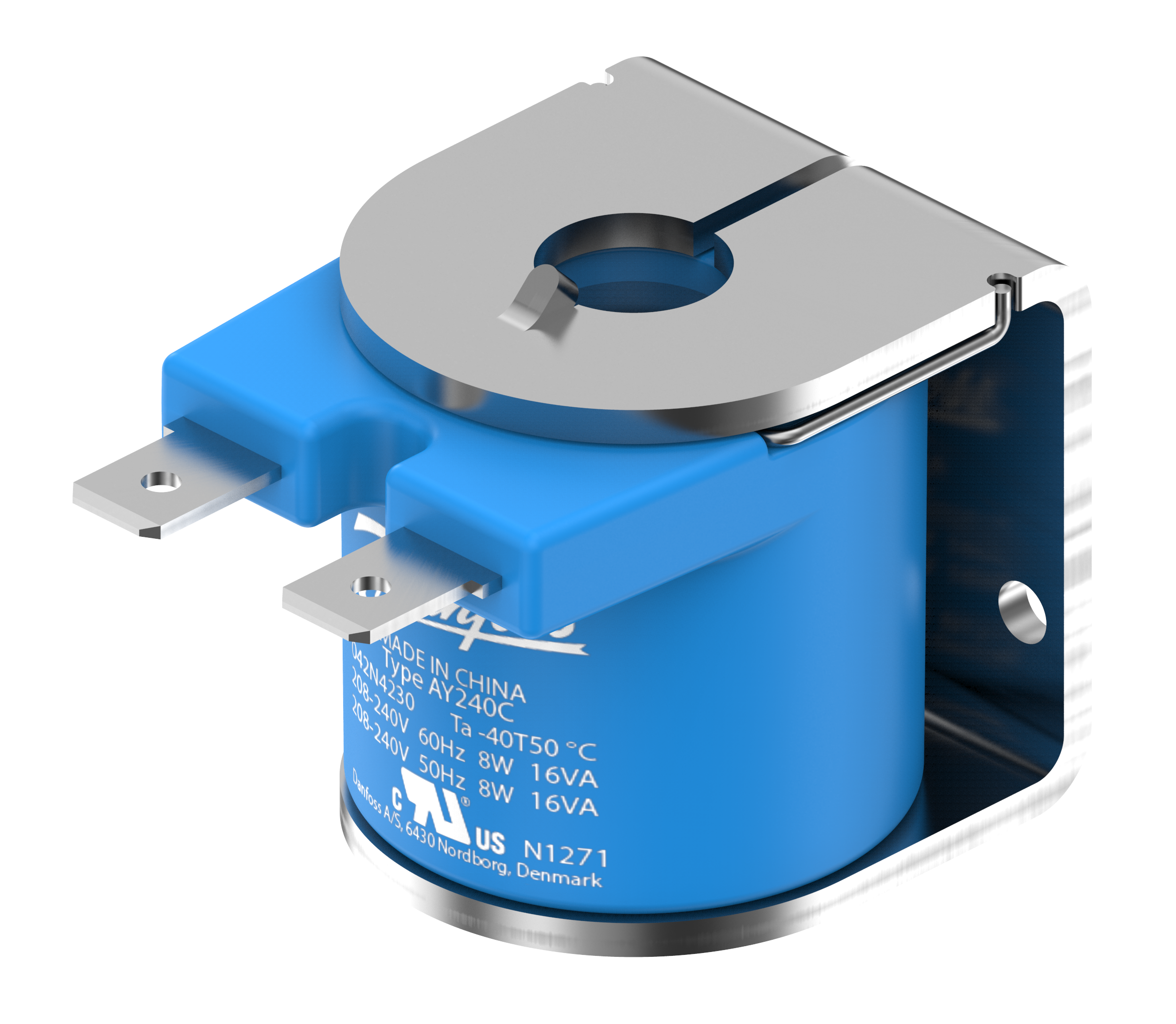

Solenoid coil
Quantity per packing format
40 pc
REACH Candidate List substances
No
Serviceable
No
Spare part number
042N4230
Supply voltage 50Hz Max [V]
240 V
Supply voltage 50Hz Min [V]
208 V
Supply voltage 60Hz Max [V]
240 V
Supply voltage 60Hz Min [V]
208 V
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
208 V
Type
AY240C
Type designation
AY240C
UL approval file name
MH29671
UL evaluated
Yes
