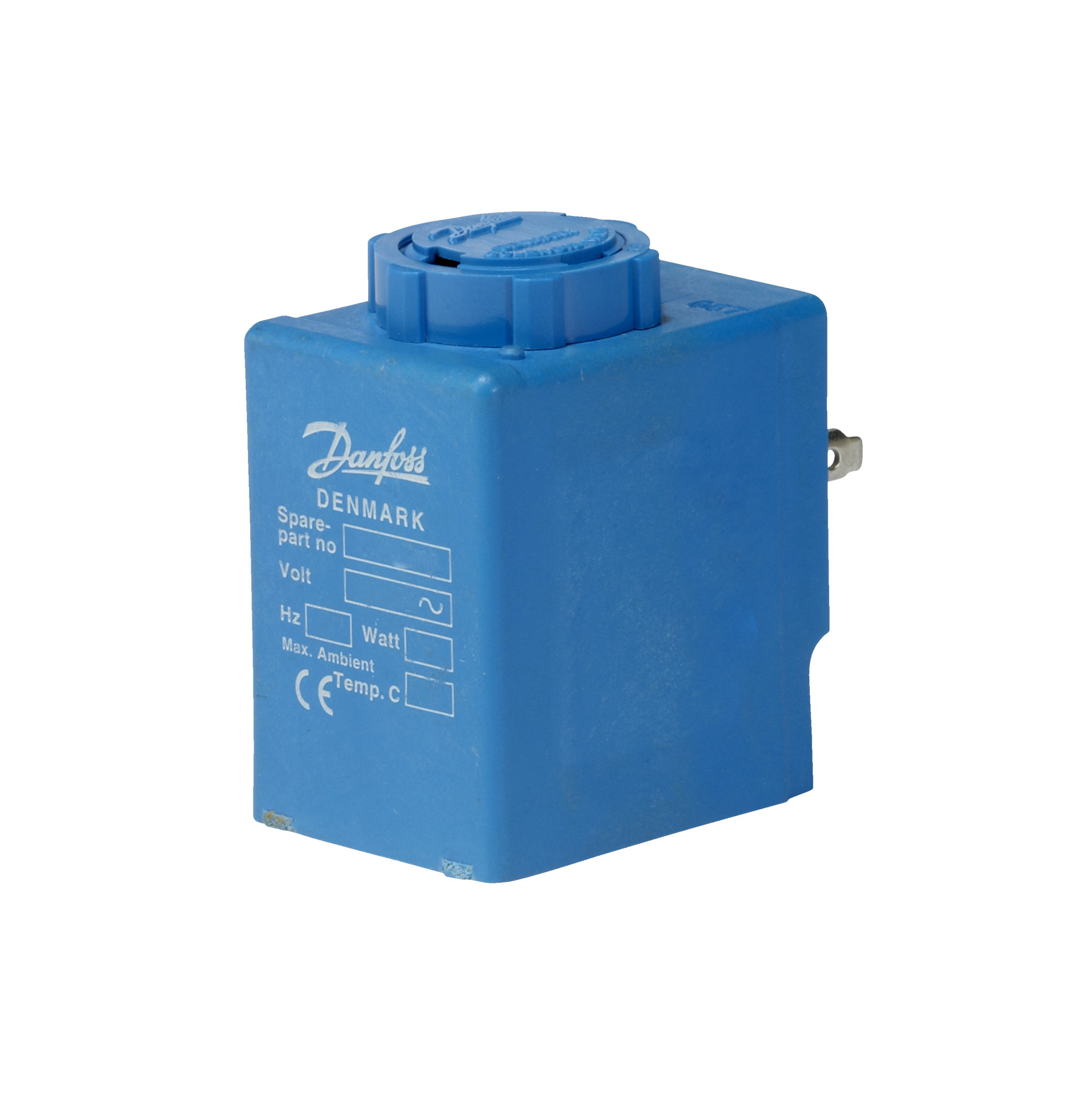

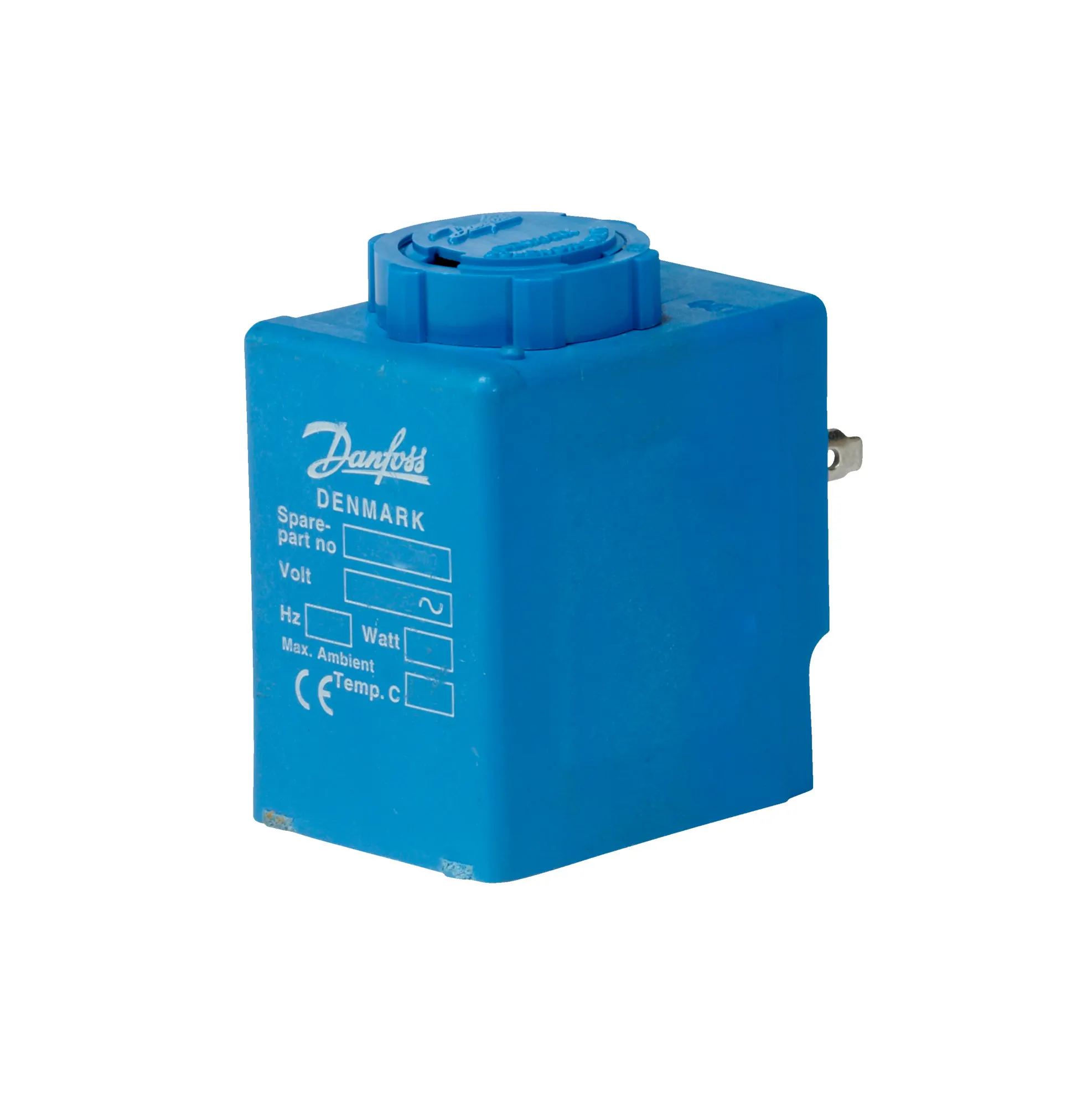

042N8508
Part Number: 042N8508
Product Information
Extended Description
042N8508 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP00
Gross weight
0.166 Kilogram
Net weight
0.156 Kilogram
Volume
0.24 Liter
EAN
5702423017287
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-40 °F
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Nut and snap
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(b),6(c)
Frequency [Hz]
50 Hz
Identical product
042N7508
In scope of WEEE
Yes
Packing format
Industrial pack
Parts included
Nut,Snap fastener
Parts Program name
EV210B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV310B
Power consumption 50Hz [VA]
17 VA
Power consumption [W] 50Hz
8.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
Serviceable
No
Supply voltage 50Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
BA024A
Type designation
BA024A
UK RoHS compliance
Out of scope
