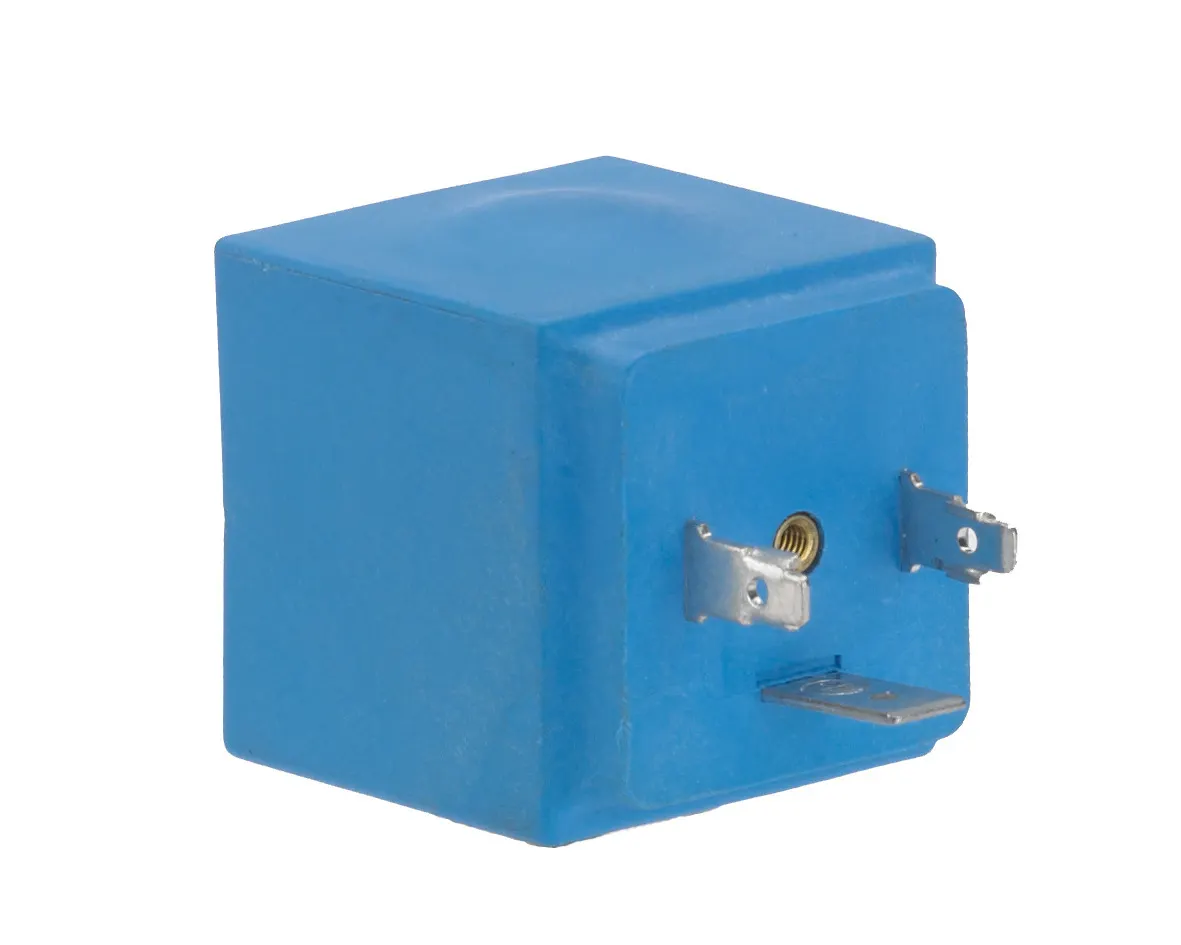

042N8616
Part Number: 042N8616
Product Information
Extended Description
042N8616 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.125 Kilogram
Net weight
0.116 Kilogram
Volume
0.092 Liter
EAN
5702424593667
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
UL 429
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
In scope of WEEE
Yes
Packing format
Industrial pack
Parts Program name
EV220T,EV220W
Power consumption [W] DC
6 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
40 pc
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
Serviceable
No
Spare part number
042N7616
Supply voltage [V] DC
12 V
Type
AZ012DS
Type designation
AZ012DS
UK RoHS compliance
Out of scope
