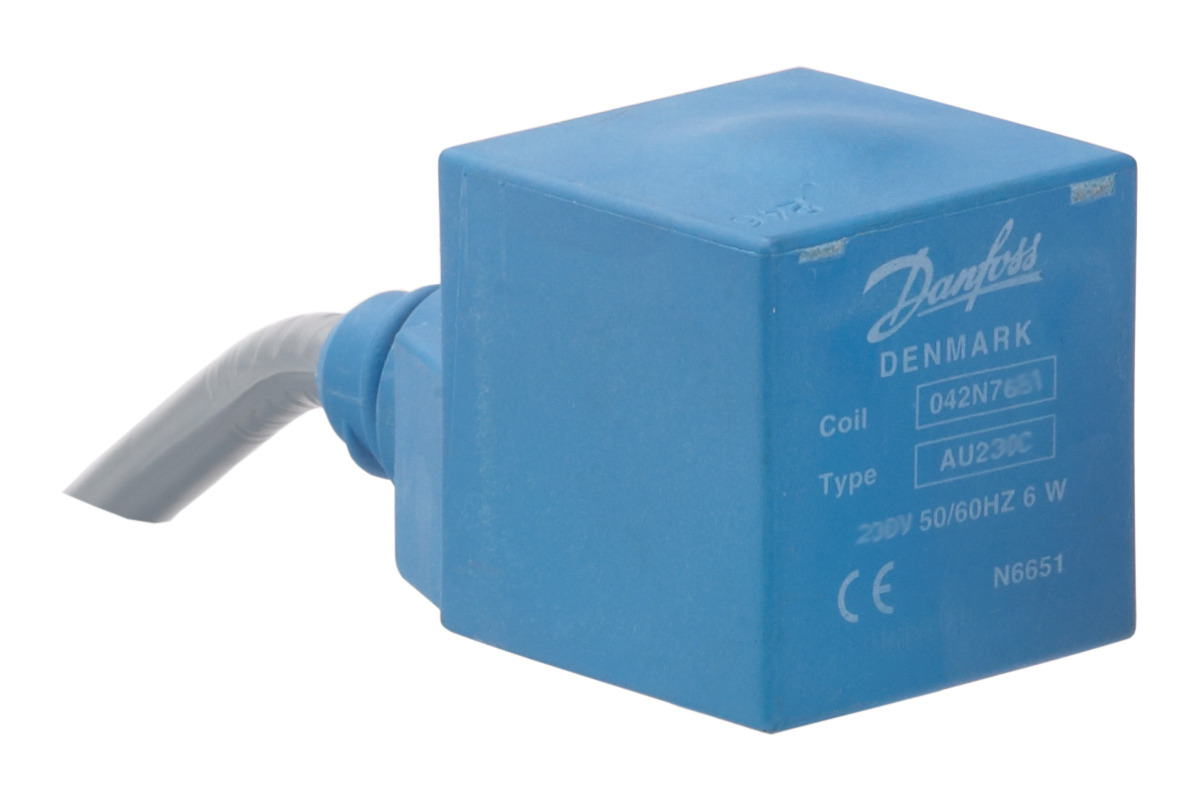

042N8652
Part Number: 042N8652
Product Information
Extended Description
042N8652 Danfoss: Electrical connection: Cable, Supply voltage [V] AC: 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67
Gross weight
0.191 Kilogram
Net weight
0.178 Kilogram
Volume
0.562 Liter
EAN
5702423211968
Actuator size
9 mm
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK
Cable length [in]
40 in
Cable length [m]
1 m
Coil connection
Cable
Coil fastening
Clip-on
Colour
Blue
Compliance
EN 60730-1
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Cable
Electrical connector
3 core cable
Enclosure rating IP
IP67
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Industrial pack
Parts Program name
EV220W
Power consumption 50Hz [VA]
13 VA
Power consumption 60Hz [VA]
10 VA
Power consumption [W] 50Hz
6.5 W
Power consumption [W] 60Hz
5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
20 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
Serviceable
No
Spare part number
042N7652
Supply voltage 50Hz Max [V]
240 V
Supply voltage 60Hz Max [V]
240 V
Supply voltage [V] AC
240 V
Type
AU240CS
Type designation
AU240CS
