042N8687
Part Number: 042N8687
Product Information
Extended Description

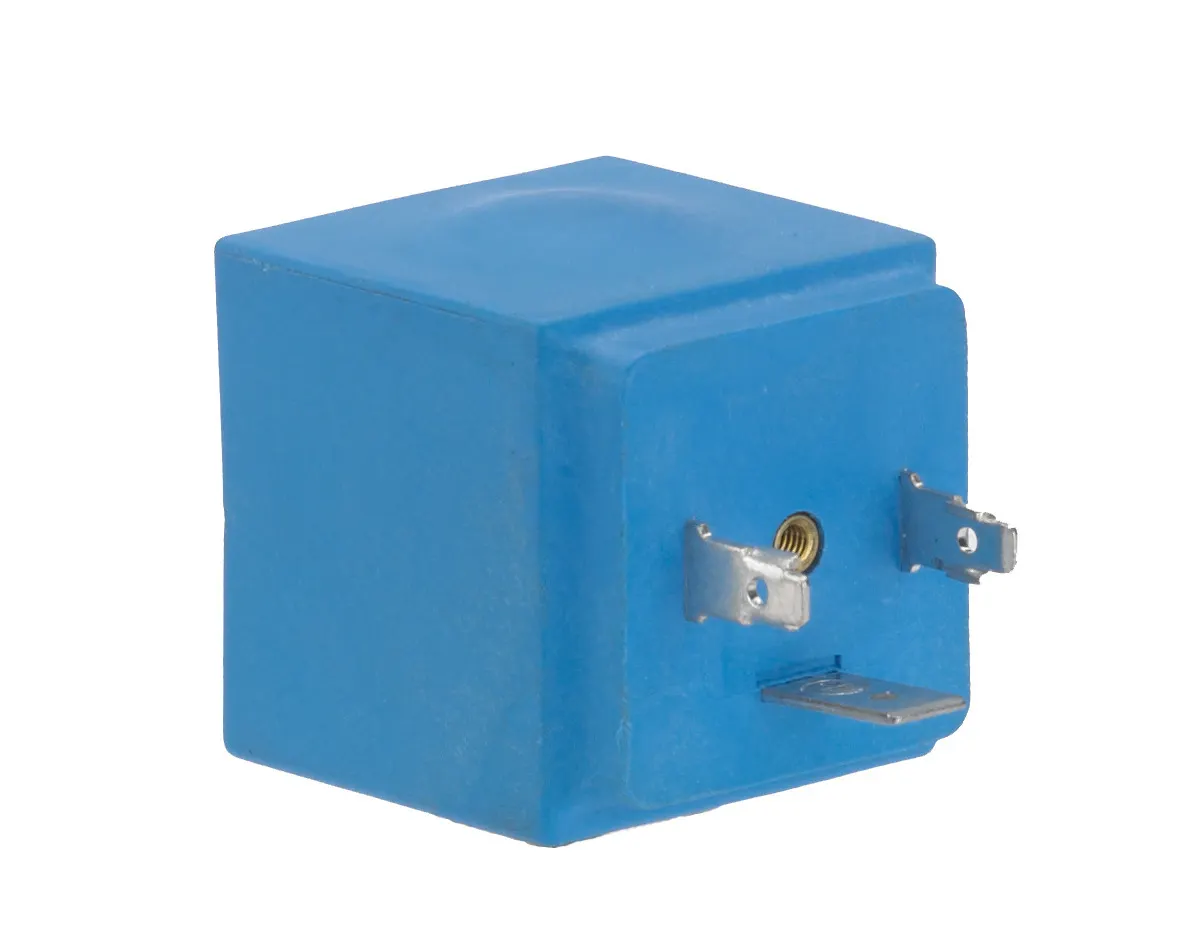

042N8687 Danfoss: Electrical connection: DIN Spade, Enclosure rating IP: IP00
Gross weight
0.126 Kilogram
Net weight
0.118 Kilogram
Volume
0.156 Liter
EAN
5702428042307
Actuator size
9 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Coil connection
DIN Spade
Coil fastening
Clip-on
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
Identical product
042N7687
In scope of WEEE
Yes
Packing format
Industrial pack
Parts Program name
EV220W
Power consumption [W] DC
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
40 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage [V] DC
24 V
Type
AS024D
Type designation
AS024D
