042U495032

Part Number: 042U495032
042U495032
Manufacturer
Danfoss
Part number
042U495032
Category

Product Information

Extended Description

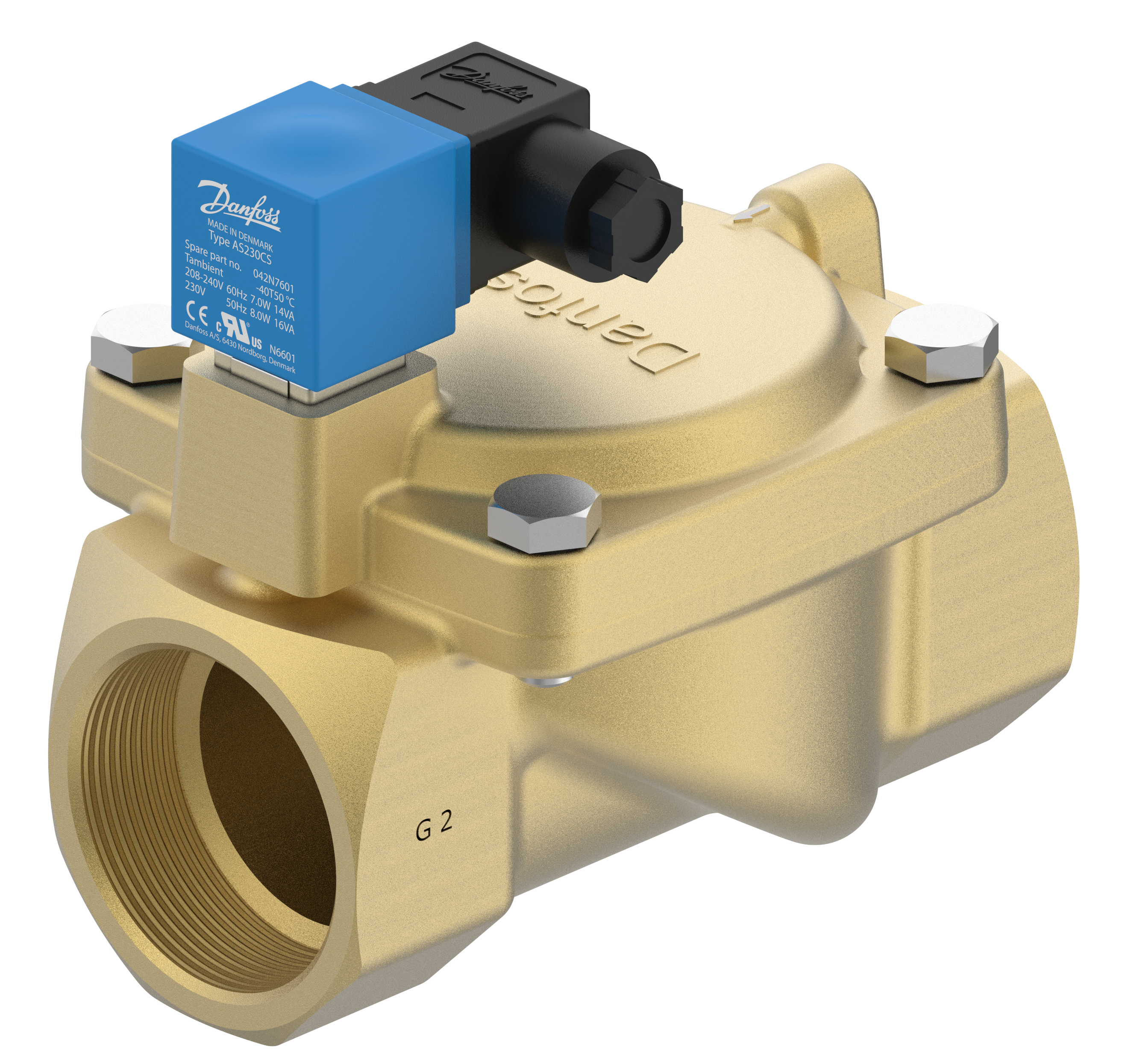

042U495032 Danfoss: Media recommendations: Water & Brine, Approval: CE; c UL us; WRAS, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
4.786 Kilogram
Net weight
4.738 Kilogram
Volume
7.334 Cubic decimeter
EAN
5715162594551
Actuator
S
Actuator size
9 mm clip-on S
Actuator size [in]
0.35 in
Actuator system [mm]
9 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Open
Approval
CE,WRAS,c UL us
Body material
Brass
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil option
Clip-on
Coil type
AS
Connection Internal/External
Internal
Connection material
Brass
Connection size [in]
2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
37 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
Electrical connection
Spade DIN 43650-A
Enclosure rating IP
IP65
Est. time to close, water [ms]
10000 ms
Est. time to open, water [ms]
5000 ms
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Frequency [Hz]
50/60 Hz
Function
NC
Kv value [m³/h]
32 m³/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Water & Brine
Media tolerance comments
Neutral media
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
212 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
50 mm
Orifice size fraction [in]
2 in
Packing format
Single pack
Parts Program name
EV220S
Power consumption [W] 50Hz
8 W
Power consumption [W] 60Hz
7 W
Product accessories
Solenoid coil accessories,Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name
EV220S
Seal Material
EPDM
Serviceable
No
Specification key
EV220S 50B G 2E NC000 AS230CS
Supply voltage 50Hz Max [V]
230 V
Supply voltage 60Hz Max [V]
240 V
Supply voltage 60Hz Min [V]
208 V
Supply voltage [V] AC
230 V
Type
EV220S
Type designation
EV220S 50
UK RoHS compliance
Out of scope
UL evaluated
Yes
042U2096
Spare part, EV220S/W 6.0 - 50 EPDM NC, Service kit
042U2118
Spare part, EV220S/W 50 EPDM, Service kit
042N7601
Solenoid coil, AS230CS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
