042U6003

Part Number: 042U6003
042U6003
Manufacturer
Danfoss
Part number
042U6003
Category

Product Information

Extended Description

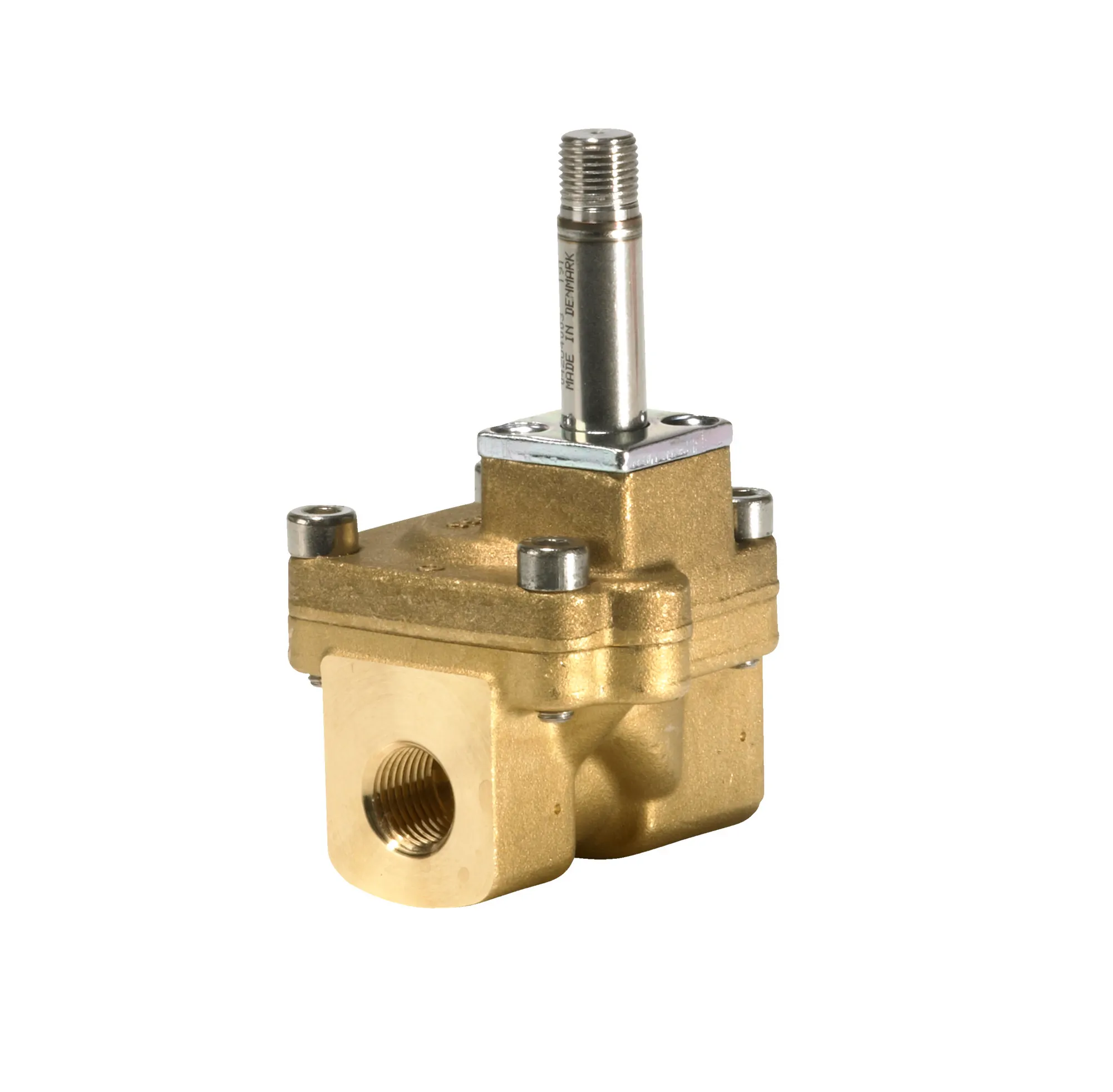

042U6003 Danfoss: Media recommendations: Water,Brine,Oil,Air, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
0.552 Kilogram
Net weight
0.538 Kilogram
Volume
0.338 Liter
EAN
5702423139712
Actuator
A
Actuator size
9 mm
Actuator size [in]
0.35 in
Actuator system [mm]
9 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Open
Body material
Brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Brass
Connection size [in]
1/4
Connection standard
ANSI/ASME B1.20.1
Connection type
NPT
Contain batteries
No
Cv value [gal/min]
1.16 gal/min
Differential pressure [bar] [max]
16 bar
Differential pressure [bar] [min]
0.2 bar
Differential pressure [psi] [max]
232 psi
Differential pressure [psi] [min]
2.9 psi
Est. time to close, water [ms]
250 ms
Est. time to open, water [ms]
40 ms
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NC
Kv value [m³/h]
1 m³/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
24 bar
Max. test pressure [psig]
348 psig
Max. Working Pressure [bar]
16 bar
Max. Working Pressure [psig]
232 psig
Media recommendations
Water,Brine,Oil,Air
Media tolerance comments
Neutral media
Medium temperature range [°C] [max]
60 °C
Medium temperature range [°C] [min]
-10 °C
Medium temperature range [°F] [max]
140 °F
Medium temperature range [°F] [min]
14 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
6 mm
Orifice size fraction [in]
1/4 in
Packing format
Multi pack
Parts Program name
EV220A
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
481e69a1-f151-484d-b74f-362eac5dc9de
SCIP dossier product name
Valve EV220A
Seal Material
NBR
Serviceable
Solenoid valve spare parts
Specification key
EV220A 6B N 14N NC000
Type
EV220A
Type designation
EV220A 6
UK RoHS compliance
Out of scope
Solenoid valve Type EV220A Danfoss EU 033F0682.AA Danfoss EU 033F0683.04 Danfoss EU 033F0683.05 Solenoid valves – Polymer, Bronze, Brass, Cast iron WRAS 2109045 Danfoss MD 033F0232.AA Danfoss MD 033F1140.01 UL MH7648 EV220A Solenoid valve without coil, G 1/4 NC brass Dimensions for Solenoid valve EV220A 6B NC
