042U6112

Part Number: 042U6112
042U6112
Manufacturer
Danfoss
Part number
042U6112
Category

Product Information

Extended Description

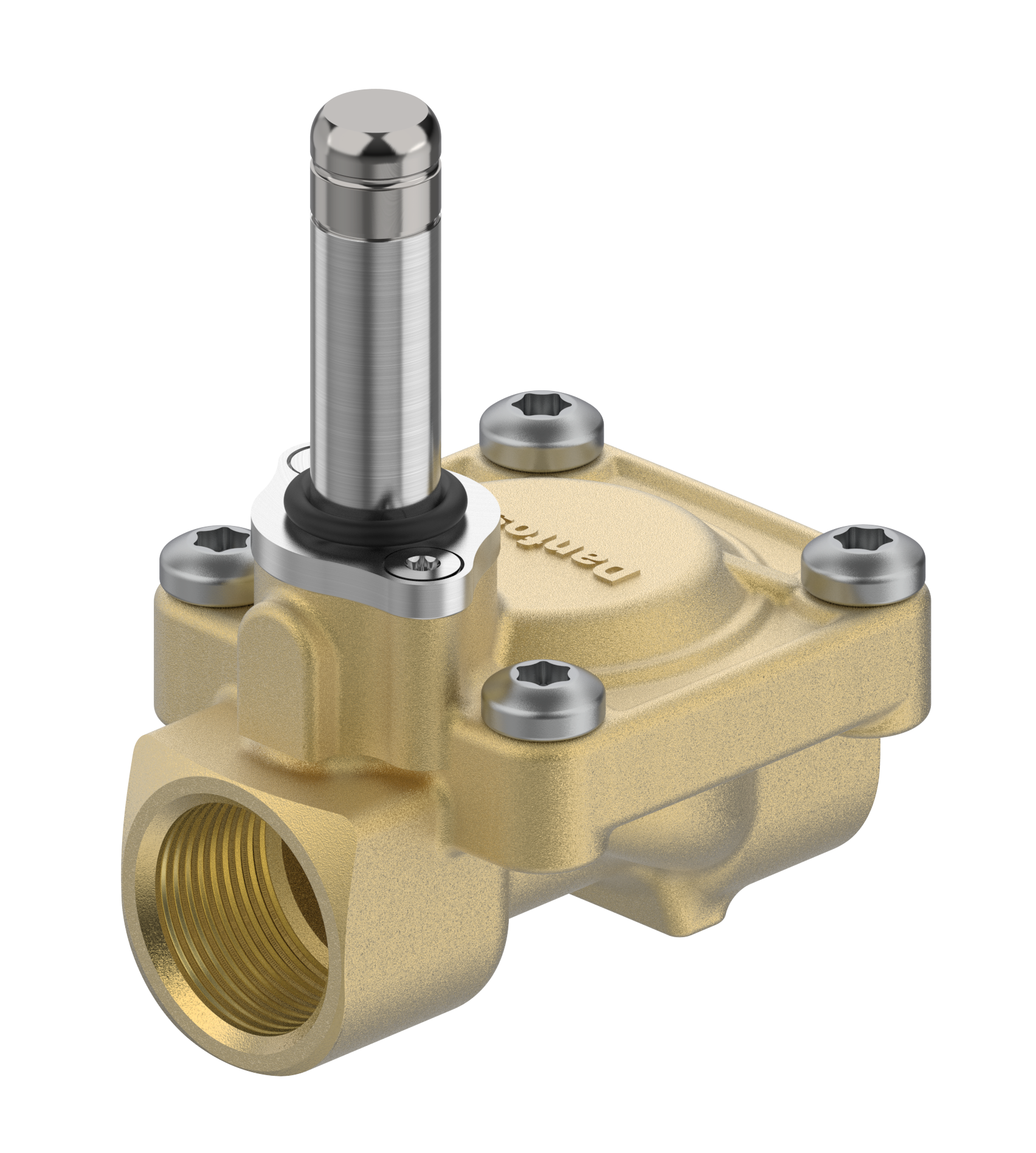

042U6112 Danfoss: Media recommendations: Oil,Comp.Air,Vacuum, Approval: c UL us, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
0.28 Kilogram
Net weight
0.264 Kilogram
Volume
0.338 Cubic decimeter
EAN
5715162500125
Actuator
S
Actuator size
9 mm clip-on S
Actuator size [in]
0.35 in
Actuator system [mm]
9 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Open
Approval
c UL us
Body material
Brass
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Brass
Connection size [in]
1/2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
1.85 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.2 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
2.9 psi
Est. time to close, water [ms]
300 ms
Est. time to open, water [ms]
50 ms
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NO
Kv value [mÂł/h]
3 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Oil,Comp.Air,Vacuum
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
212 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
13 mm
Orifice size fraction [in]
1/2 in
Packing format
Multi pack
Parts Program name
EV220S
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name
EV220S
Seal Material
FKM
Serviceable
No
Specification key
EV220S 10B G 12F NO000
Type
EV220S
Type designation
EV220S 10
UK RoHS compliance
Out of scope
UL evaluated
Yes
042U2099
Spare part, EV220S/W 6.0 - 50 FKM/NBR NO, Service kit
042U2107
Spare part, EV220S 13 FKM, Service kit
042N7601
Solenoid coil, AS230CS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
042N7608
Solenoid coil, AS024CS, DIN Spade, Multi pack
042N7616
Solenoid coil, AZ012DS, DIN Spade, Multi pack
042N7617
Solenoid coil, AZ024DS, DIN Spade, Multi pack
