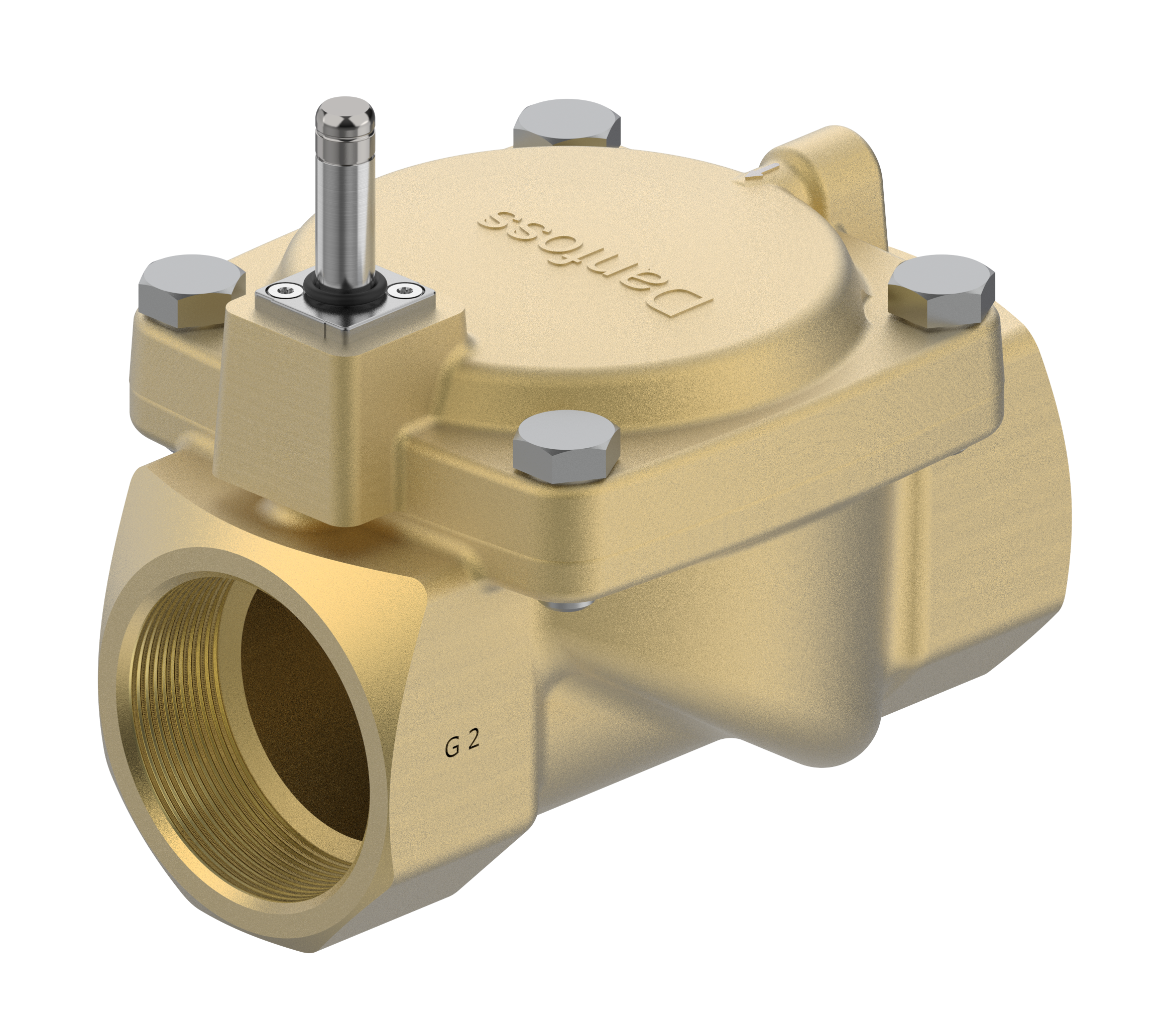

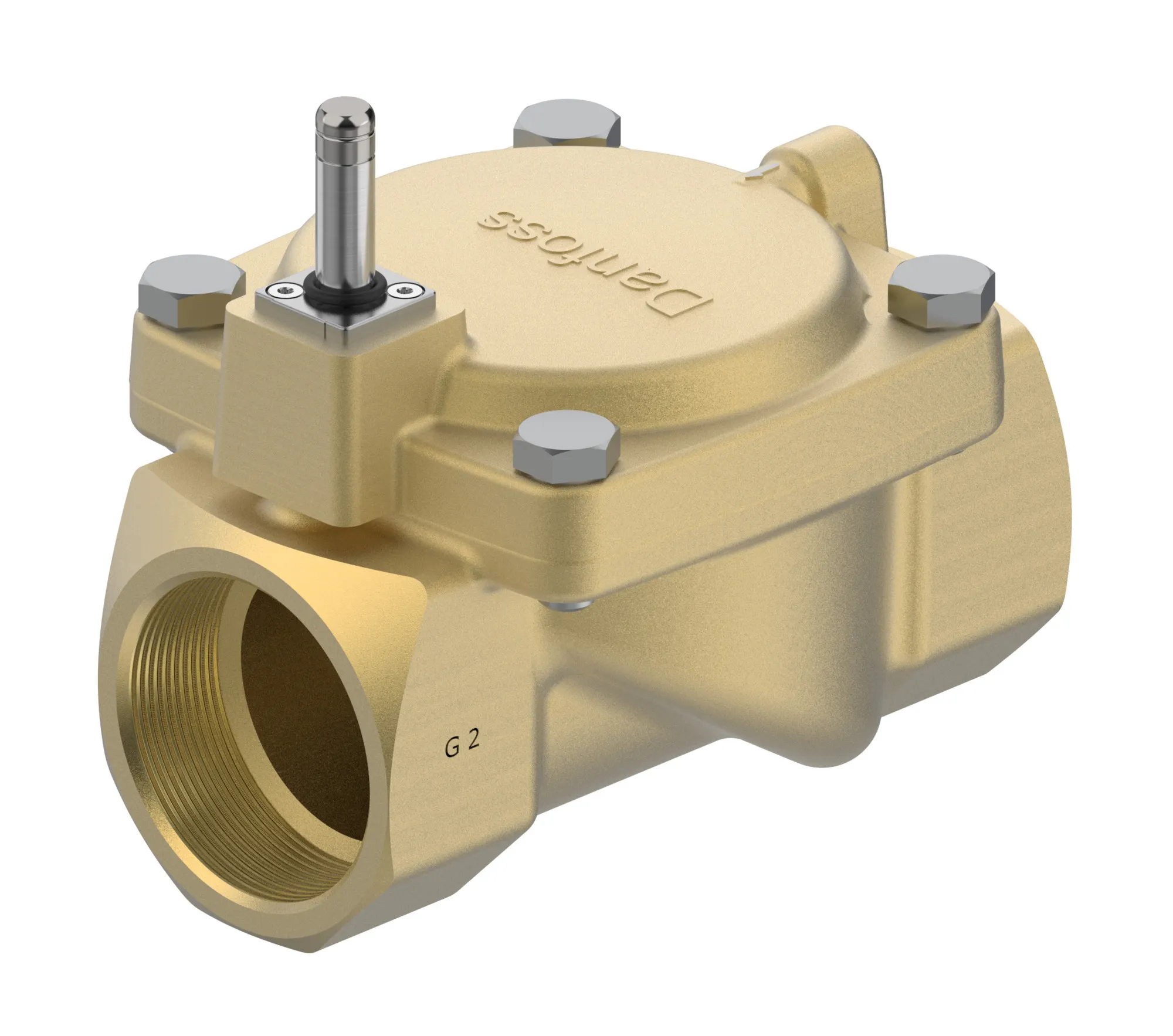

042U6150

Part Number: 042U6150
042U6150
Manufacturer
Danfoss
Part number
042U6150
Category

Product Information

Extended Description

042U6150 Danfoss: Media recommendations: Water & Brine, Approval: CE; UKCA; c UL us; WRAS, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
4.625 Kilogram
Net weight
4.235 Kilogram
Volume
7.334 Cubic decimeter
EAN
5715162525463
Actuator
S
Actuator size
9 mm clip-on S
Actuator size [in]
0.35 in
Actuator system [mm]
9 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Open
Approval
CE,UKCA,WRAS,c UL us
Body material
Brass
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection Internal/External
Internal
Connection material
Brass
Connection size [in]
2
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Cv value [gal/min]
37 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145 psi
Differential pressure [psi] [min]
4.35 psi
Est. time to close, water [ms]
10000 ms
Est. time to open, water [ms]
5000 ms
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1
Function
NO
Kv value [mÂł/h]
32 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
217.5 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Water & Brine
Medium temperature range [°C] [max]
100 °C
Medium temperature range [°C] [min]
-30 °C
Medium temperature range [°F] [max]
212 °F
Medium temperature range [°F] [min]
-22 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
50 mm
Orifice size fraction [in]
2 in
Packing format
Single pack
Parts Program name
EV220S
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
1 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name
EV220S
Seal Material
EPDM
Serviceable
No
Specification key
EV220S 50B G 2E NO000
Type
EV220S
Type designation
EV220S 50
UK RoHS compliance
Out of scope
UL evaluated
Yes
042U2098
Spare part, EV220S/W 6.0 - 50 EPDM NO, Service kit
042U2118
Spare part, EV220S/W 50 EPDM, Service kit
042N7601
Solenoid coil, AS230CS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
042N7608
Solenoid coil, AS024CS, DIN Spade, Multi pack
042N7616
Solenoid coil, AZ012DS, DIN Spade, Multi pack
042N7617
Solenoid coil, AZ024DS, DIN Spade, Multi pack
New Danfoss solenoid valve: A quality product at a competitive price New Danfoss solenoid valve: A very compact high quality product Indirect servo-operated solenoid valve Solenoid valve Type EV220S 10-50 How to use solenoid valves _Making it easy to be efficient New Danfoss solenoid valve: A quality product at a competitive price CB SE-114258 Danfoss EU 033F0682.AA Solenoid valves – Polymer, Bronze, Brass, Cast iron WRAS 2306007 UL MH7648 EV220S 50 G2 U, 14B G12E NC000 AS230CS EV220S_DN10-50_Brass_AS(AZ) Coil_RFA
