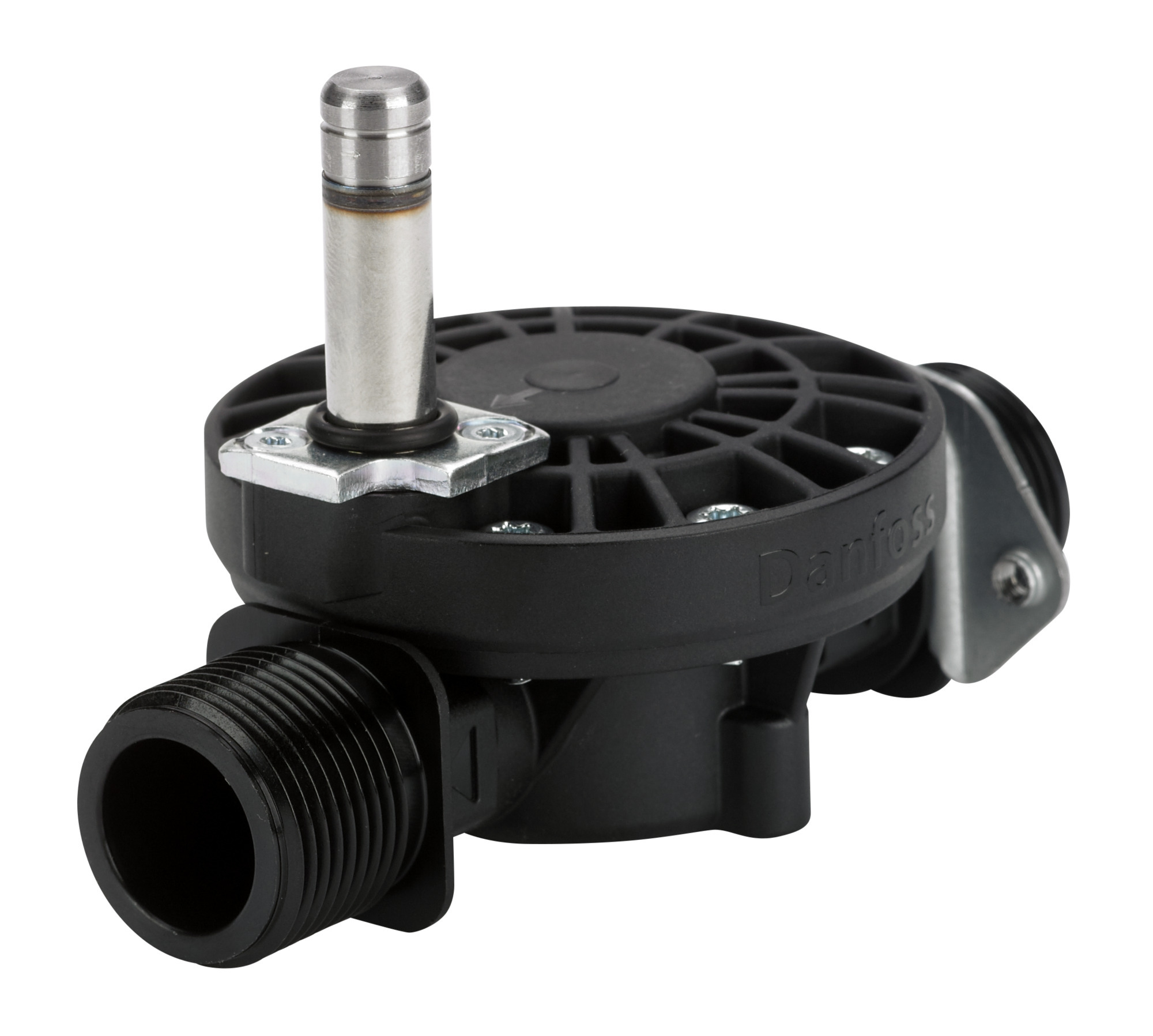

042U8125
Part Number: 042U8125
Product Information
Extended Description
042U8125 Danfoss: Media recommendations: Water & Brine, Approval: WRAS, Body material: Polymer, Operation: Servo-operated (diaphragm), Number of ways: 2/2
Gross weight
0.208 Kilogram
Net weight
0.167 Kilogram
Volume
1.295 Liter
EAN
5702428988827
Actuator
T
Actuator size
9 mm clip-on T
Actuator size [in]
0.35 in
Actuator system [mm]
9 mm
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Application
Open
Approval
WRAS
Body material
Polymer
China RoHS compliance
Out of scope
Connection Internal/External
External
Connection material
Polymer
Connection size [in]
3/4
Connection type
G
Contain batteries
No
Cv value [gal/min]
4.6 gal/min
Differential pressure [bar] [max]
10 bar
Differential pressure [bar] [min]
0.3 bar
Differential pressure [psi] [max]
145.038 psi
Differential pressure [psi] [min]
4.351 psi
EEE category
5 small equipment (any external dimension 50 cm)
Est. time to close, water [ms]
400 ms
Est. time to open, water [ms]
100 ms
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Function
NC
In scope of WEEE
Yes
Kv value [mÂł/h]
4 mÂł/h
Max media viscosity [cSt]
50 cSt
Max. test pressure [bar]
15 bar
Max. test pressure [psig]
290 psig
Max. Working Pressure [bar]
10 bar
Max. Working Pressure [psig]
145 psig
Media recommendations
Water & Brine
Medium temperature range [°C] [max]
85 °C
Medium temperature range [°C] [min]
0 °C
Medium temperature range [°F] [max]
185 °F
Medium temperature range [°F] [min]
32 °F
Number of ways
2/2
Operation
Servo-operated (diaphragm)
Orifice size [mm]
14 mm
Orifice size fraction [in]
4/16 in
Packing format
Multi pack
Parts Program name
EV220T
Product accessories
Solenoid valve accessories
Product group
Solenoid valves
Product Name Description
Solenoid valve
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
702da5b9-fdc0-4987-a36b-2f0941b89788
SCIP dossier product name
EV220T- solenoid valve
Seal Material
EPDM
Serviceable
No
Specification key
EV220T 14P GE 34E NC000
Type
EV220T
Type designation
EV220T 14
UK RoHS compliance
Out of scope
042U8199
Spare part, EV220A/EV220T, Service kit
042N7601
Solenoid coil, AS230CS, DIN Spade, Supply voltage [V] AC: 230, Multi pack
042N7608
Solenoid coil, AS024CS, DIN Spade, Multi pack
042N7616
Solenoid coil, AZ012DS, DIN Spade, Multi pack
042N7617
Solenoid coil, AZ024DS, DIN Spade, Multi pack
