052F4045
Part Number: 052F4045
Product Information
Extended Description

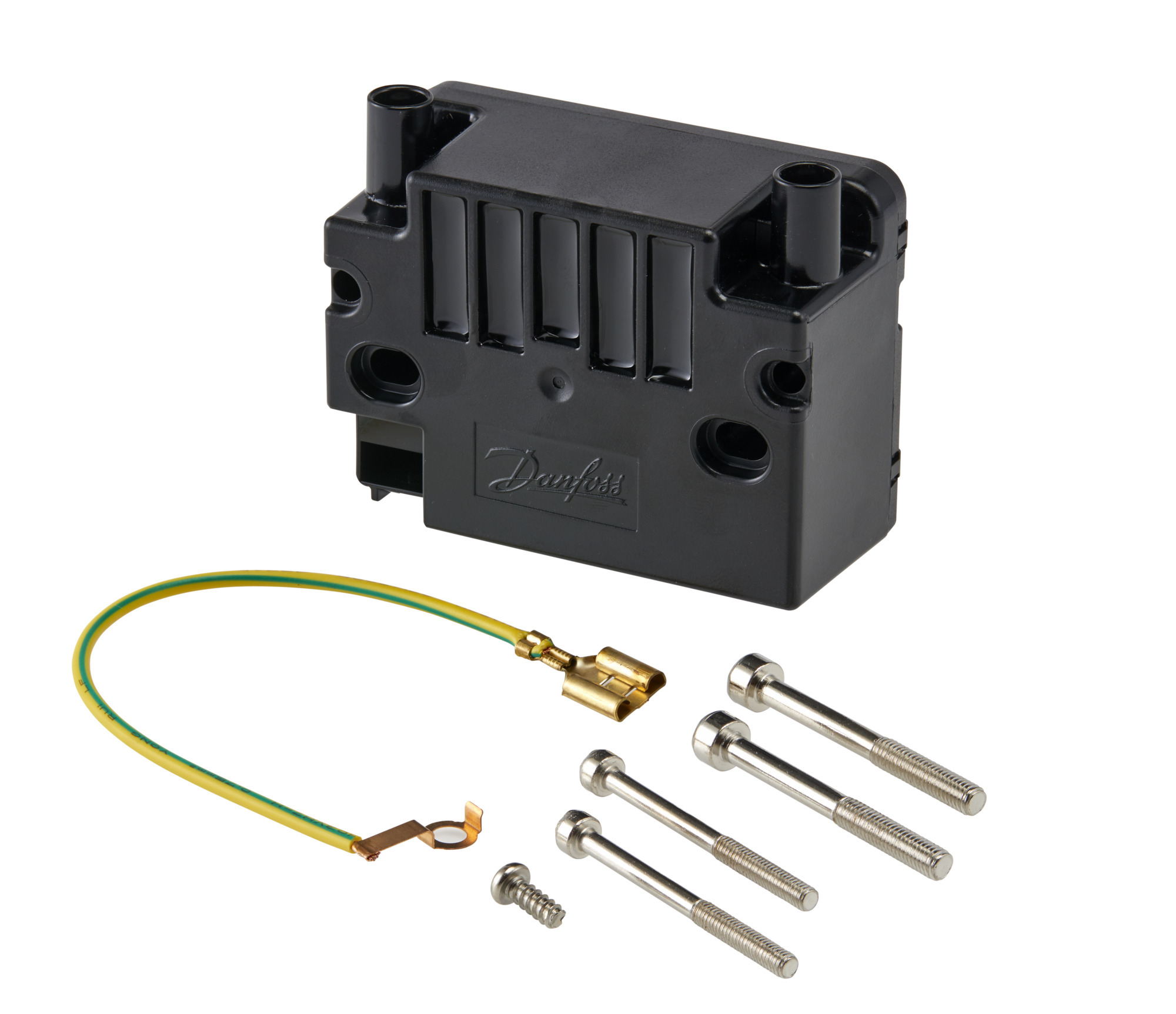

052F4045 Danfoss: EBI4 Service
Gross weight
0.346 Kilogram
Net weight
0.325 Kilogram
Volume
0.402 Liter
EAN
5702425078170
Ambient temperature [°C] [max]
60 °C
Ambient temperature [°C] [min]
-10 °C
Approval
CE,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
EBI4 Service
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c),7(c)-I
Grade of enclosure primary
IP40
Housing
Standard
Main fuse [A] [Min]
10 A
Packing format
Single pack
Power consumption [VA]
90 VA
Primary current [A]
0.4 A
Primary frequency [Hz]
50/60
Product group
Ignition Units
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product name
Ignition unit EB14
Secondary connection, short circuit current [mA]
48 mA
Secondary peak voltage [kV]
2 x 7.5
Storage temperature [°C] [Max]
85 °C
Storage temperature [°C] [Min]
-25 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
255 V
Supply voltage [V] AC [min]
187 V
Type
EBI4 M S
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18,21
UL evaluated
Out of scope
052F0060
BUSH FOR IGNITION UNIT TYPE EBI
052F0064
BUSH AND PLUG FOR IGNITION UNIT TYPE EBI
052F0067
BUSH FOR IGNITION UNIT TYPE EBI
052F5050
EBI CABLE L=300
052F5051
EBI CABLE L=400
052F5052
EBI CABLE L=750
052F5054
EBI CABLE L=500
052F5056
EBI CABLE L=200
052F5057
EBI CABLE L=3000
052F5070
EBI CABLE L=2000
052F5079
EBI CABLE L=1000
