052F4235

Part Number: 052F4235
052F4235
Manufacturer
Danfoss
Part number
052F4235
Category

Product Information

Extended Description

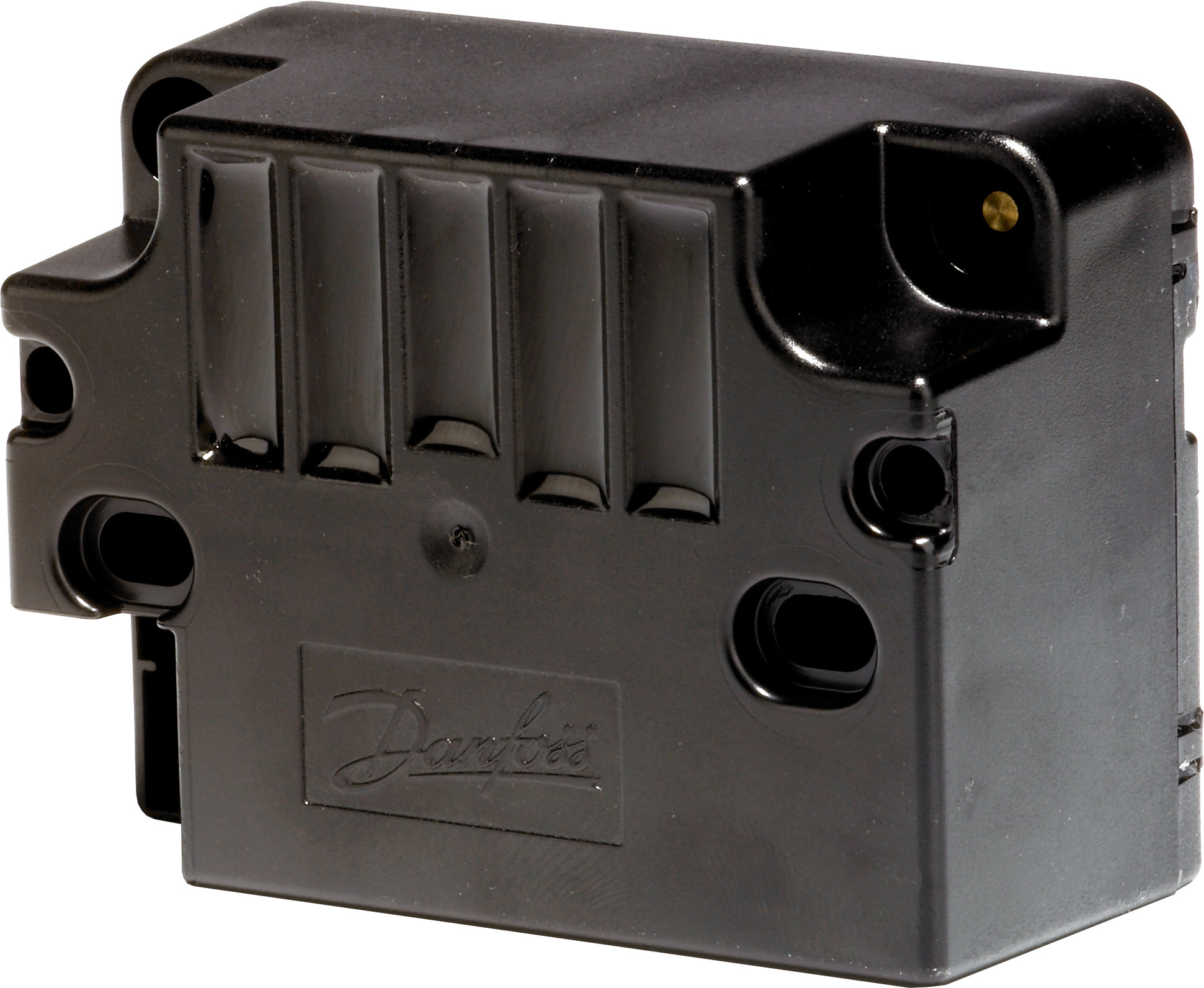

052F4235 Danfoss: EBI4CM SPECIAL HOUSING IGNITION UNIT 230 V OEM
Gross weight
0.305 Kilogram
Net weight
0.304 Kilogram
Volume
0.281 Liter
EAN
5702425074882
Ambient temperature [°C] [max]
60 °C
Ambient temperature [°C] [min]
-10 °C
Approval
CE,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
EBI4CM SPECIAL HOUSING IGNITION UNIT 230 V OEM
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c),7(c)-I
Grade of enclosure primary
IP40
Housing
Special
Main fuse [A] [Min]
10 A
Packing format
Industrial pack
Power consumption [VA]
60 VA
Primary current [A]
0.25 A
Primary frequency [Hz]
50/60
Product group
Ignition Units
Quantity per packing format
40 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product name
Ignition unit EB14
Secondary connection, short circuit current [mA]
30 mA
Secondary peak voltage [kV]
2 x 7.5
Storage temperature [°C] [Max]
85 °C
Storage temperature [°C] [Min]
-25 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
255 V
Supply voltage [V] AC [min]
187 V
Type
EBI4 CM
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18,21
UL evaluated
Out of scope
052F0060
BUSH FOR IGNITION UNIT TYPE EBI
052F0064
BUSH AND PLUG FOR IGNITION UNIT TYPE EBI
052F0067
BUSH FOR IGNITION UNIT TYPE EBI
052F0130
EBI CABLE, 300 mm. SPECIAL HOUSING
052F0132
EBI CABLE, 320 mm. SPECIAL HOUSING
052F0134
EBI CABLE, 313 mm. SPECIAL HOUSING
052F0136
EBI CABLE, 800 mm. SPECIAL HOUSING
052F0151
EBI CABEL 500 mm. SPECIAL HOUSING
052F0153
EBI CABLE 1000mm. SPECIAL HOUSING
052F2130
EBI CABLE, 300 mm. SPECIAL HOUSING
