052F4240

Part Number: 052F4240
052F4240
Manufacturer
Danfoss
Part number
052F4240
Category

Product Information

Extended Description

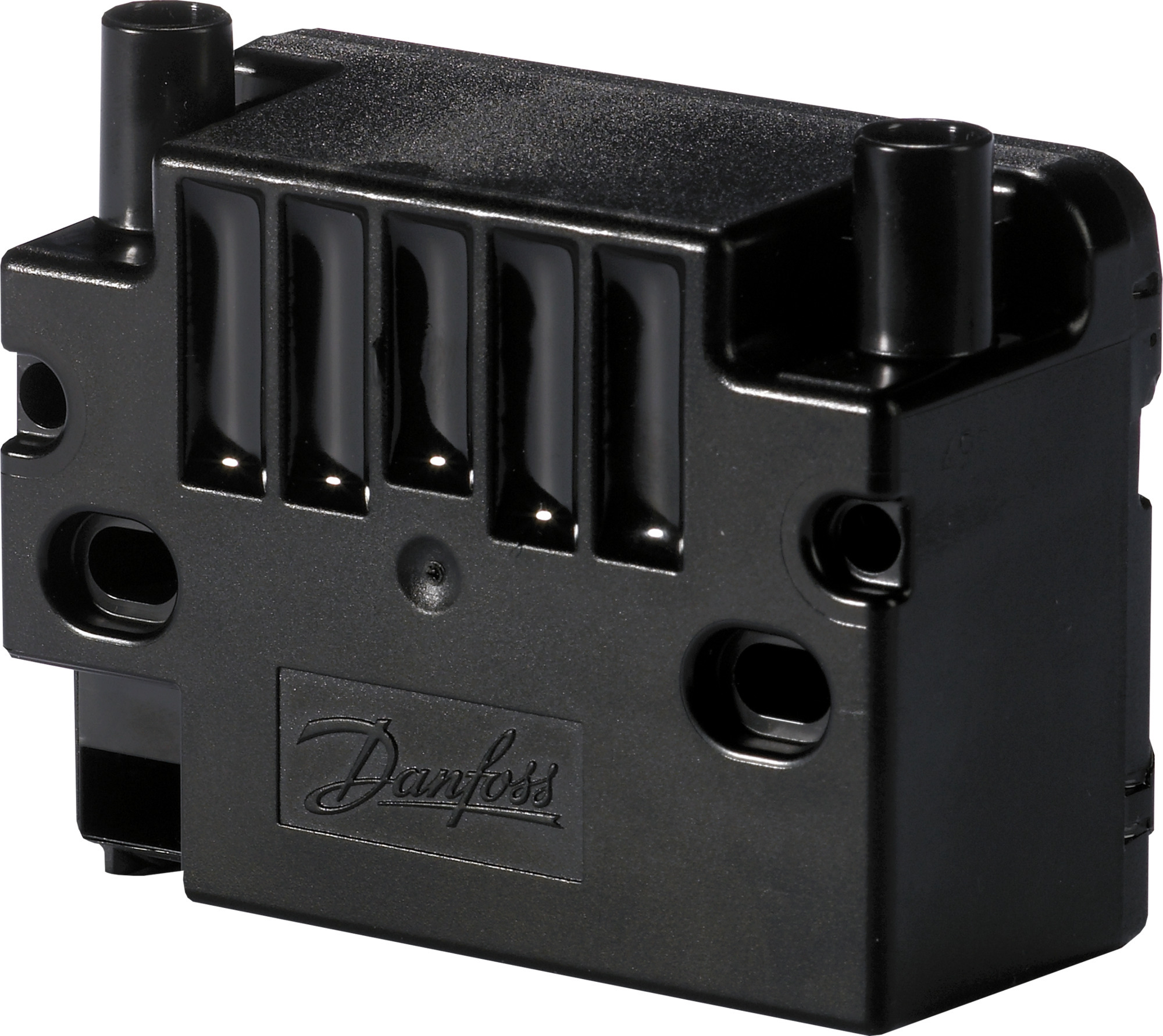

052F4240 Danfoss: EBI4 1P STD. IGNITION UNIT 230 V OEM
Gross weight
0.235 Kilogram
Net weight
0.234 Kilogram
Volume
0.281 Liter
EAN
5702425074769
Ambient temperature [°C] [max]
60 °C
Ambient temperature [°C] [min]
-10 °C
Approval
CE,UKCA,UL
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
EBI4 1P STD. IGNITION UNIT 230 V OEM
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c),7(c)-I
Grade of enclosure primary
IP40
Housing
Standard
Main fuse [A] [Min]
10 A
Packing format
Industrial pack
Power consumption [VA]
60 VA
Primary current [A]
0.25 A
Primary frequency [Hz]
50/60
Product group
Ignition Units
Quantity per packing format
40 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product name
Ignition unit EB14
Secondary connection, short circuit current [mA]
40 mA
Secondary peak voltage [kV]
12
Storage temperature [°C] [Max]
85 °C
Storage temperature [°C] [Min]
-25 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
255 V
Supply voltage [V] AC [min]
187 V
Type
EBI4 1P
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18,21
UL evaluated
Yes
052F0060
BUSH FOR IGNITION UNIT TYPE EBI
052F0064
BUSH AND PLUG FOR IGNITION UNIT TYPE EBI
052F0067
BUSH FOR IGNITION UNIT TYPE EBI
052F5037
EARTH CABLE
052F5050
EBI CABLE L=300
052F5051
EBI CABLE L=400
052F5052
EBI CABLE L=750
052F5054
EBI CABLE L=500
052F5056
EBI CABLE L=200
052F5057
EBI CABLE L=3000
Electronic Ignition Unit EBI4 Series Electronic Ignition Unit EBI4 Series Electronic Ignition Unit EBI Service Kit Service Manual Danfoss Burner Components Service Handbook Danfoss Burner Components Danfoss EU-UK 052F.07 Ignition units Danfoss MD MA 052F.08 EBI4 1P 052F4032 EBI4 1P 052F4032 EBI4 1P 052F4032
