052F4265

Part Number: 052F4265
052F4265
Manufacturer
Danfoss
Part number
052F4265
Category

Product Information

Extended Description

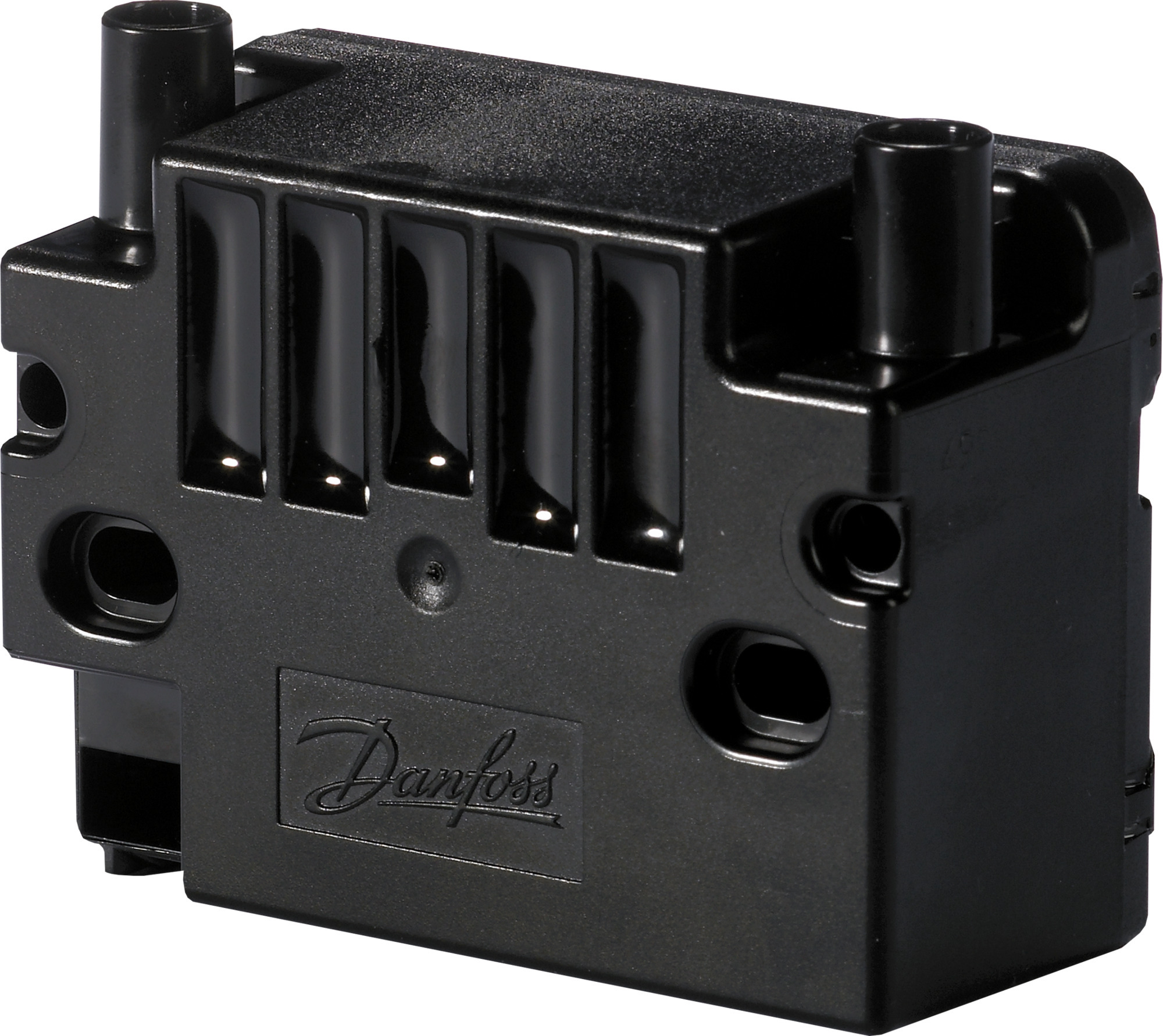

052F4265 Danfoss: EBI4 M STD. STD. IGNITION UNIT 230 V OEM
Gross weight
0.249 Kilogram
Net weight
0.236 Kilogram
Volume
0.283 Liter
EAN
5702425120602
Ambient temperature [°C] [max]
60 °C
Ambient temperature [°C] [min]
-10 °C
Approval
CE,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Description
EBI4 M STD. STD. IGNITION UNIT 230 V OEM
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c),7(c)-I
Grade of enclosure primary
IP40
Housing
Standard
Main fuse [A] [Min]
10 A
Packing format
Industrial pack
Power consumption [VA]
60 VA
Primary current [A]
0.25 A
Primary frequency [Hz]
50/60
Product group
Ignition Units
Quantity per packing format
40 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
27c02f0b-4bf3-4159-b23b-0589ec23470c
SCIP dossier product name
Ignition unit EBI4 1P
Secondary connection, short circuit current [mA]
40 mA
Secondary peak voltage [kV]
2 x 7.5
Storage temperature [°C] [Max]
85 °C
Storage temperature [°C] [Min]
-25 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
255 V
Supply voltage [V] AC [min]
187 V
Type
EBI4 M
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
18,21
UL evaluated
Out of scope
052F0060
BUSH FOR IGNITION UNIT TYPE EBI
052F0064
BUSH AND PLUG FOR IGNITION UNIT TYPE EBI
052F0067
BUSH FOR IGNITION UNIT TYPE EBI
052F0130
EBI CABLE, 300 mm. SPECIAL HOUSING
052F5037
EARTH CABLE
052F5050
EBI CABLE L=300
052F5051
EBI CABLE L=400
052F5052
EBI CABLE L=750
052F5054
EBI CABLE L=500
052F5056
EBI CABLE L=200
