060-001366

Part Number: 060-001366
060-001366
Manufacturer
Danfoss
Part number
060-001366
Category

Product Information

Extended Description

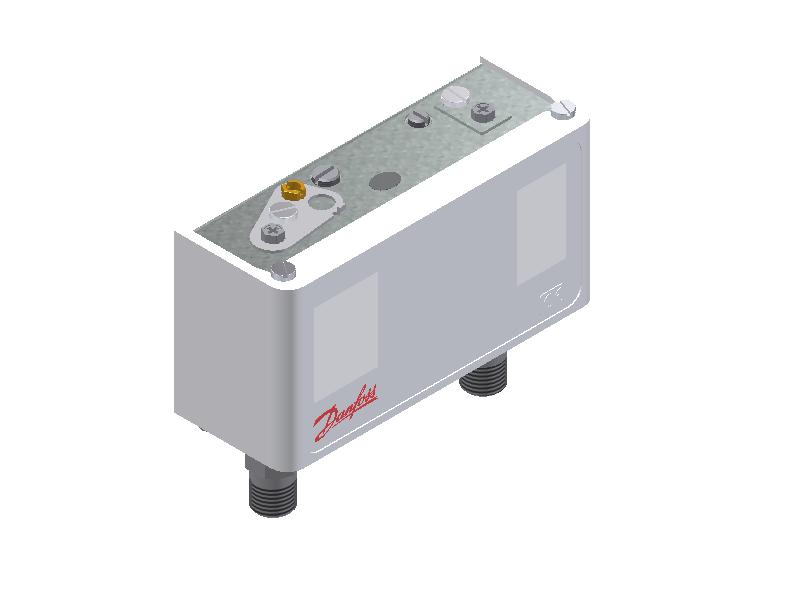

060-001366 Danfoss: Regulation left side [bar]Pe: 2.00 - 12.00, Regulation right side [bar]Pe: 0.5 - 6.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 1.0, Contact function: SPST(NO)+SPST(NC), Reset function, left side: Auto, Reset function, right side: Auto
Gross weight
0.572 Kilogram
Net weight
0.52 Kilogram
Volume
1.281 Liter
EAN
5702423148592
Amb. Temp. Note
80 =C2=B0C/176 =C2=B0F for max 120 min
Ambient temperature range [=C2=B0C] [max]
65 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-40 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
149 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-40 =C2=B0F
Approval
CCC,CE,CMIM,EAC,LLC CDC EURO-TYSK,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPST(NO)+SPST(NC)
Contact rating
AC15=3D10 A, 400 V,AC1=3D16 A, 400 V,AC3=3D16 A, 400 V,DC13=3D12 W, 220 V,LR=3D112 A, 400 V
Contain batteries
No
Differential left side [bar] [max]
4 bar
Differential left side [bar] [min]
0.7 bar
Differential left side [psi] [max]
58 psi
Differential left side [psi] [min]
10 psi
Differential right side [bar]
1 bar
Differential right side [psi]
14.5 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP22
Enclosure rating Nema (~)
2
EU RoHS compliance
Yes
EU RoHS exemption clause
No
In scope of WEEE
Yes
Max.test press.left side[bar]
25 bar
Max.test press.right side[bar]
19 bar
MWP left side [bar] Pe
17 bar
MWP left side [psig] Pe
245 psig
MWP right side [bar] Pe
17 bar
MWP right side [psig] Pe
245 psig
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Dual Pressure Control
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation left side [bar]Pe [max]
12 bar
Regulation left side [bar]Pe [min]
2 bar
Regulation left side [psig]Pe [max]
174 psig
Regulation left side [psig]Pe [min]
29 psig
Regulation right side [bar]Pe [max]
6 bar
Regulation right side [bar]Pe [min]
0.5 bar
Regulation right side [psig]Pe [max]
87 psig
Regulation right side [psig]Pe [min]
7 psig
Reset function, left side
Auto
Reset function, right side
Auto
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
Serviceable
No
Type
KP44
UK RoHS compliance
Yes
UL approval file name
E31024
UL evaluated
Yes
060-003266
Switches accessories, Protective Cap For KP Dual
060-018966
Switches accessories, Locking Plate With Screws
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-105766
Switches accessories, Sealing Screw
060-105966
Switches accessories, Screwed Cable Entry With Nut
060-109866
Switches accessories, Top Plate For KP Dual
060-324066
Switches accessories, Transition Nipple
060-333266
Switches accessories, Transition Nipple
060-333866
Switches accessories, Transition Nipple
