060-116066

Part Number: 060-116066
060-116066
Manufacturer
Danfoss
Part number
060-116066
Category

Product Information

Extended Description

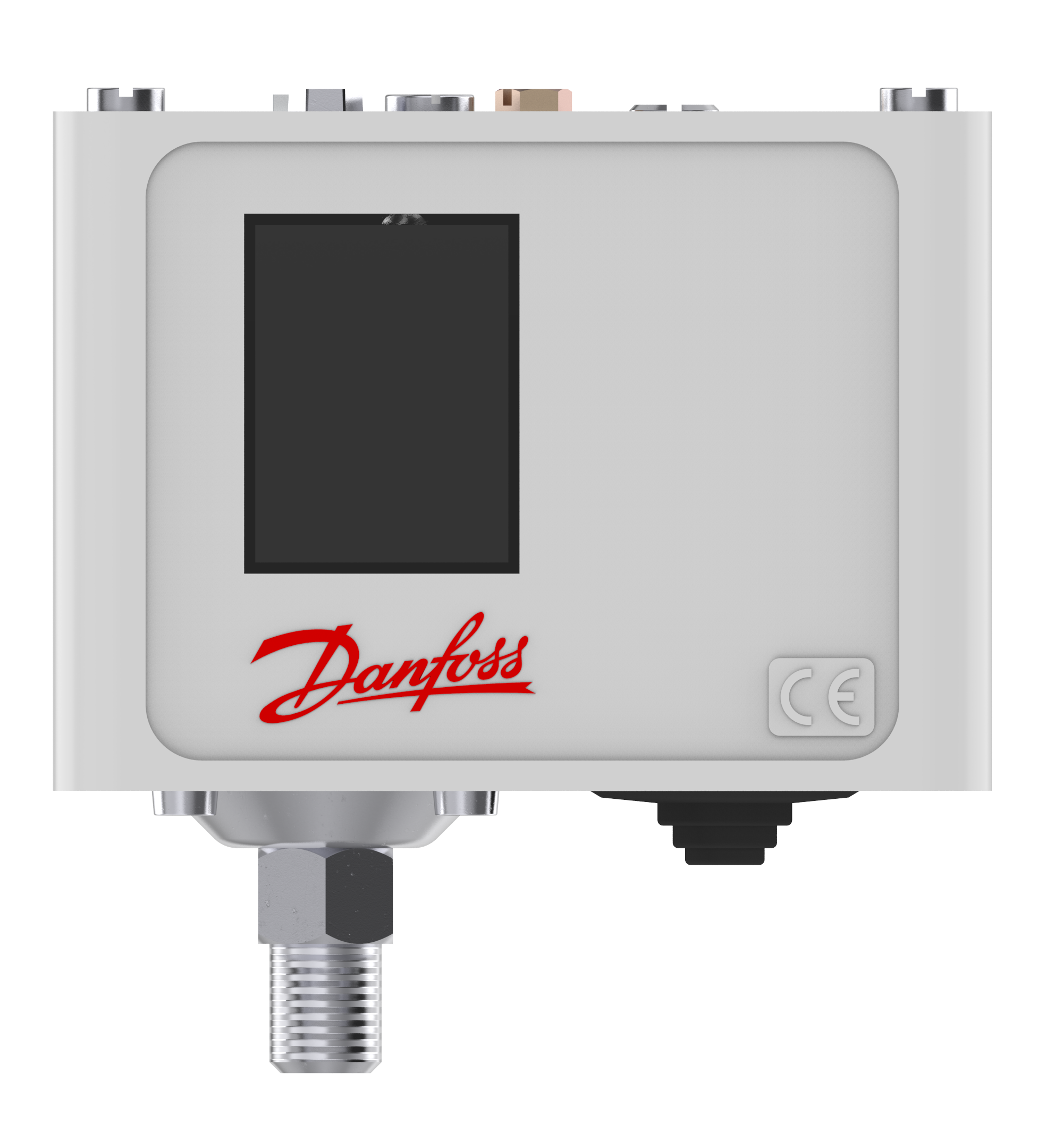

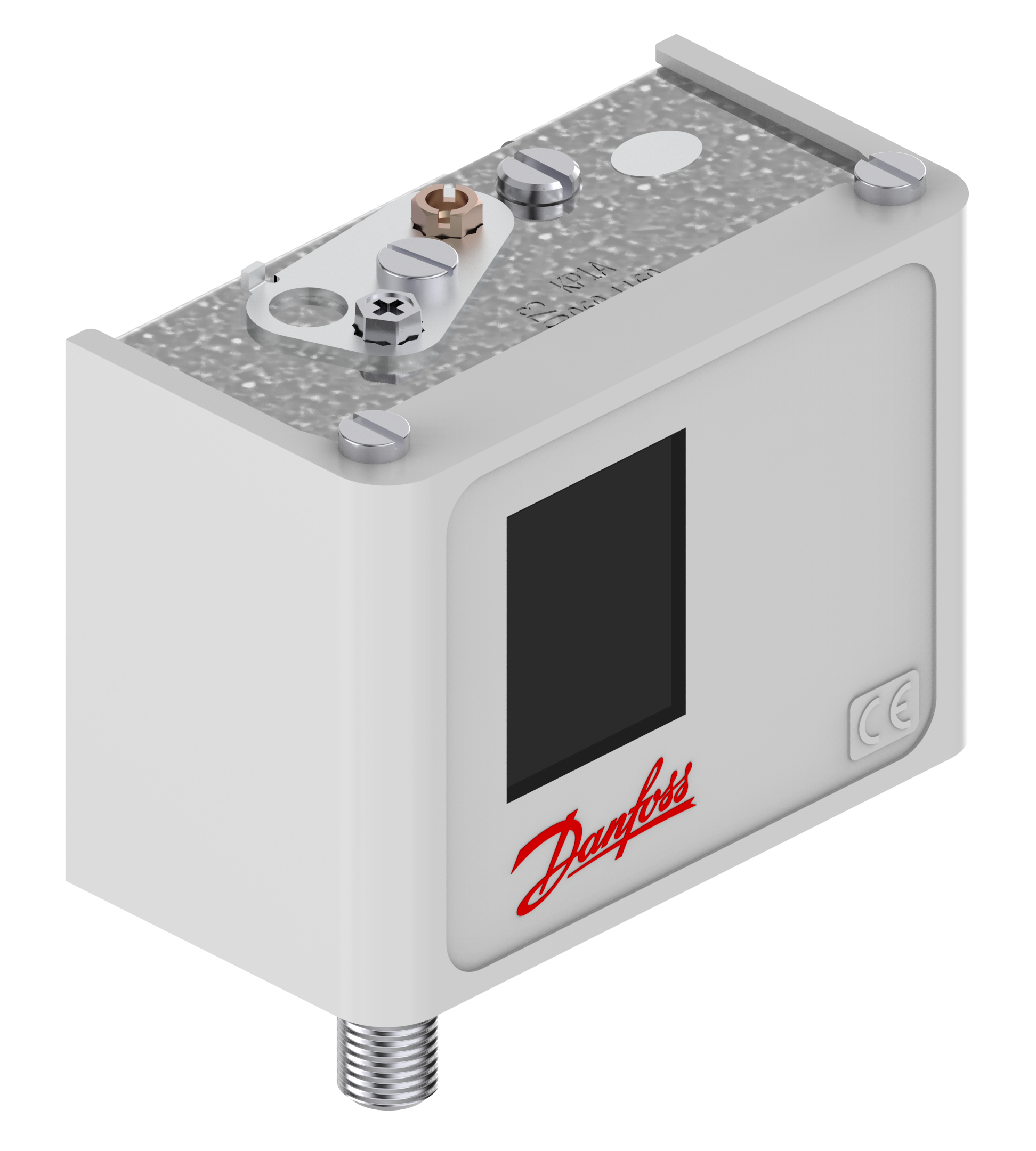

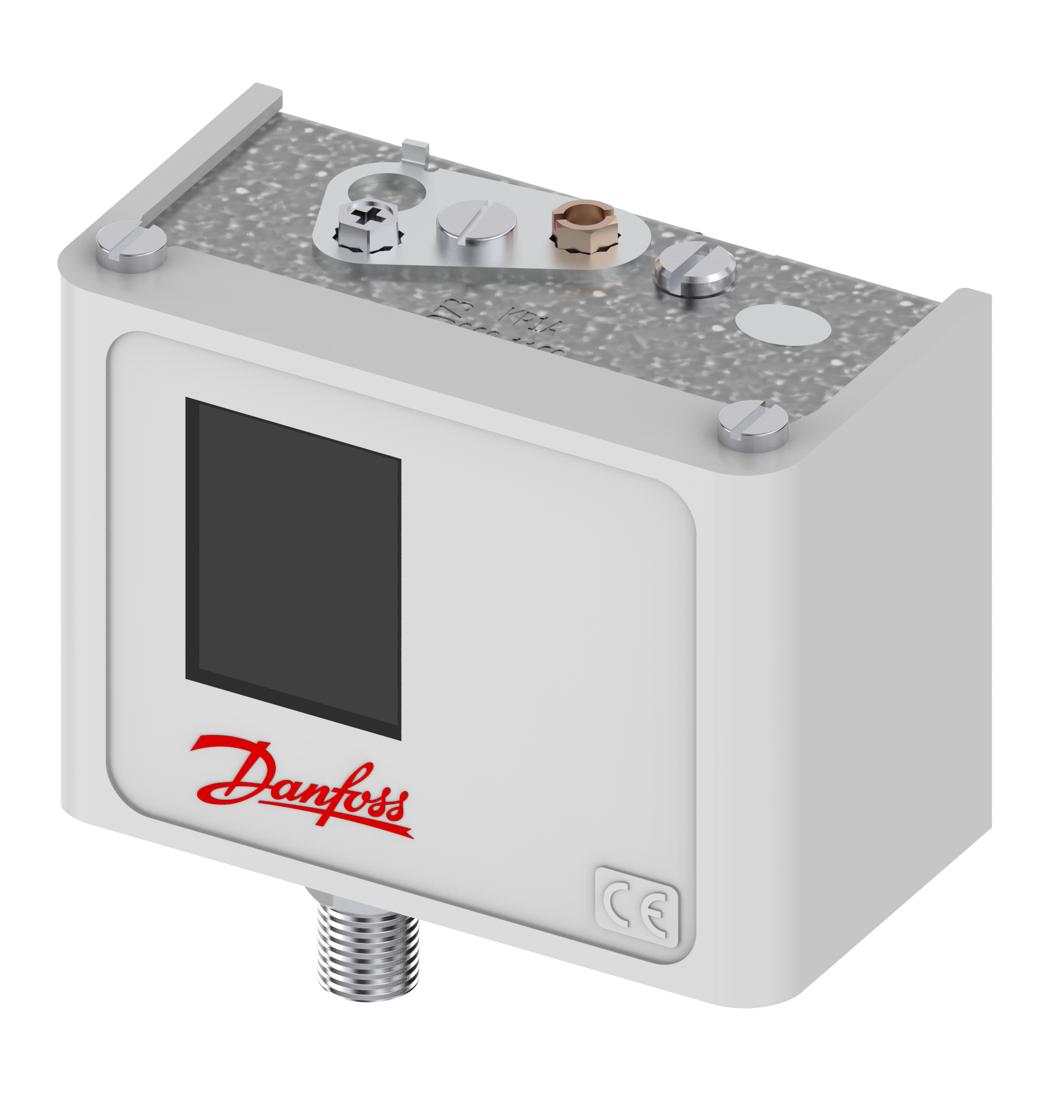

060-116066 Danfoss: Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: M, Pressure connection size: 10 x 0.75, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 17.0
Gross weight
0.475 Kilogram
Net weight
0.431 Kilogram
Volume
1.468 Liter
EAN
5702428011808
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Application note
Not applicable for liquid line
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential [bar] [max]
4 bar
Differential [bar] [min]
0.7 bar
Differential [psi] [max]
58 psi
Differential [psi] [min]
10 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
20 bar
Max. test pressure [psig]
290 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Multi pack
PED category
IV
Pressure connection size
10 x 0.75
Pressure connection standard
ISO 261
Pressure connection type
M
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
14 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B,R717
Regulation range
6 inHg - 108 psig
Regulation range [bar] Pe [max]
7.5 bar
Regulation range [bar] Pe [min]
-0.2 bar
Reset function
Auto
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Serviceable
No
Type
KP1A
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B,R717
UL evaluated
Yes
017-420566
Switches accessories, Reducing Nipple
060-005766
Switches accessories, Welding Nipple
060-008266
Switches accessories, Capillary Tube
060-008666
Switches accessories, Cover For KP Single
060-014166
Switches accessories, Nipple For Adoption
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-105766
Switches accessories, Sealing Screw
060-333866
Switches accessories, Transition Nipple
Switches and thermostats - Industrial Refrigeration product group catalogue Pressure switch, type KP Accessories for KP pressure switches: metal joint, thread connector Pressure switch, KP 1, KP 1W, KP 1A, KP 2, KP 4, KP 5, KP 5A, KP 6W, KP 6B, KP 6S, KP 6AW, KP 6AB, KP 6AS, KP 7W, KP 7B, KP 7S Danfoss CCC 2024010305641303 Danfoss CCC 2024010305686618 Danfoss EU 060-9653.AK Pressure switches & Thermostats BV SMS.W.II-2179-C.0 BV 03650-K0 BV DNV GL TAA00001VZ Rev. 1 LR21358064TA TĂśV 01 202 969/B-22-0003_01 TĂśV 0879-PESR-B(P)-21484-2-DE KP1A Pressure Switch M/14, WEB060-8045 KP1A Pressure Switch M/14, WEB060-8045 KP 1A, KP 5A with M10 Ă— 0.75 connection KP1A Pressure Switch M/14, WEB060-8045
