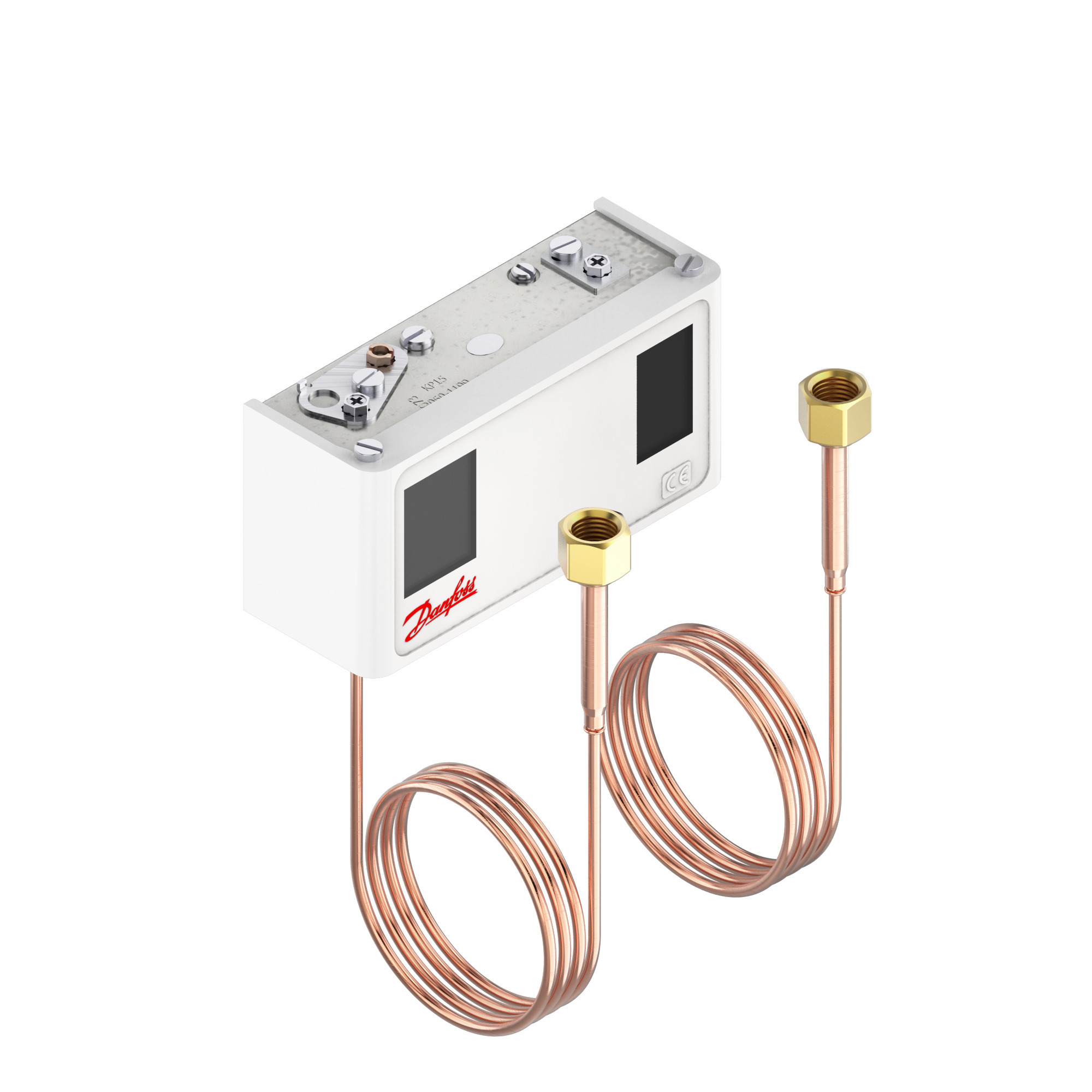

060-119966

Part Number: 060-119966

Manufacturer

Danfoss

Part number

060-119966

Product Information

Extended Description

060-119966 Danfoss: Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT, Reset function, left side: Auto

Gross weight

0.806 Kilogram

Net weight

0.744 Kilogram

Volume

1.281 Liter

EAN

5702428517140

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-40 °F

Application note

Not applicable for liquid line

Approval

BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2

Cap. tube length fraction [in]

36 in

Capillary tube length [mm]

900 mm

CE evaluated

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V

Contain batteries

Differential left side [bar] [max]

4 bar

Differential left side [bar] [min]

0.7 bar

Differential left side [psi] [max]

58 psi

Differential left side [psi] [min]

10 psi

Differential right side [bar]

4 bar

Differential right side [psi]

58 psi

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

EU RoHS compliance

Yes

EU RoHS exemption clause

In scope of WEEE

Yes

Lubricants compatibility

Oilfree applications

Max.test press.left side[bar]

20 bar

Max.test press.right side[bar]

35 bar

MWP left side [bar] Pe

17 bar

MWP left side [psig] Pe

245 psig

MWP right side [bar] Pe

35 bar

MWP right side [psig] Pe

510 psig

Oil free refrigerants

R134a,R513A,R515B

Other RoHS documentation

Saudi Arabia RoHS

Packing format

Multi pack

Parts included

Angle bracket

Pressure connection size

1/4

Pressure connection standard

DIN 8912

Pressure connection type

Flare nut

Pressure Male/Female

Female

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Dual Pressure Control

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

16 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B

Regulation left side [bar]Pe [max]

7.5 bar

Regulation left side [bar]Pe [min]

-0.2 bar

Regulation left side range Pe

6 inHg - 108 psig

Regulation right side [bar]Pe [max]

32 bar

Regulation right side [bar]Pe [min]

8 bar

Regulation right side [psig]Pe [max]

464 psig

Regulation right side [psig]Pe [min]

116 psig

Reset function, left side

Auto

Reset function, right side

Auto

SCIP dossier no.

b1323c86-8856-44cc-b1c6-6849abe37ee4

SCIP dossier product name

KP/KPI pressure switch

Serviceable

Type

KP15

UK RoHS compliance

Yes

UL approval file name

E31024

UL approved refrigerants

R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B

UL evaluated

Yes
