060-129466
Part Number: 060-129466
Product Information
Extended Description

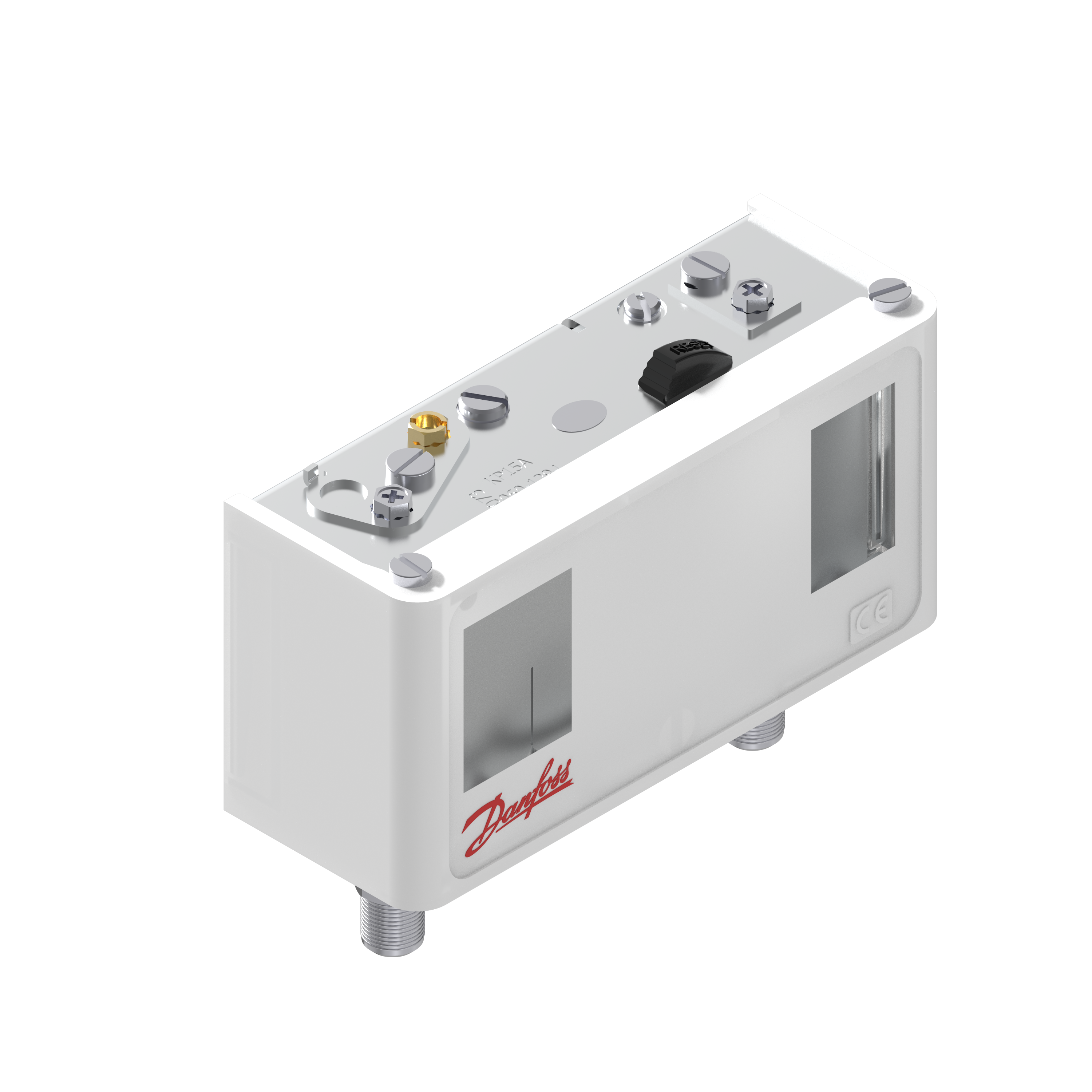

060-129466 Danfoss: Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT+SPST(NO), Reset function, left side: Auto, Reset function, right side: Manual Max
Gross weight
0.756 Kilogram
Net weight
0.709 Kilogram
Volume
1.993 Liter
EAN
5702428012119
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-40 °F
Application note
Not applicable for liquid line
Approval
BV,CCC,CE,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT+SPST(NO)
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V,Terminal D: 50 VA, 400 V
Contain batteries
No
Differential left side [bar] [max]
4 bar
Differential left side [bar] [min]
0.7 bar
Differential left side [psi] [max]
58 psi
Differential left side [psi] [min]
10 psi
Differential right side [bar]
4 bar
Differential right side [psi]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max.test press.left side[bar]
20 bar
Max.test press.right side[bar]
35 bar
MWP left side [bar] Pe
17 bar
MWP left side [psig] Pe
245 psig
MWP right side [bar] Pe
35 bar
MWP right side [psig] Pe
510 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Multi pack
Pressure connection size
10 x 0.75
Pressure connection standard
ISO 261
Pressure connection type
M
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Dual Pressure Control
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B,R717
Regulation left side [bar]Pe [max]
7.5 bar
Regulation left side [bar]Pe [min]
-0.2 bar
Regulation left side range Pe
6 inHg - 108 psig
Regulation right side [bar]Pe [max]
32 bar
Regulation right side [bar]Pe [min]
8 bar
Regulation right side [psig]Pe [max]
464 psig
Regulation right side [psig]Pe [min]
116 psig
Reset function, left side
Auto
Reset function, right side
Manual Max
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Serviceable
No
Type
KP15A
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B,R717
UL evaluated
Yes
