060-333366

Part Number: 060-333366
060-333366
Manufacturer
Danfoss
Part number
060-333366
Category

Product Information

Extended Description

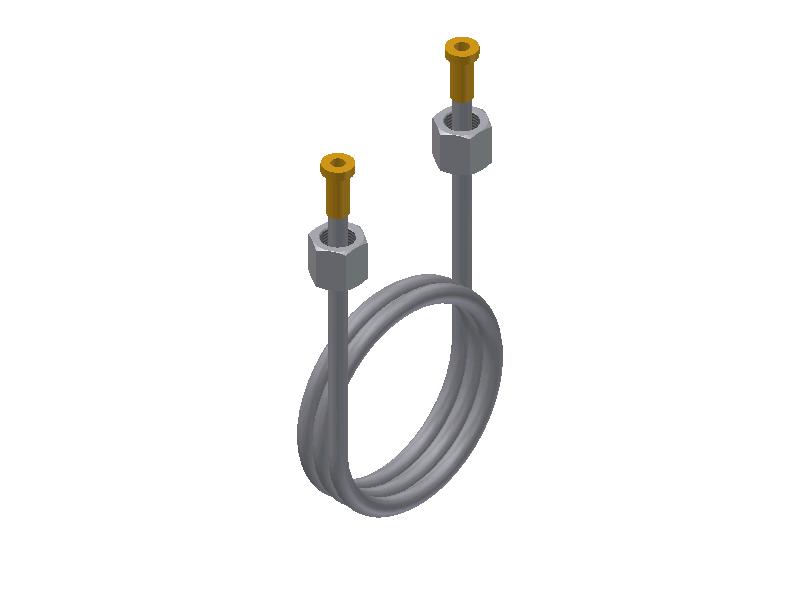

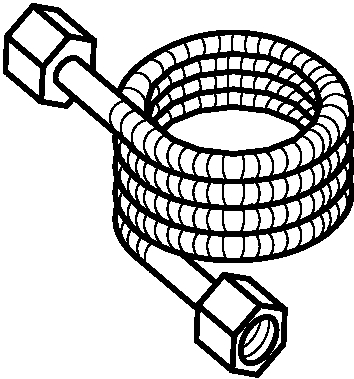

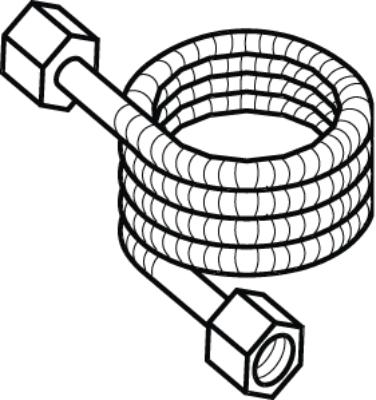

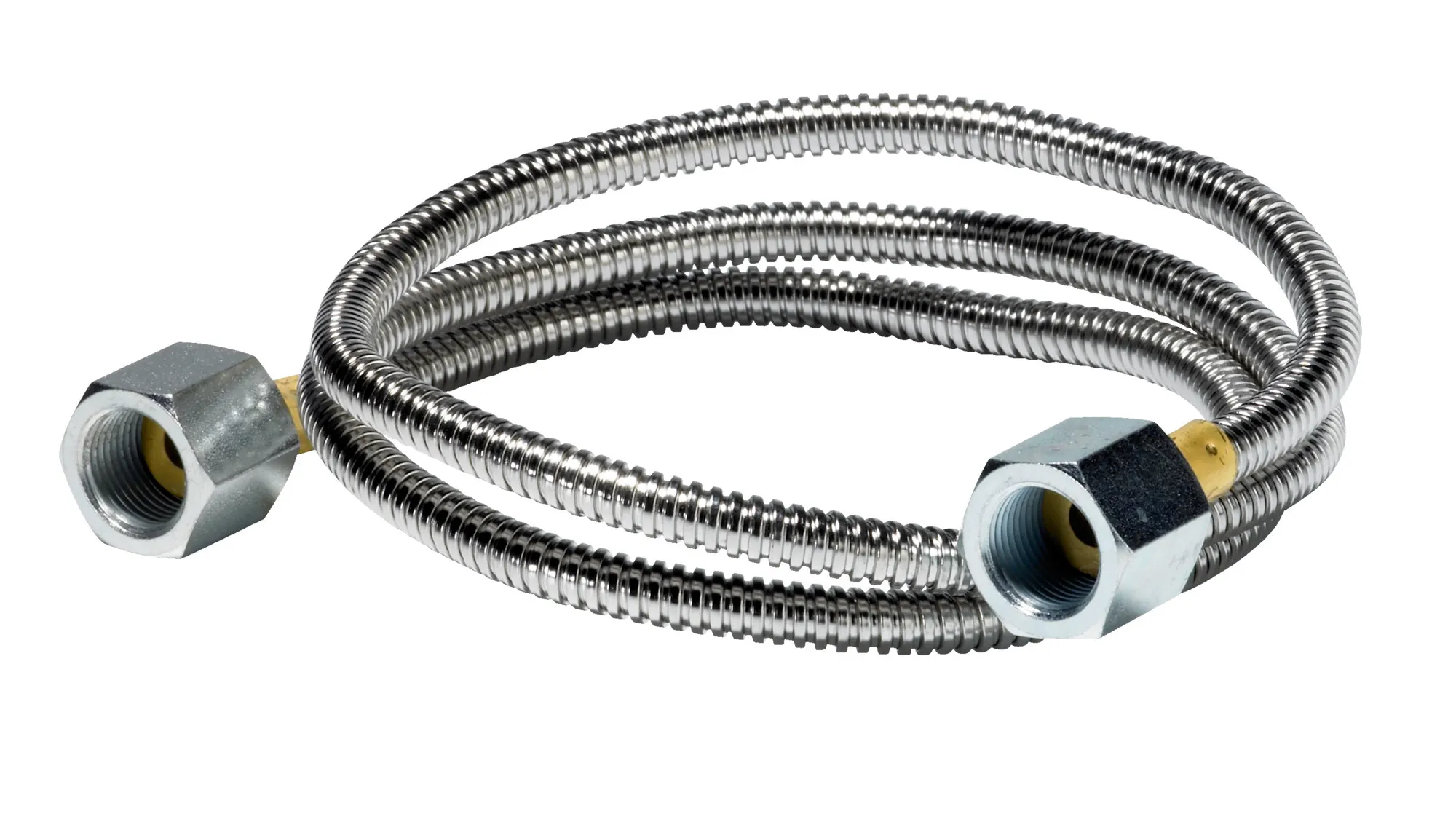

060-333366 Danfoss: Capillary Tube Armoured, Packing format: Multi pack, Quantity per packing format: 15
Gross weight
0.204 Kilogram
Net weight
0.177 Kilogram
Volume
0.364 Liter
EAN
5702428130301
Capillary tube length [in]
39 in
Capillary tube length [mm]
1000 mm
Capillary tube material
Copper
Connection notes
25 mm tube "tail"
Contain batteries
No
Packing format
Multi pack
Parts included
2x washer Cu
Pressure inlet conn. size [in]
3/8
Pressure inlet conn. std.
ISO 228-1
Pressure inlet conn. type
G
Pressure inlet Internal/Extern
Internal
Pressure outlet conn. size[in]
3/8
Pressure outlet conn. type
G
Product group
Switches accessories
Product Name Description
Capillary tube
Quantity per packing format
15 pc
REACH Candidate List substances
No
Type
Accessory
Type designation
Capillary tube
Used for product
CAS,KPS,MBC,RT

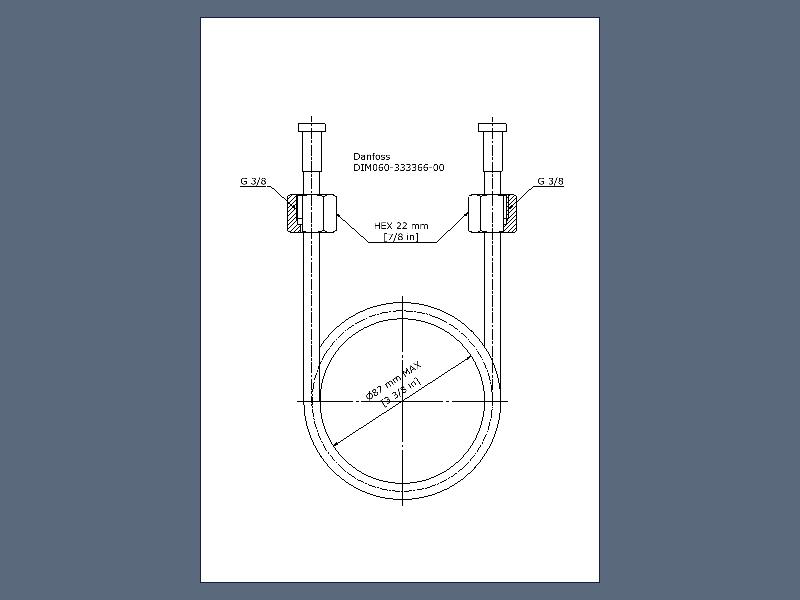

Pressure switch and Thermostat, type CAS Armoured damping coil with G3/8 connector and 1 m. copper capillary tube Damping coil, armoured Armoured capillary tube Capillary tube armoured Capillary tube armoured
