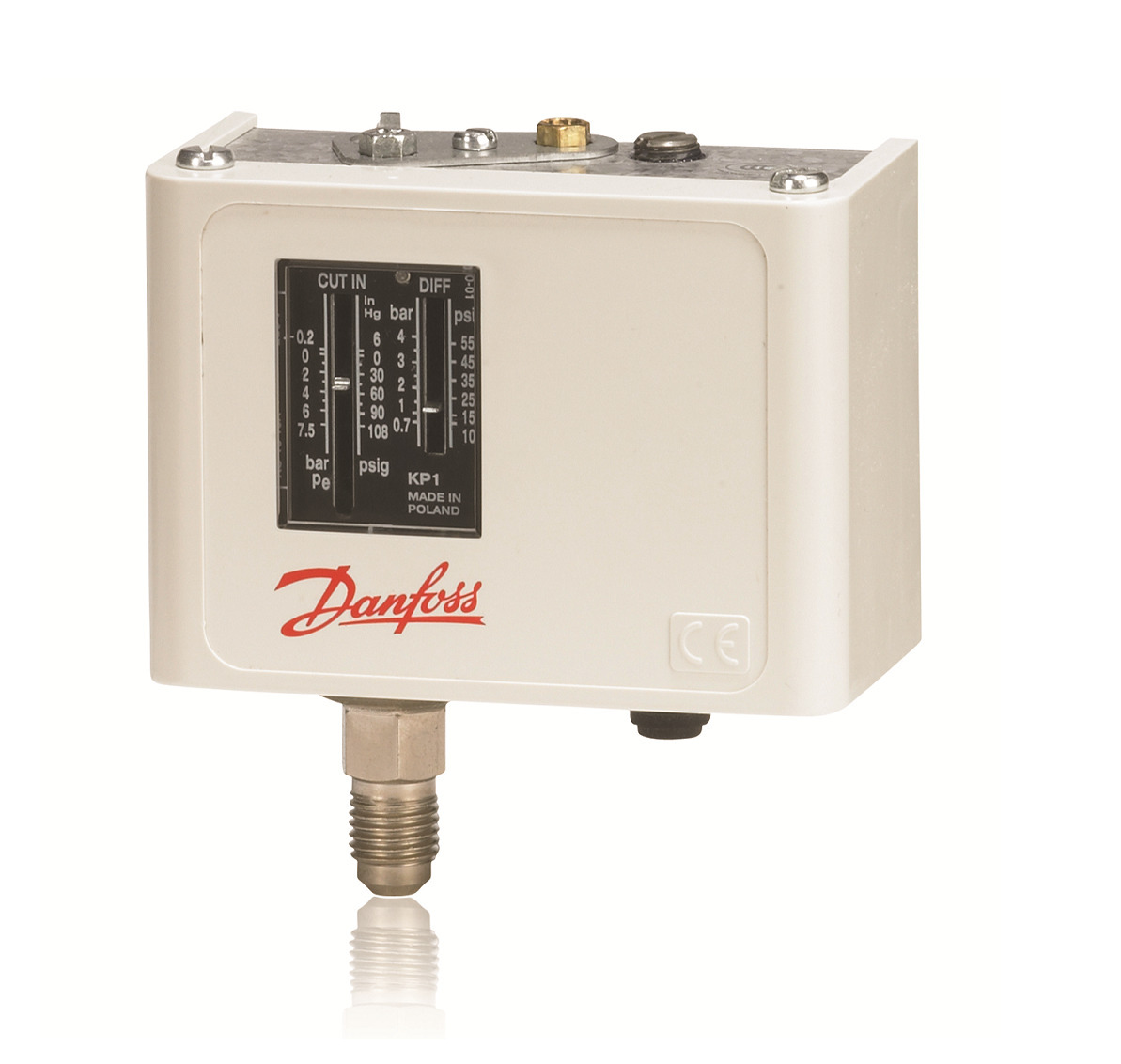

060-440166
Part Number: 060-440166
Product Information
Extended Description
060-440166 Danfoss: Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 21.5
Gross weight
0.358 Kilogram
Net weight
0.314 Kilogram
Volume
0.553 Liter
EAN
5715162500033
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Application note
Not applicable for liquid line
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential [bar] [max]
4 bar
Differential [bar] [min]
0.7 bar
Differential [psi] [max]
58 psi
Differential [psi] [min]
10 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
EU RoHS compliance
Out of scope
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
23.7 bar
Max. test pressure [psig]
348 psig
Max. Working Pressure [bar]
21.5 bar
Max. Working Pressure [psig]
312 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
36 pc
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B
Regulation range
6 inHg - 108 psig
Regulation range [bar] Pe [max]
7.5 bar
Regulation range [bar] Pe [min]
-0.2 bar
Reset function
Auto
Serviceable
No
Type
KP4
UK RoHS compliance
Out of scope
UL approval file name
E31024,MH27572
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
UL evaluated
Yes
Pressure switch, type KP
Pressure switch, KP 1, KP 1W, KP 1A, KP 2, KP 4, KP 5, KP 5A, KP 6W, KP 6B, KP 6S, KP 6AW, KP 6AB, KP 6AS, KP 7W, KP 7B, KP 7S
Danfoss CCC 2024010305641303
Danfoss CCC 2024010305686618
Danfoss EU 060-9653.AK
Pressure switches & Thermostats
TĂśV 01 202 969/B-22-0003_01
TĂśV 0879-PESR-B(P)-21484-2-DE
TĂśV 0879-PESR-B(P)-21484-7-DE
TĂśV 0045 202 9120 Z 00468 22 D 000 00
Danfoss UK 060-9686.AC
KP1 Pressure switch low pressure
