060-470366
Part Number: 060-470366
Product Information
Extended Description

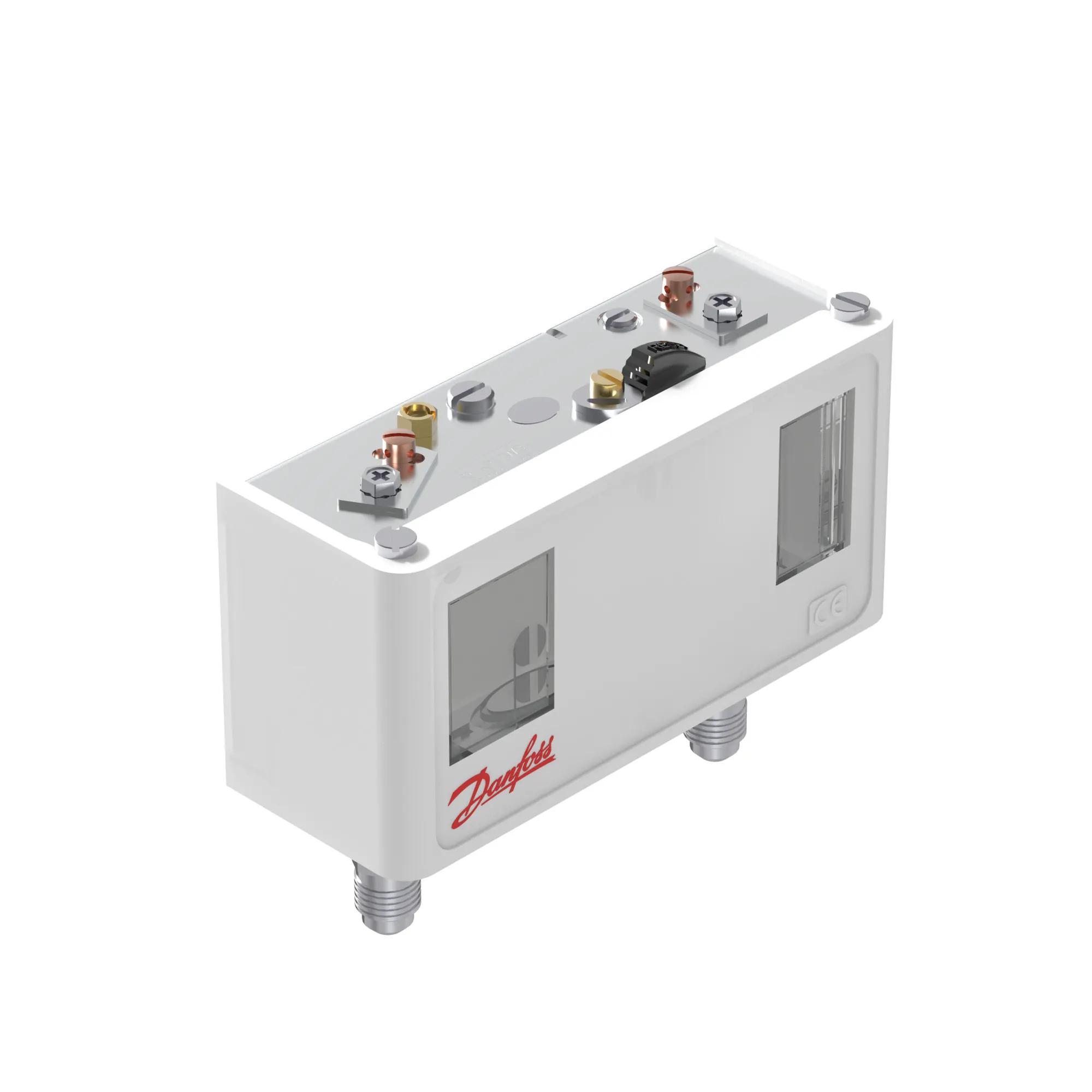

060-470366 Danfoss: Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT+SPST(NO), Reset function, left side: Auto, Reset function, right side: Max convertible
Gross weight
0.534 Kilogram
Net weight
0.477 Kilogram
Volume
0.819 Liter
EAN
5715162500064
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Application note
Not applicable for liquid line
Approval
CCC,CE,CMIM,DNV,EAC,LLC CDC EURO-TYSK,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT+SPST(NO)
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V,Terminal D: 50 VA, 400 V
Contain batteries
No
Differential left side [bar] [max]
4 bar
Differential left side [bar] [min]
0.7 bar
Differential left side [psi] [max]
58 psi
Differential left side [psi] [min]
10 psi
Differential right side [bar]
4 bar
Differential right side [psi]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
EU RoHS compliance
Yes
EU RoHS exemption clause
No
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max.test press.left side[bar]
24 bar
Max.test press.right side[bar]
35 bar
MWP left side [bar] Pe
21.5 bar
MWP left side [psig] Pe
312 psig
MWP right side [bar] Pe
32 bar
MWP right side [psig] Pe
464 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Dual Pressure Control
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
24 pc
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B
Regulation left side [bar]Pe [max]
7.5 bar
Regulation left side [bar]Pe [min]
-0.2 bar
Regulation left side range Pe
6 inHg - 108 psig
Regulation right side [bar]Pe [max]
32 bar
Regulation right side [bar]Pe [min]
8 bar
Regulation right side [psig]Pe [max]
464 psig
Regulation right side [psig]Pe [min]
116 psig
Reset function, left side
Auto
Reset function, right side
Max convertible
Serviceable
No
Type
KP47WB
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
UL evaluated
Yes
Pressure switch, type KP
Pressure switch KP 15, KP 15A, KP 17W, KP 17B, KP 17WB, KP 47WB
Danfoss CCC 2024010305641303
Danfoss CCC 2024010305686618
Danfoss EU 060-9653.AK
Pressure switches & Thermostats
TĂśV 01 202 969/B-22-0003_01
TĂśV 0879-PESR-B(P)-21484-2-DE
TĂśV 0879-PESR-B(P)-21484-7-DE
TĂśV 0045 202 9120 Z 00468 22 D 000 00
Danfoss UK 060-9686.AC
KP17WB Pressure Switch I/32
