060-501366

Part Number: 060-501366
060-501366
Manufacturer
Danfoss
Part number
060-501366
Category

Product Information

Extended Description

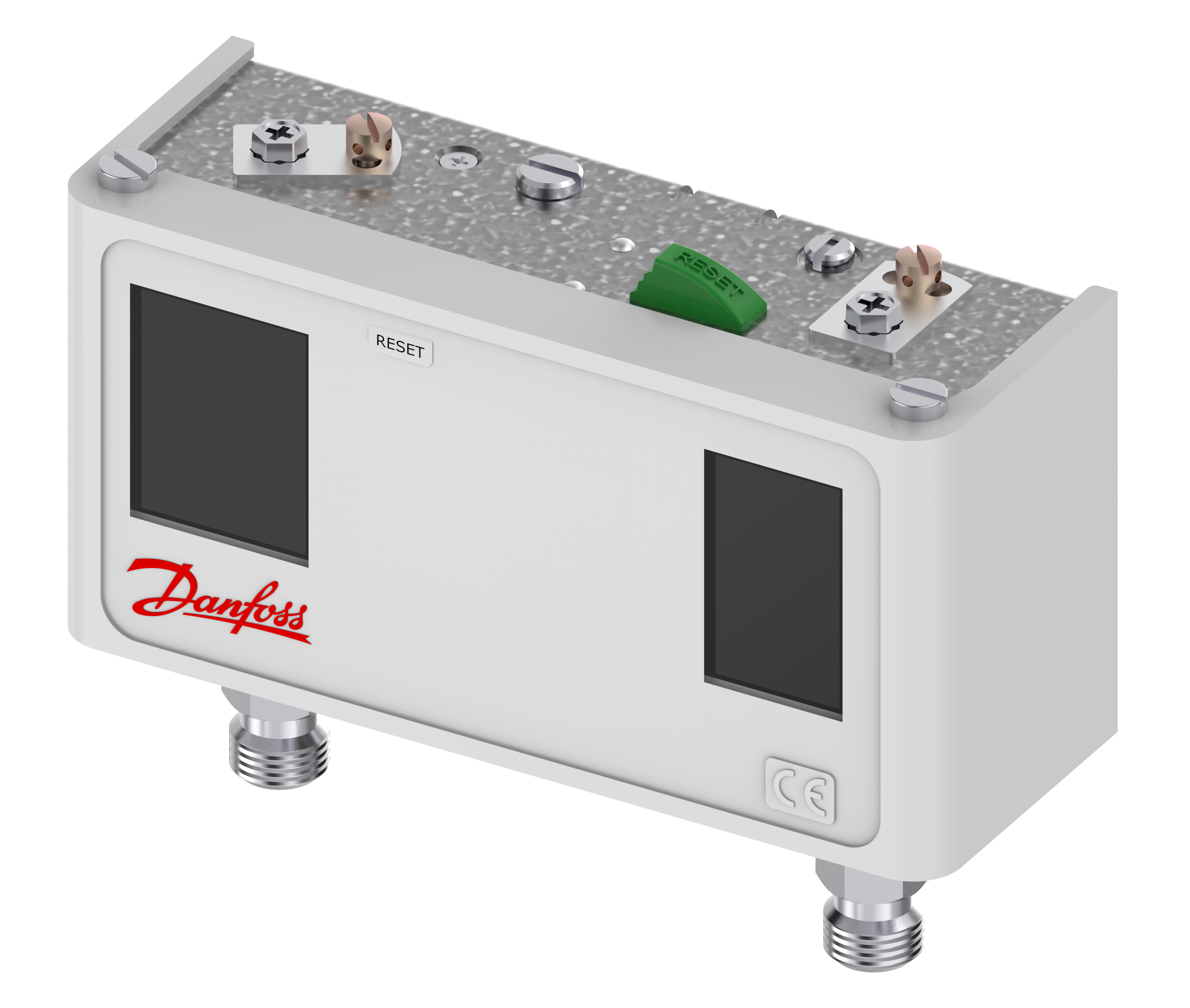

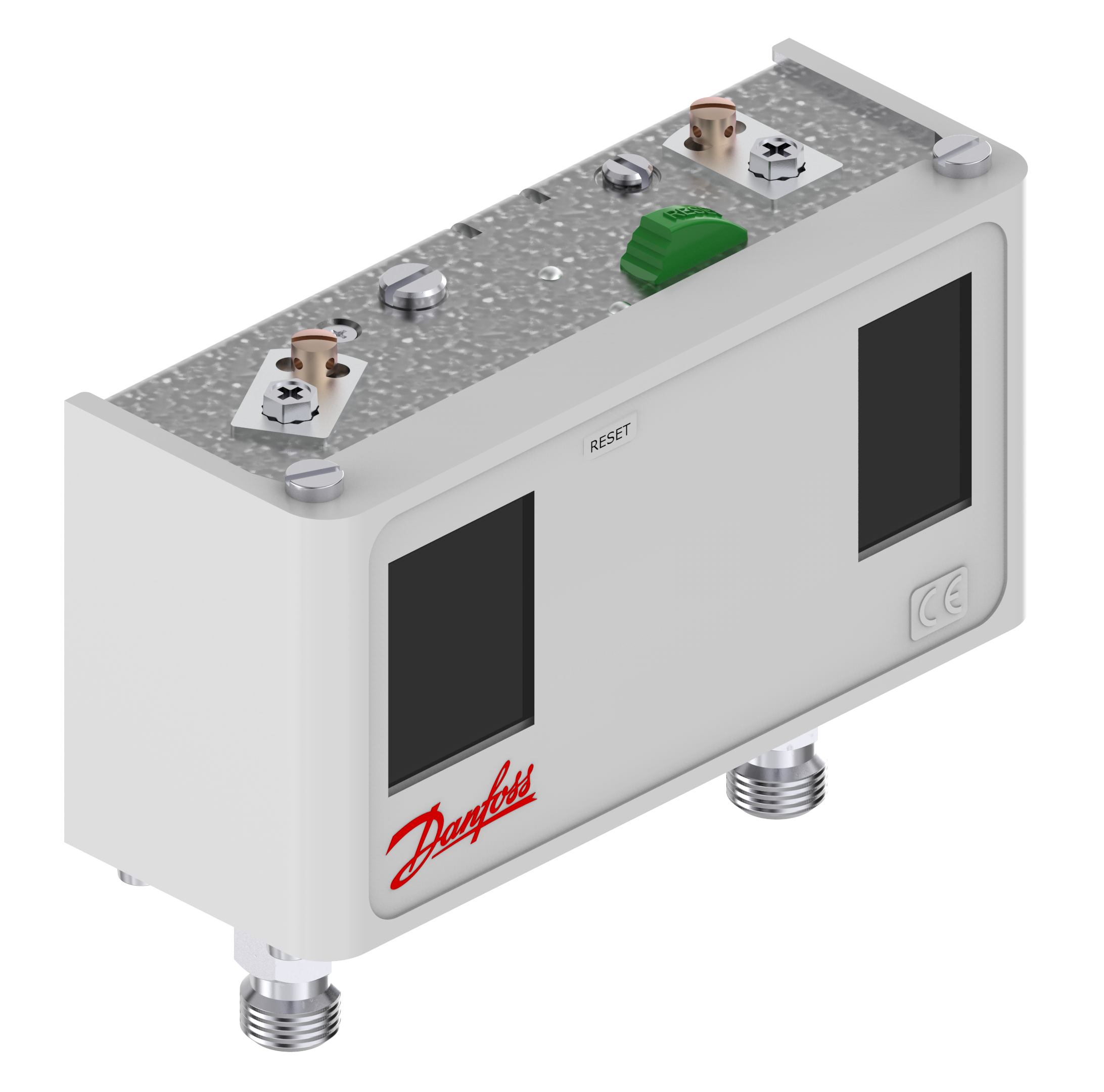

060-501366 Danfoss: Regulation left side [bar]Pe: 8.00 - 32.00, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 4.00, Differential right side [bar]: 4.0, Contact function: 2 SPST(NC), Reset function, left side: Manual Max, Reset function, right side: Manual Max
Gross weight
0.552 Kilogram
Net weight
0.493 Kilogram
Volume
0.861 Liter
EAN
5702428011013
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Application note
Not applicable for liquid line
Approval
CCC,CE,CMIM,DNV,EAC,LLC CDC EURO-TYSK,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Burst pressure [bar]
140 bar
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
2 SPST(NC)
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential left side [bar]
4 bar
Differential left side [psi]
58 psi
Differential right side [bar]
4 bar
Differential right side [psi]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max.test press.left side[bar]
35 bar
Max.test press.right side[bar]
35 bar
MWP left side [bar] Pe
35 bar
MWP left side [psig] Pe
510 psig
MWP right side [bar] Pe
35 bar
MWP right side [psig] Pe
510 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Multi pack
PED category
IV
Pressure connection notes
Cutting ring 6mm tube
Pressure connection size
12 x 1.5
Pressure connection standard
ISO 8434-1
Pressure connection type
M
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Dual Pressure Control
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B,R717
Regulation left side [bar]Pe [max]
32 bar
Regulation left side [bar]Pe [min]
8 bar
Regulation left side [psig]Pe [max]
464 psig
Regulation left side [psig]Pe [min]
116 psig
Regulation right side [bar]Pe [max]
32 bar
Regulation right side [bar]Pe [min]
8 bar
Regulation right side [psig]Pe [max]
464 psig
Regulation right side [psig]Pe [min]
116 psig
Reset function, left side
Manual Max
Reset function, right side
Manual Max
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Serviceable
No
Type
KP7ABS
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B,R717
UL evaluated
Yes
