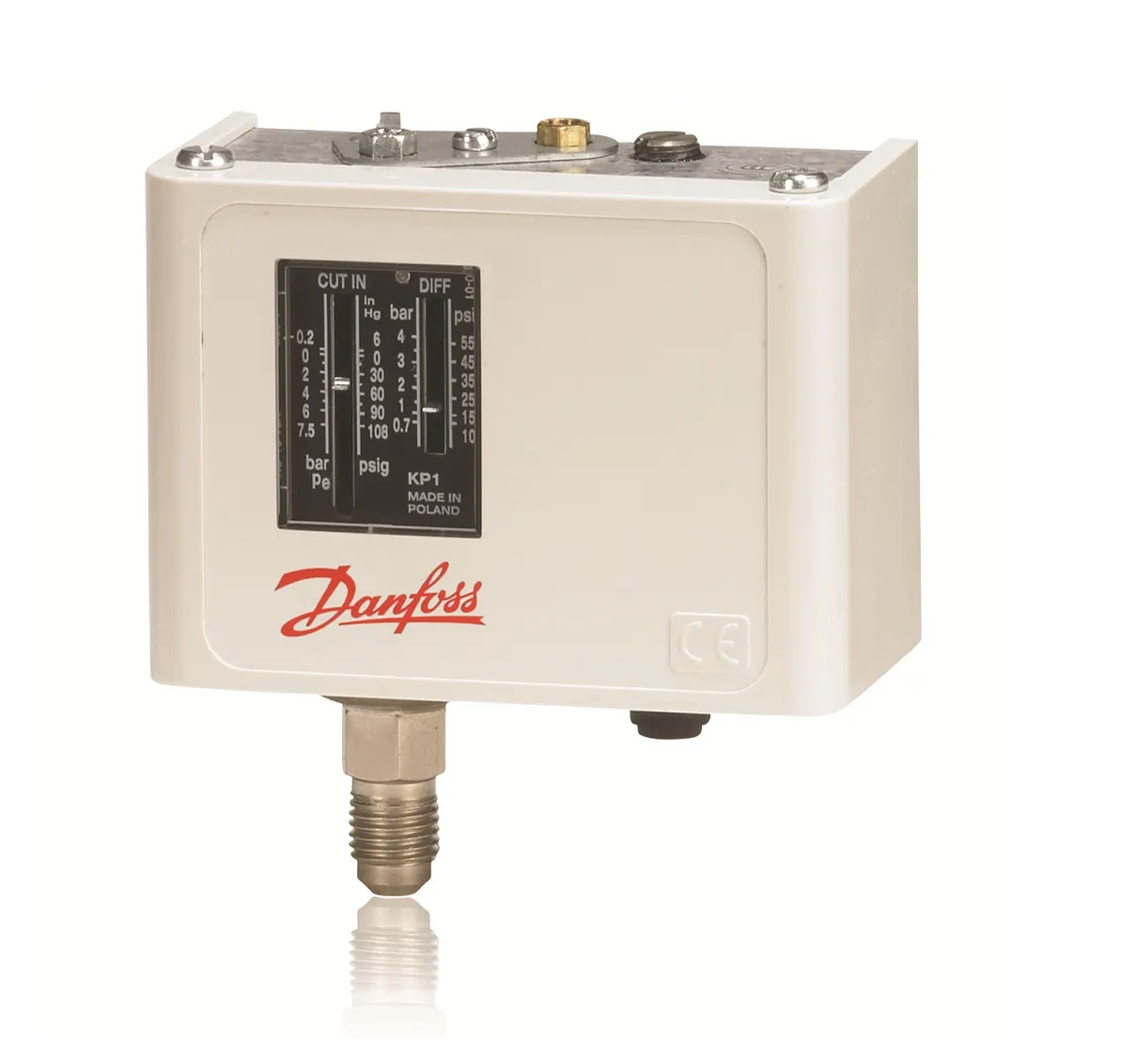

060-509466

Part Number: 060-509466

Manufacturer

Danfoss

Part number

060-509466

Product Information

Extended Description

060-509466 Danfoss: Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 17.0

Gross weight

0.321 Kilogram

Net weight

0.286 Kilogram

Volume

0.562 Liter

EAN

5702428012423

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-13 °F

Application note

Not applicable for liquid line

Approval

BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2

CE evaluated

Yes

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V

Contain batteries

Differential [bar] [max]

4 bar

Differential [bar] [min]

0.7 bar

Differential [psi] [max]

58 psi

Differential [psi] [min]

10 psi

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP44

Enclosure rating Nema (~)

EU RoHS compliance

Yes

EU RoHS exemption clause

Fluid Group

Identical product

060-110166

In scope of WEEE

Yes

Lubricants compatibility

Oilfree applications

Max. test pressure [bar] Pe

20 bar

Max. test pressure [psig]

290 psig

Max. Working Pressure [bar]

17 bar

Max. Working Pressure [psig]

245 psig

Oil free refrigerants

R134a,R513A,R515B

Packing format

Industrial pack

PED category

Pressure connection size

1/4

Pressure connection standard

DIN 8906

Pressure connection type

Flare

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

40 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B

Regulation range

6 inHg - 108 psig

Regulation range [bar] Pe [max]

7.5 bar

Regulation range [bar] Pe [min]

-0.2 bar

Reset function

Auto

SCIP dossier no.

b1323c86-8856-44cc-b1c6-6849abe37ee4

SCIP dossier product name

KP/KPI pressure switch

Serviceable

Type

KP1

UK RoHS compliance

Yes

UL approval file name

E31024,MH27572

UL approved refrigerants

R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B

UL evaluated

Yes
