060-522466
Part Number: 060-522466
Product Information
Extended Description
060-522466 Danfoss: Regulation range [bar] Pe: 8.00 - 42.00, Differential [bar]: 4.00 - 10.00, Contact function: SPDT gold, Reset function: Auto, Pressure connection type: Solder, ODF, Pressure connection size: 1/4, Pressure Male/Female: Female, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 46.5
Gross weight
0.427 Kilogram
Net weight
0.385 Kilogram
Volume
1.281 Liter
EAN
5702428659680
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
ATEX - Cat. 3 - Zone 2,CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PED,PZH,RINA,RMRS,RoHS China,cURus
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT gold
Contact rating
Ci max: 0.5 nF,Ii max: 0.1 A,Li max: 0.2 μH,Pi max: 1 W,Ui max: 30 V
Contain batteries
No
Differential [bar] [max]
10 bar
Differential [bar] [min]
4 bar
Differential [psi] [max]
145 psi
Differential [psi] [min]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. comments
Metal cable gland
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
Pg 13.5
Electrical connection standard
DIN 40430
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
EU RoHS compliance
Yes
EU RoHS exemption clause
No
EX Sales text
-20Cta+60C,II 3G Ex ic IIB T6 Gc
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
46.5 bar
Max. test pressure [psig]
675 psig
Max. Working Pressure [bar]
46.5 bar
Max. Working Pressure [psig]
675 psig
Oil free refrigerants
R1234ze(E),R516A
Packing format
Multi pack
PED category
IV
Pressure connection size
1/4
Pressure connection standard
EN 1254-1
Pressure connection type
Solder, ODF
Pressure Male/Female
Female
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
32 pc
Refrigerants
R1234yf,R1234ze(E),R1270,R170,R290,R32,R444B,R452B,R454A,R454B,R454C,R455A,R516A,R600,R600a
Regulation range [bar] Pe [max]
42 bar
Regulation range [bar] Pe [min]
8 bar
Regulation range [psig] Pe [max]
610 psig
Regulation range [psig] Pe [min]
116 psig
Reset function
Auto
Serviceable
No
Type
KP6EW
UK RoHS compliance
Yes
UL approved refrigerants
R516A
017-420566
Switches accessories, Reducing Nipple
060-008666
Switches accessories, Cover For KP Single
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-105766
Switches accessories, Sealing Screw
060-333866
Switches accessories, Transition Nipple
060-003166
Switches accessories, Protective Cap For KP Single
060-018966
Switches accessories, Locking Plate With Screws
060-062866
Switches accessories, IP55 Transparent Enclosure
Pressure switch Type KP-E
Pressure switch KP 1E, KP 6EW, KP 6EB, KP 7EW, KP 7EB
Danfoss CCC 2024010305641303
Danfoss EU 060-9654.AJ
UL-US-2443922-0
Pressure switches & Thermostats
TÜV 01 202 969/B-22-0003_01
TÜV 0879-PESR-B(P)-21484-2-DE
TÜV 0879-PESR-B(P)-21484-7-DE
Danfoss UK 060-9688.AC

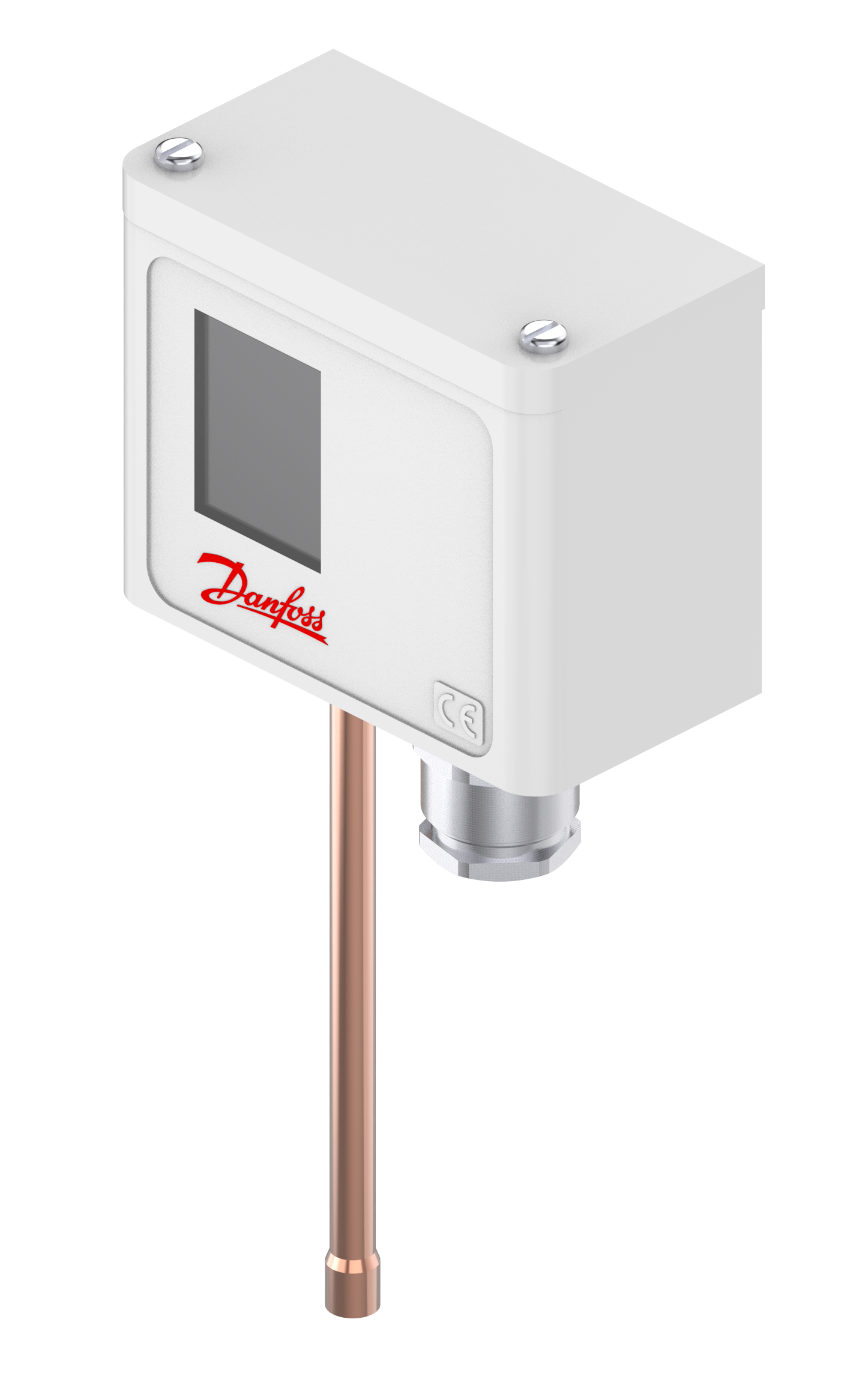

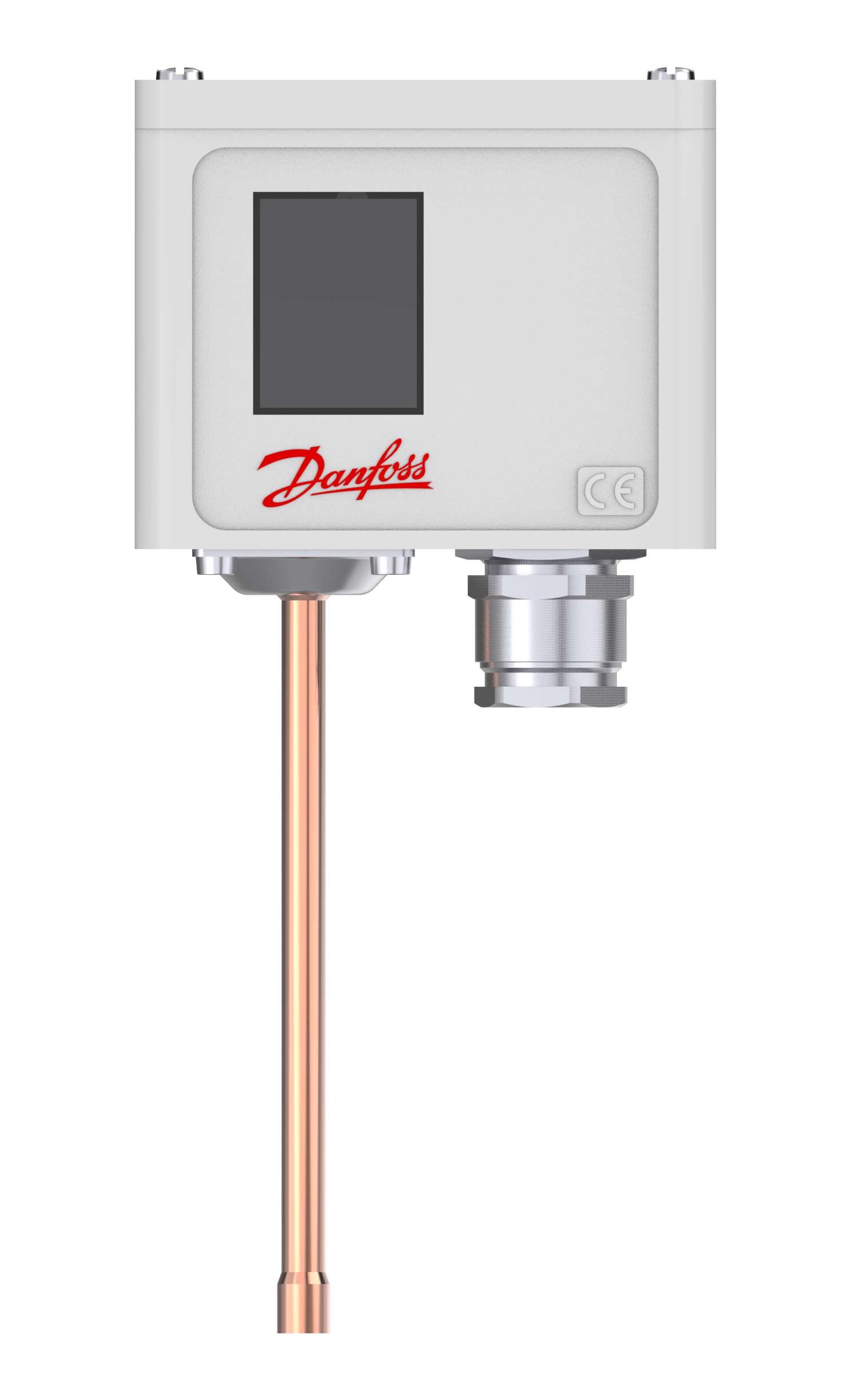

Pressure switch, KP6EW, WEB060-8301
