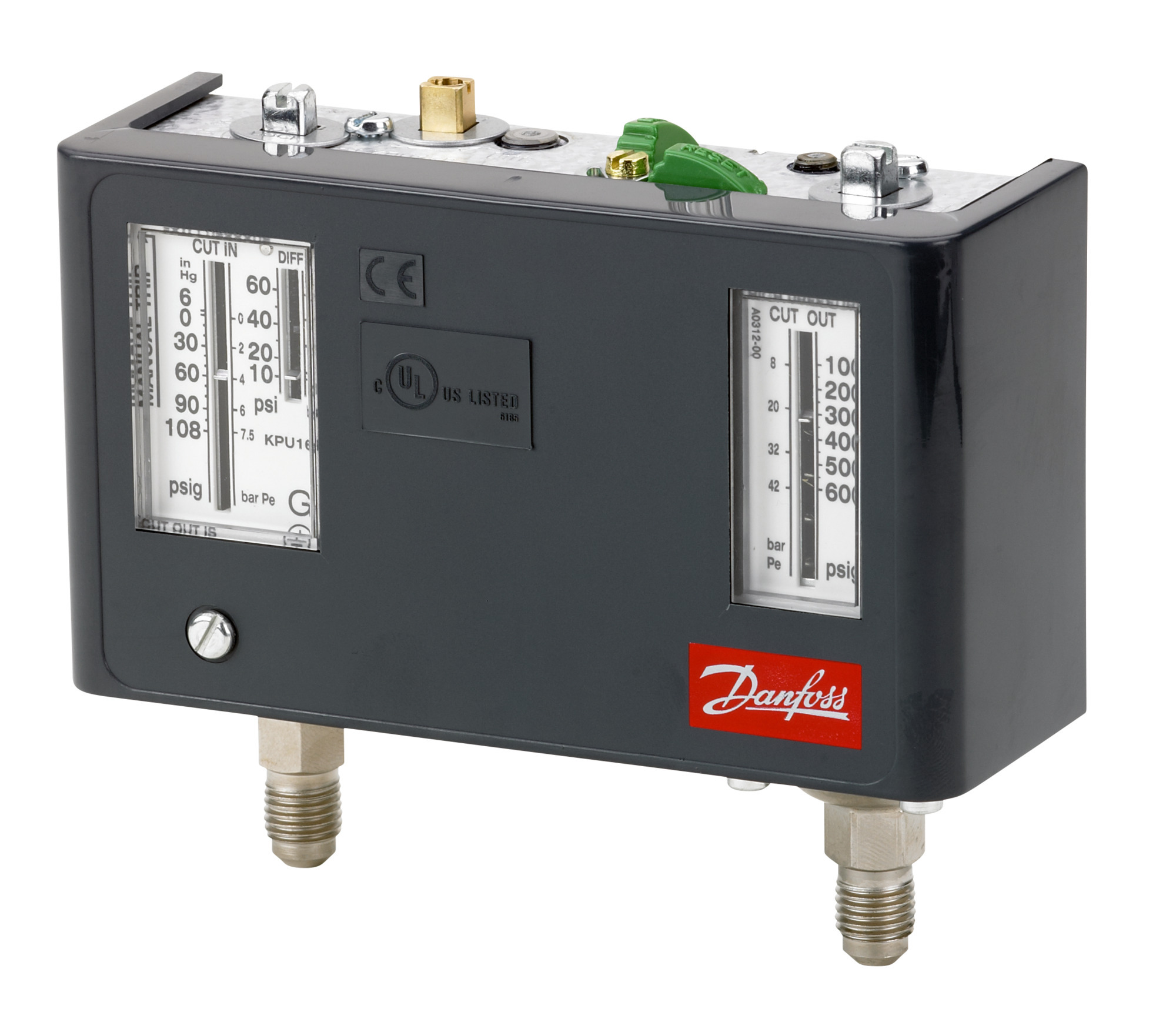

060-5253

Part Number: 060-5253

Manufacturer

Danfoss

Part number

060-5253

Product Information

Extended Description

060-5253 Danfoss: Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 42.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT+SPST(NO), Reset function, left side: Min convertible

Gross weight

0.905 Kilogram

Net weight

0.86 Kilogram

Volume

1.028 Liter

EAN

5702428063890

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-40 °F

Application note

Not applicable for liquid line

Approval

CE,LVD,PED,RoHS,c UL us UL873, CS C22.2

CE evaluated

Yes

China RoHS compliance

Out of scope

Contact function

SPDT+SPST(NO)

Contact rating

144 A, 240 V AC,24 A, 240 V ac,DC=12 W pilot duty,FLA=24 A, 120 V ac,LRA = 144 A, 120 V ac

Contain batteries

Differential left side [bar] [max]

4 bar

Differential left side [bar] [min]

0.7 bar

Differential left side [psi] [max]

60 psi

Differential left side [psi] [min]

10 psi

Differential right side [bar]

4 bar

Differential right side [psi]

60 psi

Electrical conn. comments

for ½ in male pipe thread

Electrical connection

Hole

Electrical connection size

7/8 in

EN 60947 electrical properties

Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

EU RoHS compliance

Yes

EU RoHS exemption clause

Lubricants compatibility

Oilfree applications

MWP left side [bar] Pe

17 bar

MWP left side [psig] Pe

250 psig

MWP right side [bar] Pe

46.5 bar

MWP right side [psig] Pe

675 psig

Oil free refrigerants

R134a,R513A,R515B

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

DIN 8906

Pressure connection type

Flare

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Dual Pressure Control

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

14 pc

REACH Candidate List substances

Refrigerants

R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R422B,R422D,R438A,R448A,R449A,R450A,R452A,R507A,R513A,R515B

Regulation left side [bar]Pe [max]

7.5 bar

Regulation left side [bar]Pe [min]

-0.2 bar

Regulation left side range Pe

6 inHg - 108 psig

Regulation right side [bar]Pe [max]

42 bar

Regulation right side [bar]Pe [min]

8 bar

Regulation right side [psig]Pe [max]

600 psig

Regulation right side [psig]Pe [min]

100 psig

Reset function, left side

Min convertible

Reset function, right side

Max convertible

Serviceable

Type

KPU16B

UK RoHS compliance

Out of scope

UL approval file name

E31024

UL approved refrigerants

R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R410A,R422B,R422D,R438A,R448A,R449A,R450A,R452A,R507A,R513A,R515B

UL evaluated

Yes
