060-533766
Part Number: 060-533766
Product Information
Extended Description
060-533766 Danfoss: Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 4.00, Contact function: SPDT gold, Reset function: Manual Max, Pressure connection type: Flare, Pressure connection size: 1/4, Pressure Male/Female: Male, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 32.0
Gross weight
0.376 Kilogram
Net weight
0.376 Kilogram
Volume
0.57 Liter
EAN
5702424066598
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
ATEX - Cat. 3 - Zone 2,CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PED,PZH,RINA,RMRS,RoHS China,cURus
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT gold
Contact rating
Ci max: 0,5 nF,Ii max: 0,1 A,Li max: 0,2 uH,Pi max: 1 W,Ui max: 30 V
Contain batteries
No
Differential [bar]
4 bar
Differential [psi]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. comments
Metal cable gland
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
Pg 13.5
Electrical connection standard
DIN 40430
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
EX Sales text
-20Cta+60C,II 3G Ex ic IIB T6 Gc
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
35 bar
Max. test pressure [psig]
510 psig
Max. Working Pressure [bar]
32 bar
Max. Working Pressure [psig]
464 psig
Oil free refrigerants
R1234ze(E),R516A
Packing format
Multi pack
PED category
IV
Pressure connection size
1/4
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
36 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1234yf,R1234ze(E),R1270,R170,R290,R444B,R454A,R454C,R455A,R516A,R600,R600a
Regulation range [bar] Pe [max]
32 bar
Regulation range [bar] Pe [min]
8 bar
Regulation range [psig] Pe [max]
464 psig
Regulation range [psig] Pe [min]
116 psig
Reset function
Manual Max
SCIP dossier no.
0d2d51d9-73bd-415b-baa3-e932a09f7536
Serviceable
No
Type
KP7EB
UK RoHS compliance
Yes
060-019066
Switches accessories, Capillary Tube
060-019366
Switches accessories, Capillary Tube
017-420566
Switches accessories, Reducing Nipple
023U8001
FSA, Flare, Solder, ODF, Adapter
023U8002
FSA, Flare, Solder, ODF, Adapter
023U8011
FSA, Flare, Solder, ODF, Adapter
023U8012
FSA, Flare, Solder, ODF, Adapter
023U8041
FSA, Flare, Solder, ODF, Adapter
060-000466
Switches accessories, Capillary Tube
060-000566
Switches accessories, Capillary Tube
Pressure switch Type KP-E
Pressure switch KP 1E, KP 6EW, KP 6EB, KP 7EW, KP 7EB
Danfoss CCC 2024010305641303
Danfoss EU 060-9654.AJ
UL-US-2443922-0
Pressure switches & Thermostats
Danfoss MD 060-9638.AA
TÜV 01 202 969/B-22-0003_01
TÜV 0879-PESR-B(P)-21484-2-DE
TÜV 0879-PESR-B(P)-21484-7-DE
TÜV 0045 202 9120 Z 00468 22 D 000 00
Danfoss UK 060-9688.AC
KP7EB Pressure Switch M/36 ATEX, WEB060-8297
KP7EB Pressure Switch M/36 ATEX, WEB060-8297
KP7EB Pressure Switch M/36 ATEX, WEB060-8297

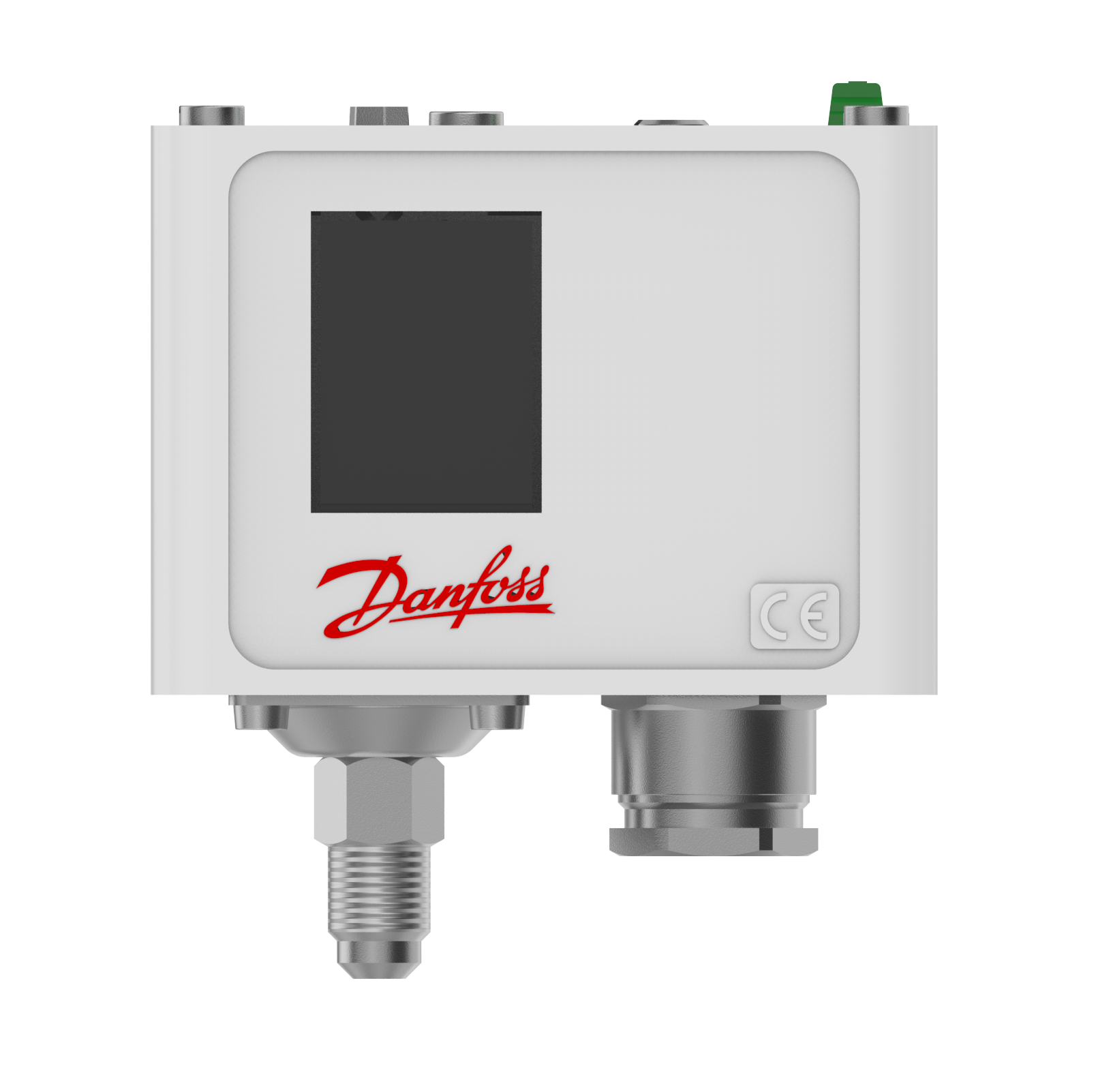

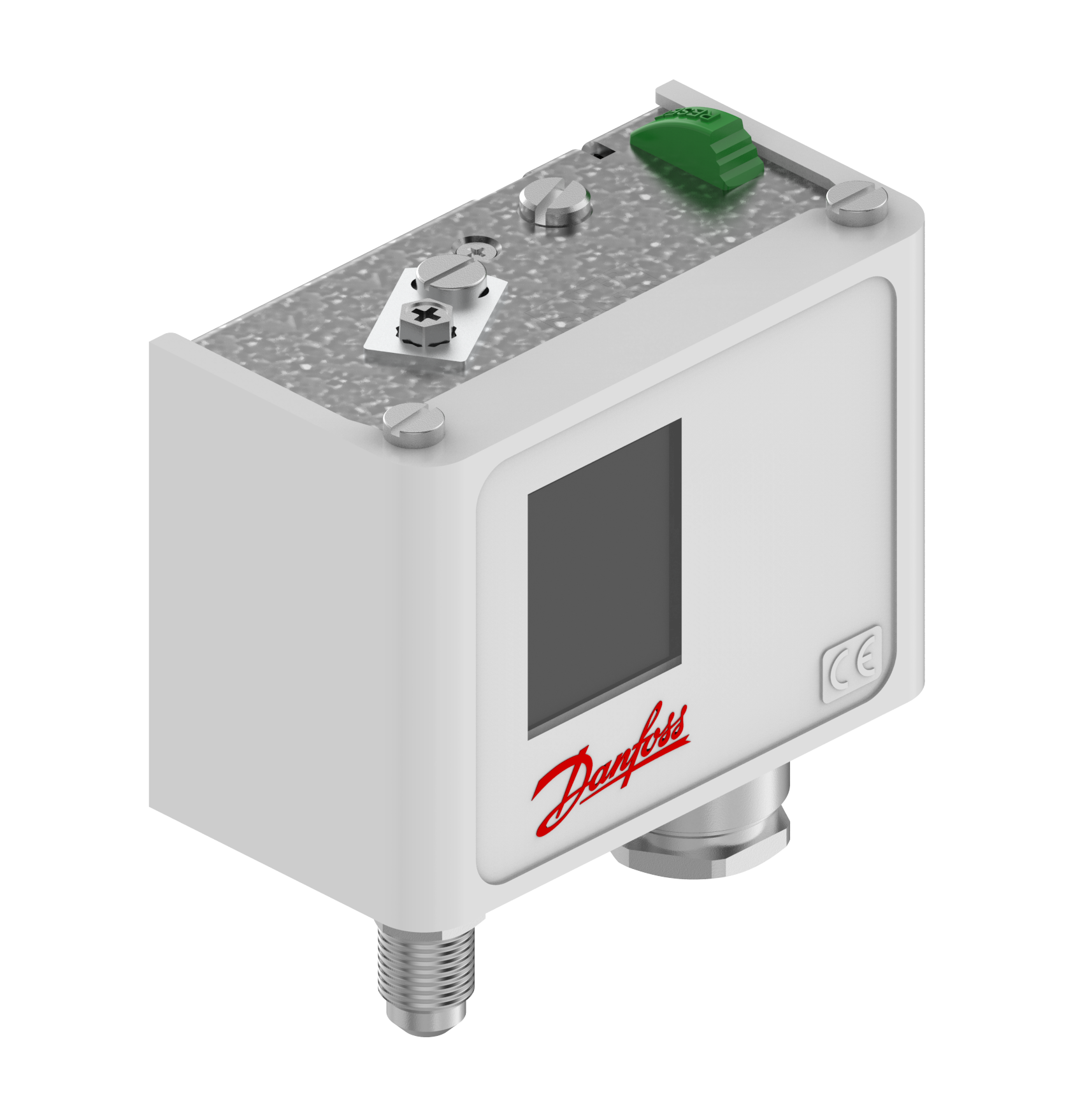

KP7EB Pressure switch

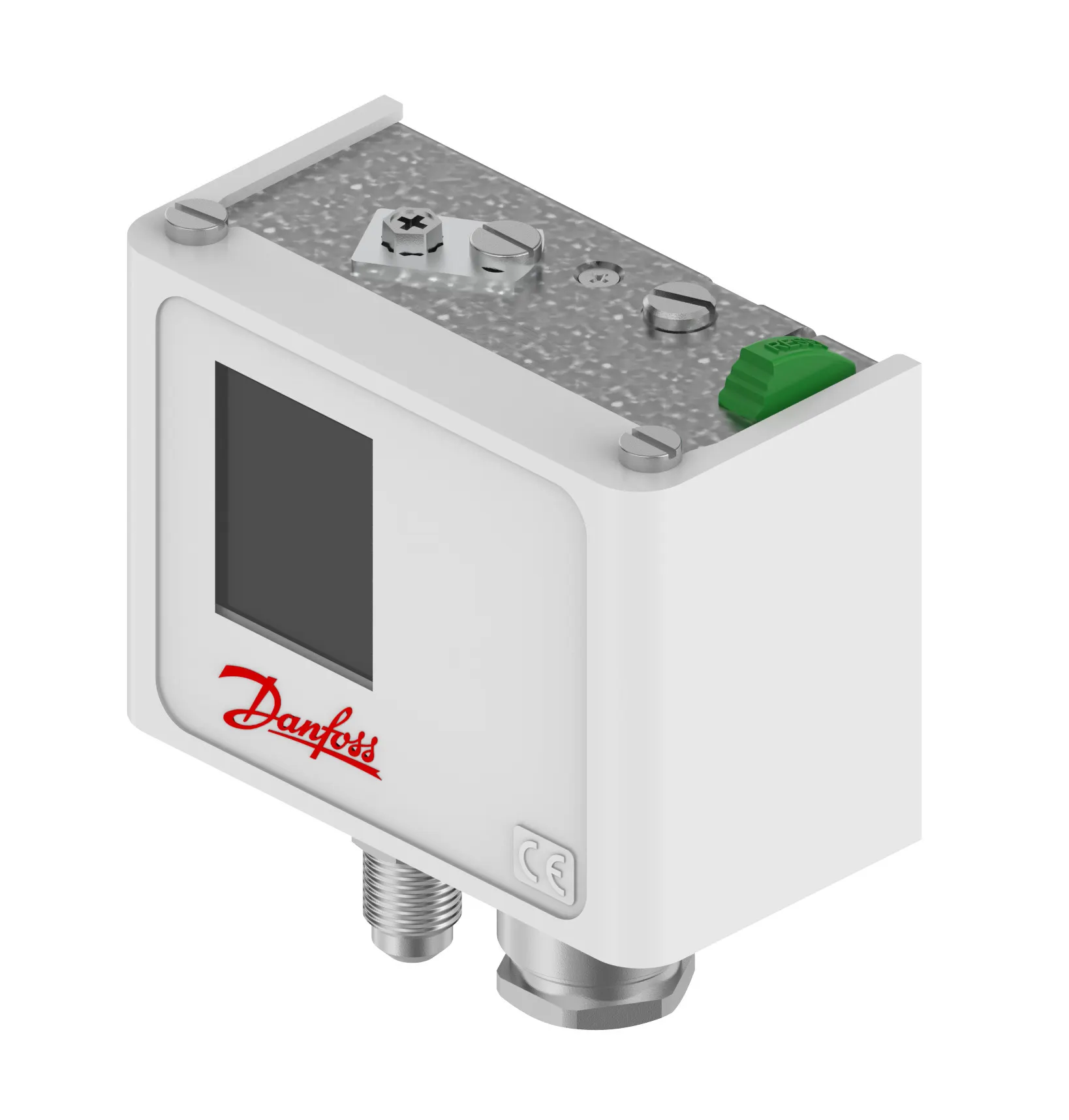

KP7EB Pressure switch
