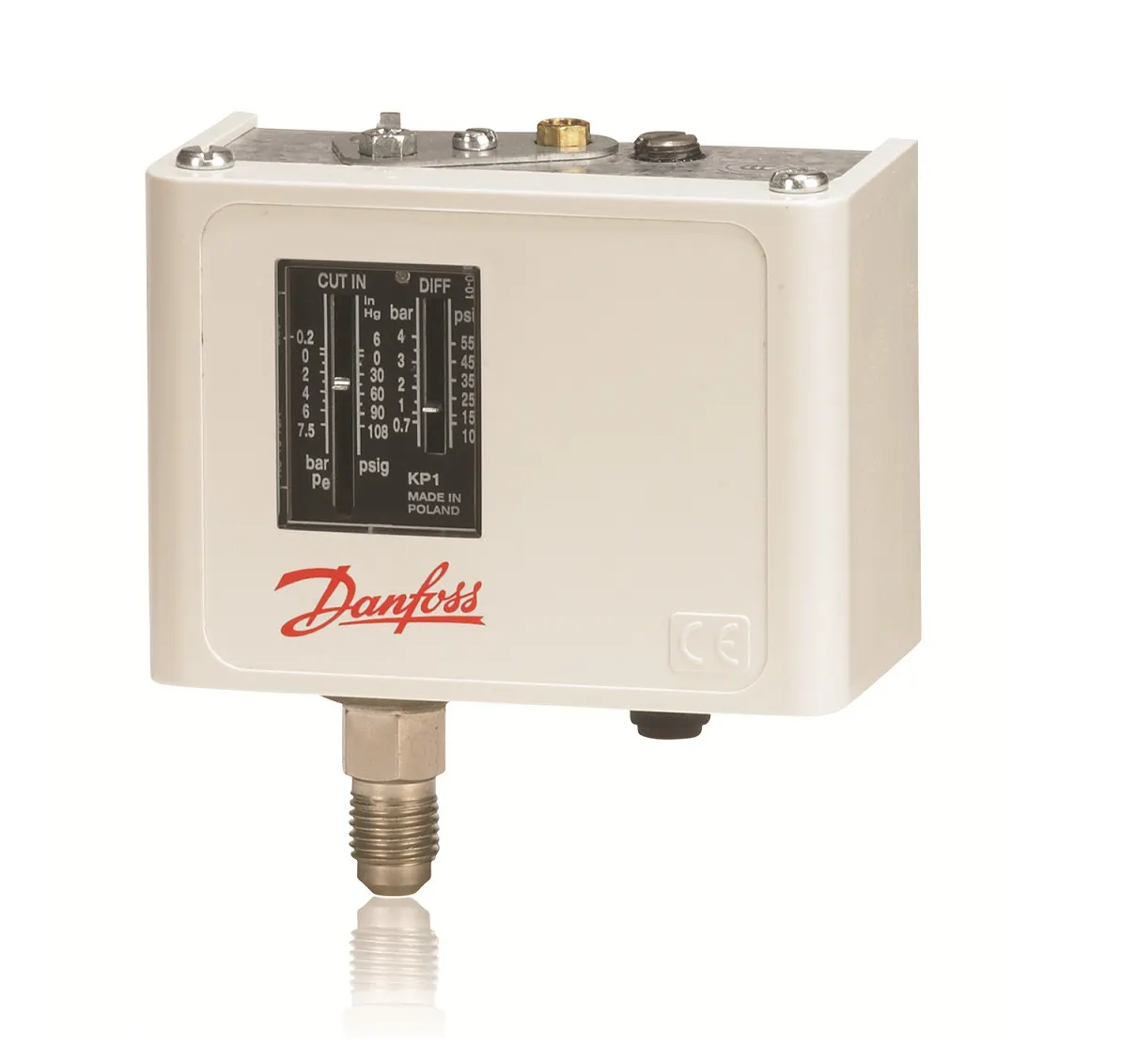

060-537866

Part Number: 060-537866
060-537866
Manufacturer
Danfoss
Part number
060-537866
Category

Product Information

Extended Description

060-537866 Danfoss: Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: Solder, ODF, Pressure connection size: 6 mm, Pressure Male/Female: Female, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 17.0
Gross weight
0.334 Kilogram
Net weight
0.299 Kilogram
Volume
1.125 Liter
EAN
5702428047999
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Application note
Not applicable for liquid line
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential [bar] [max]
4 bar
Differential [bar] [min]
0.7 bar
Differential [psi] [max]
58 psi
Differential [psi] [min]
10 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
Identical product
060-111066
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
20 bar
Max. test pressure [psig]
290 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Industrial pack
PED category
IV
Pressure connection size
6 mm
Pressure connection standard
EN 1254-1
Pressure connection type
Solder, ODF
Pressure Male/Female
Female
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
40 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B
Regulation range
6 inHg - 108 psig
Regulation range [bar] Pe [max]
7.5 bar
Regulation range [bar] Pe [min]
-0.2 bar
Reset function
Auto
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Serviceable
No
Type
KP1
UK RoHS compliance
Yes
UL approval file name
E31024,MH27572
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
UL evaluated
Yes
017-420566
Switches accessories, Reducing Nipple
060-003166
Switches accessories, Protective Cap For KP Single
060-008666
Switches accessories, Cover For KP Single
060-018966
Switches accessories, Locking Plate With Screws
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-062866
Switches accessories, IP55 Transparent Enclosure
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-105766
Switches accessories, Sealing Screw
060-105966
Switches accessories, Screwed Cable Entry With Nut
