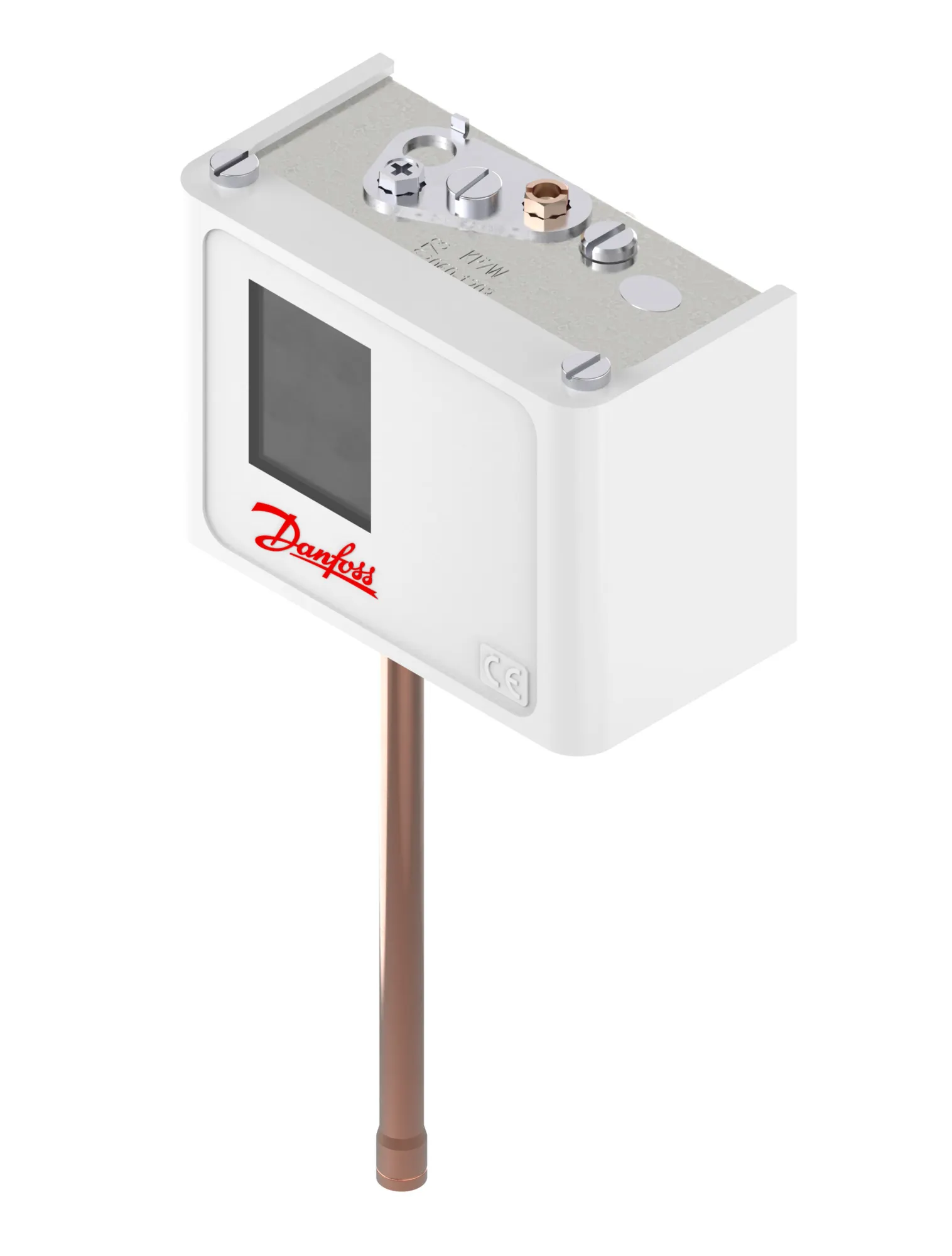

060-544566

Part Number: 060-544566
060-544566
Manufacturer
Danfoss
Part number
060-544566
Category

Product Information

Extended Description

060-544566 Danfoss: Differential [bar]: 4.10, Contact function: SPDT, Reset function: Auto, Pressure connection type: Solder, ODF, Pressure connection size: 6 mm, Pressure Male/Female: Female, Enclosure rating IP: IP44, Max. Working Pressure [bar]: 35.0
Gross weight
0.408 Kilogram
Net weight
0.373 Kilogram
Volume
1.281 Liter
EAN
5715162465165
Alarm Signal
Rising
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Burst pressure [bar]
140 bar
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential [bar]
4.1 bar
Differential [psi] [max]
145 psi
Differential [psi] [min]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory setting [bar]
23 bar
Factory setting [MPa]
2.3 MPa
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
35 bar
Max. test pressure [psig]
510 psig
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
510 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Multi pack
PED category
IV
Pressure connection size
6 mm
Pressure connection standard
EN 1254-1
Pressure connection type
Solder, ODF
Pressure Male/Female
Female
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
32 pc
Refrigerants
R113,R124,R134a,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
Reset function
Auto
Serviceable
No
Type
KP7W
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
UL evaluated
Yes
Pressure switch, type KP Pressure switch Types KP 1 and KP 7W Pressure switch, KP 1, KP 1W, KP 1A, KP 2, KP 4, KP 5, KP 5A, KP 6W, KP 6B, KP 6S, KP 6AW, KP 6AB, KP 6AS, KP 7W, KP 7B, KP 7S Pressure switch types KP 1, KP 2, KP 5, KP 7W, KP 7B Danfoss CCC 2024010305641303 Danfoss CCC 2024010305686618 Danfoss EU 060-9653.AK UL E31024 Pressure switches & Thermostats Danfoss MD 060-9638.AA BV SMS.W.II-2179-C.0 BV 03650-K0 BV DNV GL TAA00001VZ Rev. 1 LR21358064TA KP7W Pressure Switch, WEB060-8073 KP7W Pressure Switch, WEB060-8073 Pressure switch, KP7W 060-544466
