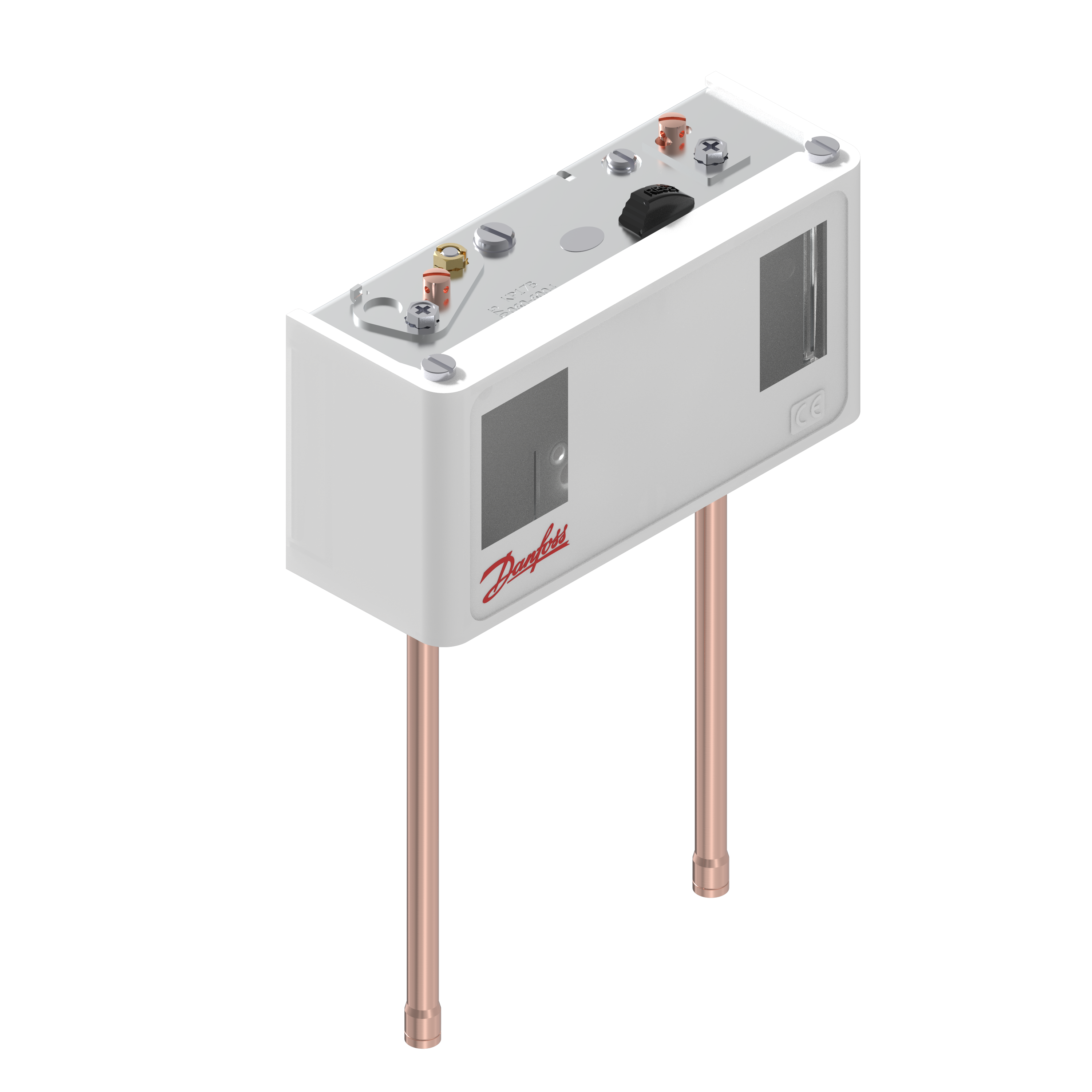

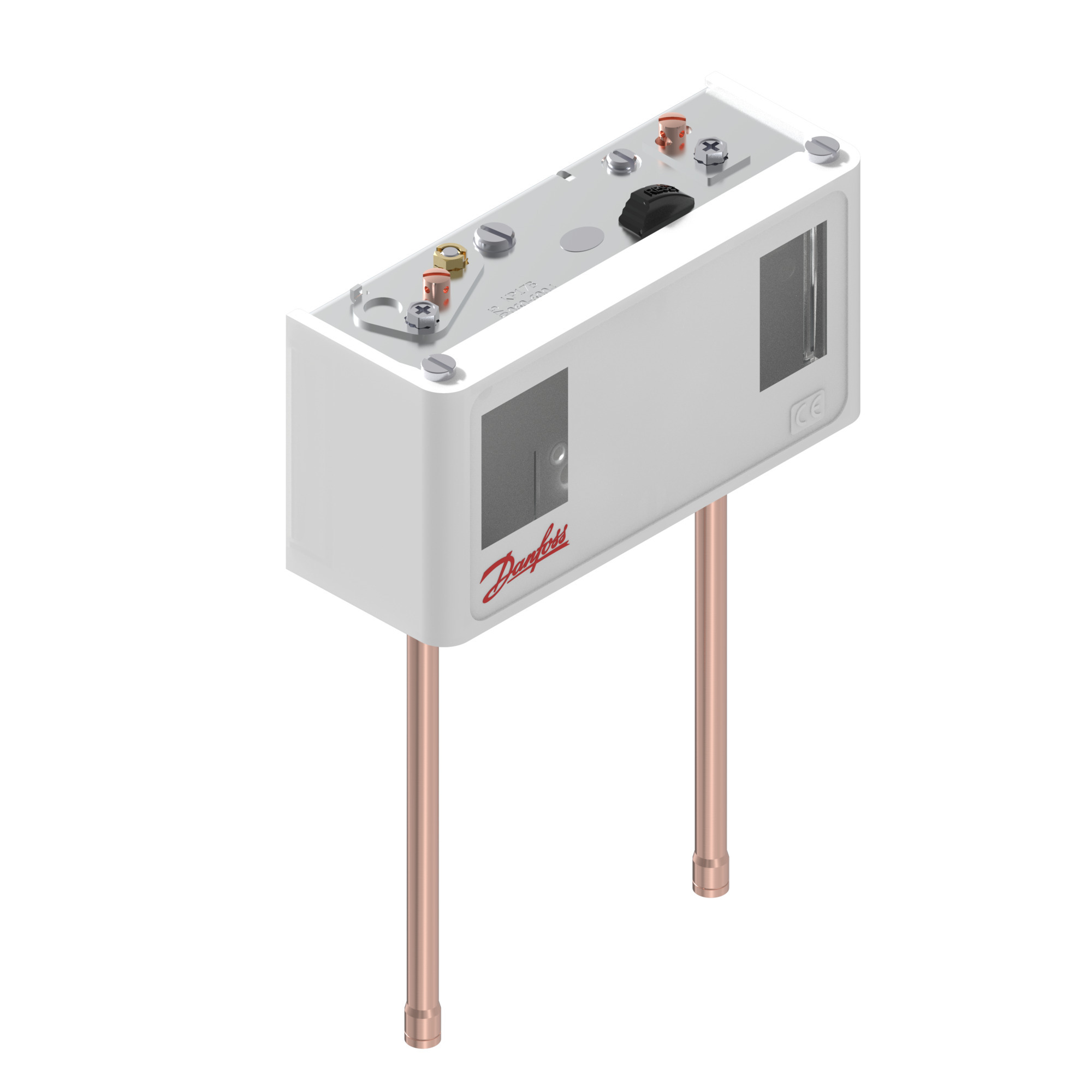

060-600466

Part Number: 060-600466
060-600466
Manufacturer
Danfoss
Part number
060-600466
Category

Product Information

Extended Description

060-600466 Danfoss: Regulation left side [bar]Pe: -0.20 - 7.50, Regulation right side [bar]Pe: 8.0 - 32.0, Differential left side [bar]: 0.70 - 4.00, Differential right side [bar]: 4.0, Contact function: SPDT+SPST(NO), Reset function, left side: Auto, Reset function, right side: Manual Max
Gross weight
0.505 Kilogram
Net weight
0.46 Kilogram
Volume
1.24 Liter
EAN
5702428011198
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Application note
Not applicable for liquid line
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT+SPST(NO)
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V,Terminal D: 50 VA, 400 V
Contain batteries
No
Differential left side [bar] [max]
4 bar
Differential left side [bar] [min]
0.7 bar
Differential left side [psi] [max]
58 psi
Differential left side [psi] [min]
10 psi
Differential right side [bar]
4 bar
Differential right side [psi]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max.test press.left side[bar]
20 bar
Max.test press.right side[bar]
35 bar
MWP left side [bar] Pe
17 bar
MWP left side [psig] Pe
245 psig
MWP right side [bar] Pe
32 bar
MWP right side [psig] Pe
464 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Industrial pack
PED category
IV
Pressure connection size
6 mm
Pressure connection standard
EN 1254-1
Pressure connection type
Solder, ODF
Pressure Male/Female
Female
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Dual Pressure Control
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
36 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B
Regulation left side [bar]Pe [max]
7.5 bar
Regulation left side [bar]Pe [min]
-0.2 bar
Regulation left side range Pe
6 inHg - 108 psig
Regulation right side [bar]Pe [max]
32 bar
Regulation right side [bar]Pe [min]
8 bar
Regulation right side [psig]Pe [max]
464 psig
Regulation right side [psig]Pe [min]
116 psig
Reset function, left side
Auto
Reset function, right side
Manual Max
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Serviceable
No
Type
KP17B
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
UL evaluated
Yes
017-420566
Switches accessories, Reducing Nipple
060-003266
Switches accessories, Protective Cap For KP Dual
060-011366
Switches accessories, Cover For KP Dual
060-018966
Switches accessories, Locking Plate With Screws
060-035066
Switches accessories, IP55 Enclosure For KP (Dual)
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-105766
Switches accessories, Sealing Screw
060-105966
Switches accessories, Screwed Cable Entry With Nut
060-109866
Switches accessories, Top Plate For KP Dual
Pressure switch Type KP, Spare parts and accessories Pressure switch, type KP Pressure switch (cutting ring couplig) Type KP Pressure switch KP 15, KP 15A, KP 17W, KP 17B, KP 17WB, KP 47WB Pressure switch KP 17B, KP 17W and KP 17WB Pressure switch, types KP 15, KP 17W, KP 17B, KP 25 Pressure switch types KP 1, KP 2, KP 5, KP 7W, KP 7B Danfoss CCC 2024010305641303 Danfoss CCC 2024010305686618 Danfoss EU 060-9653.AK UL E31024 Pressure switches & Thermostats Danfoss MD 060-9638.AA BV SMS.W.II-2179-C.0 BV 03650-K0 BV DNV GL TAA00001VZ Rev. 1 LR21358064TA Pressure switch, KP17B_060-127466, 060-600466, 060-600491 KP17B Pressure switch KP17B Pressure switch
