060-600966
Part Number: 060-600966
Product Information
Extended Description
060-600966 Danfoss: Regulation range [bar] Pe: 8.00 - 32.00, Differential [bar]: 4.00, Contact function: SPDT, Reset function: Manual Max, Pressure connection type: Solder, ODF, Pressure connection size: 6 mm, Pressure Male/Female: Female, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 35.0
Gross weight
0.324 Kilogram
Net weight
0.298 Kilogram
Volume
0.937 Liter
EAN
5702428089999
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-25 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-13 °F
Approval
BV,CCC,CE,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PED,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Burst pressure [bar]
140 bar
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Differential [bar]
4 bar
Differential [psi]
58 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
In scope of WEEE
Yes
Lubricants compatibility
Oilfree applications
Max. test pressure [bar] Pe
35 bar
Max. test pressure [psig]
510 psig
Max. Working Pressure [bar]
35 bar
Max. Working Pressure [psig]
510 psig
Oil free refrigerants
R134a,R513A,R515B
Packing format
Industrial pack
PED category
IV
Pressure connection size
6 mm
Pressure connection standard
EN 1254-1
Pressure connection type
Solder, ODF
Pressure Male/Female
Female
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
48 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R113,R1234yf,R1234yz,R1234ze(E),R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R454C,R455A,R507A,R513A,R515B
Regulation range [bar] Pe [max]
32 bar
Regulation range [bar] Pe [min]
8 bar
Regulation range [psig] Pe [max]
464 psig
Regulation range [psig] Pe [min]
116 psig
Reset function
Manual Max
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Serviceable
No
Type
KP7B
UK RoHS compliance
Yes
UL approval file name
E31024
UL approved refrigerants
R113,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A,R515B
UL evaluated
Yes
017-420566
Switches accessories, Reducing Nipple
060-003166
Switches accessories, Protective Cap For KP Single
060-008666
Switches accessories, Cover For KP Single
060-018966
Switches accessories, Locking Plate With Screws
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-062866
Switches accessories, IP55 Transparent Enclosure
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-105766
Switches accessories, Sealing Screw
060-105966
Switches accessories, Screwed Cable Entry With Nut
Pressure switch, type KP
Pressure switch, KP 1, KP 1W, KP 1A, KP 2, KP 4, KP 5, KP 5A, KP 6W, KP 6B, KP 6S, KP 6AW, KP 6AB, KP 6AS, KP 7W, KP 7B, KP 7S
Danfoss CCC 2024010305641303
Danfoss CCC 2024010305686618
Danfoss EU 060-9653.AK
UL E31024
Pressure switches & Thermostats
Danfoss MD 060-9638.AA
BV SMS.W.II-2179-C.0
BV 03650-K0 BV
DNV GL TAA00001VZ Rev. 1
LR21358064TA

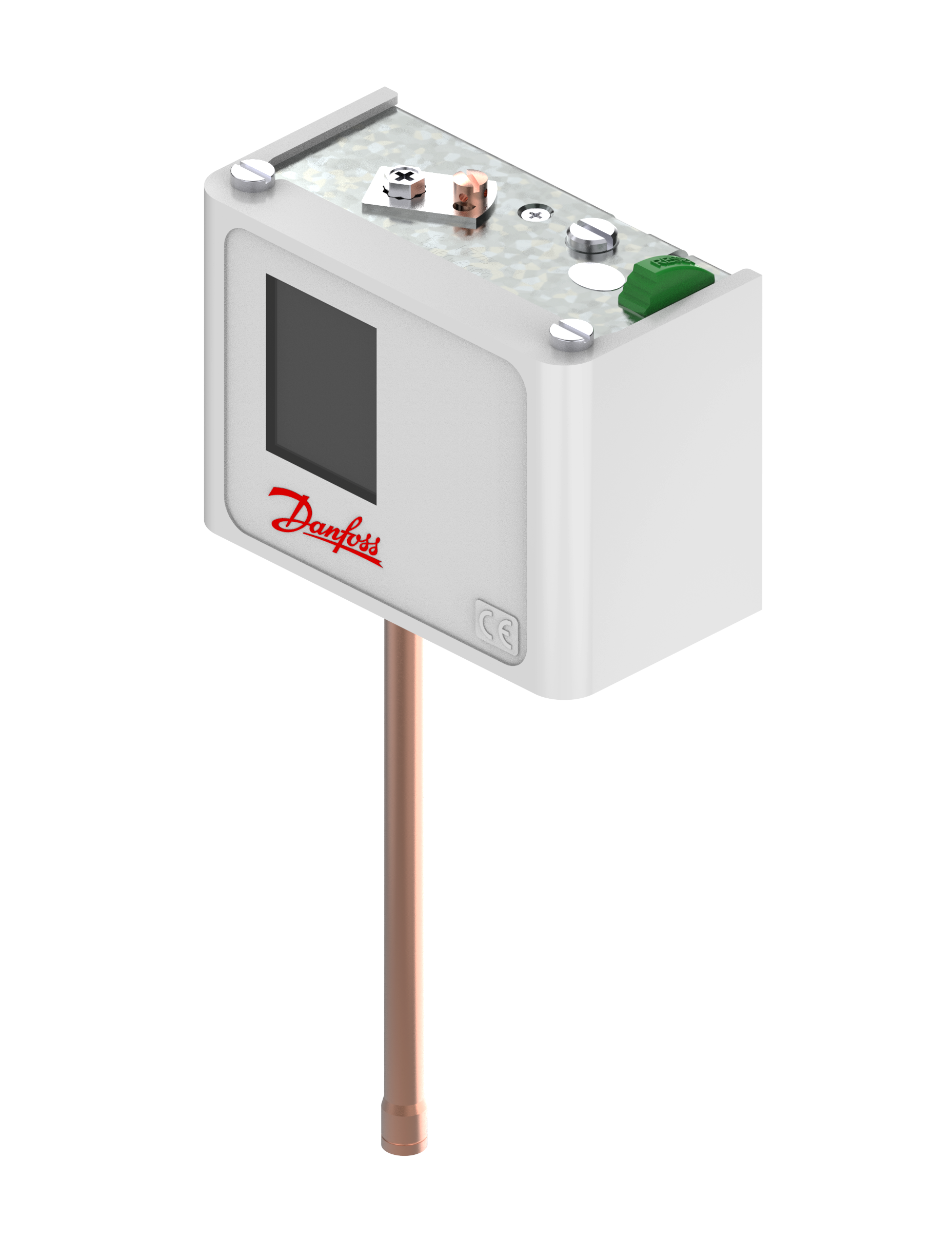

Pressure switch, KP7B, Left

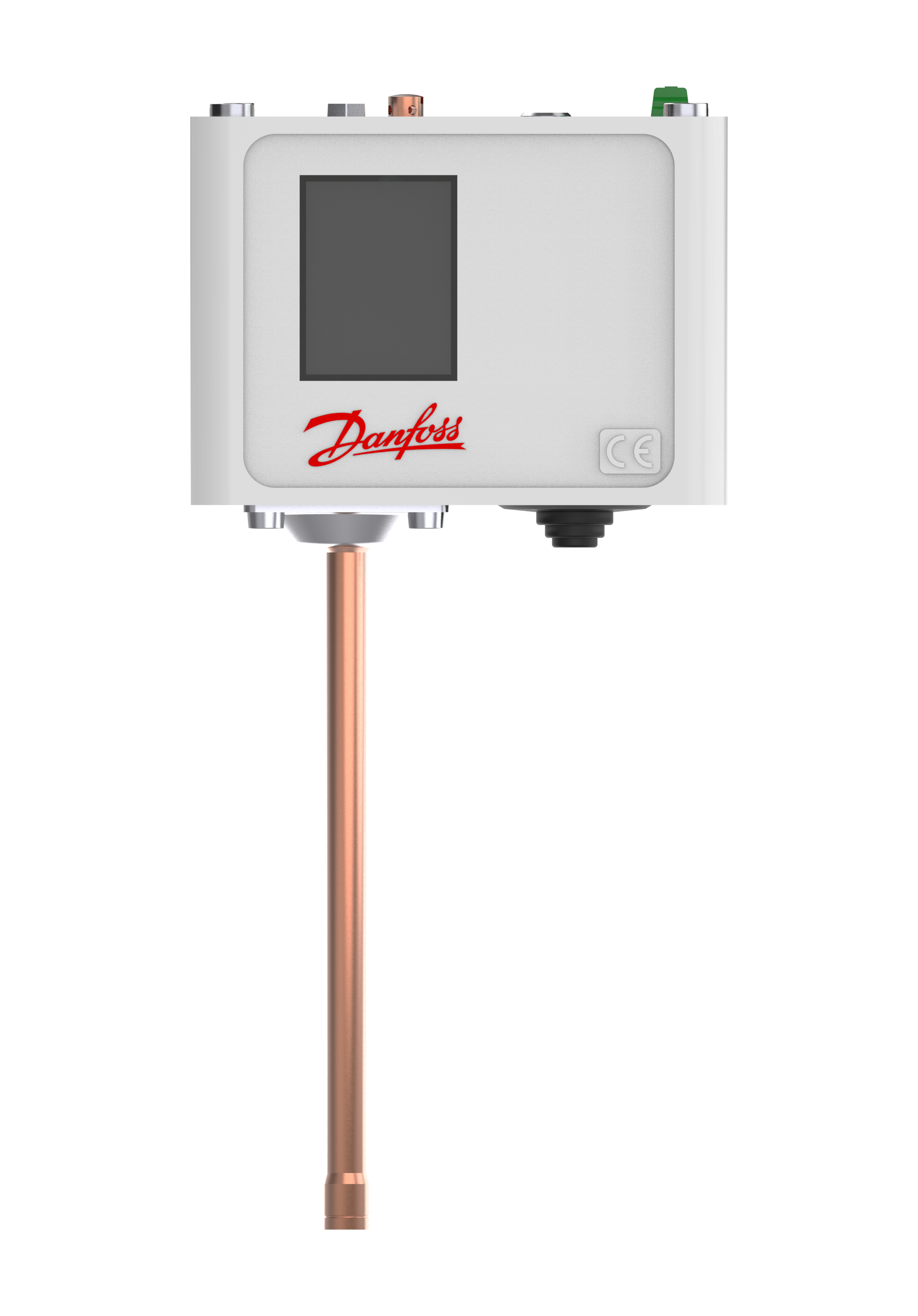

Pressure switch, KP7B, F

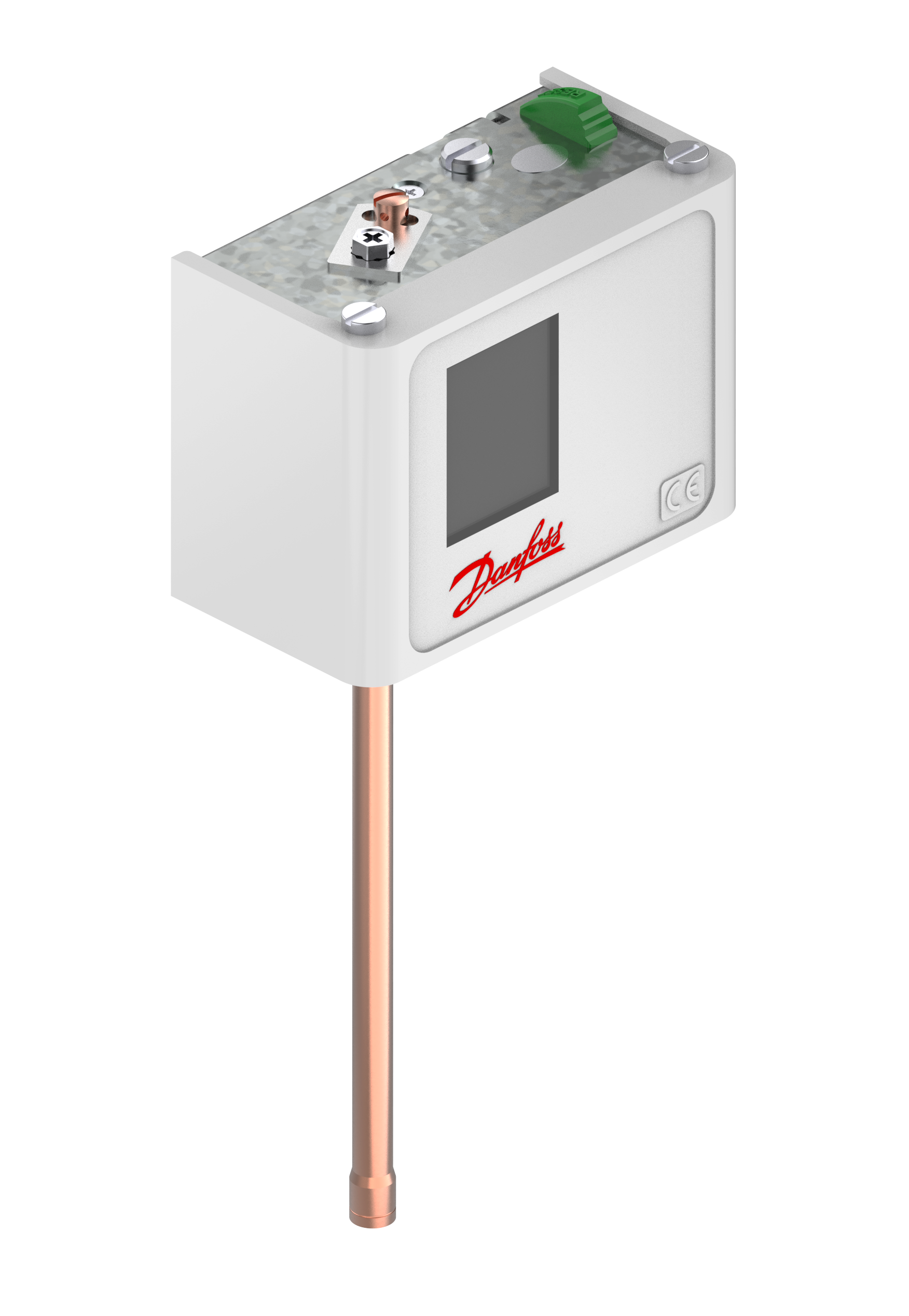

Pressure switch, KP7B, L
KP7B Pressure switch
KP7B Pressure switch
