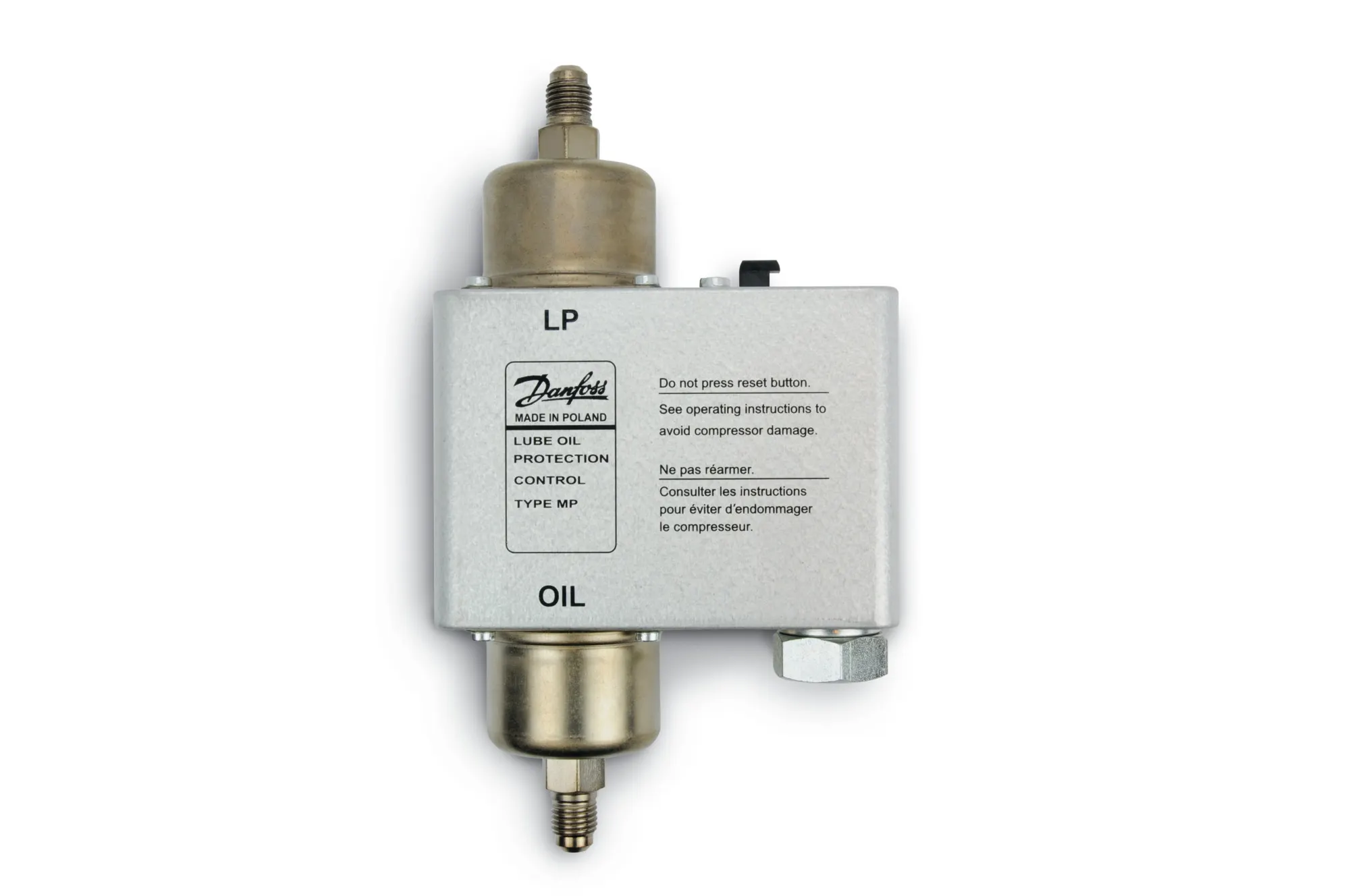

060B016866

Part Number: 060B016866
060B016866
Manufacturer
Danfoss
Part number
060B016866
Category

Product Information

Extended Description

060B016866 Danfoss: Reset function: Manual Min, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0
Gross weight
0.756 Kilogram
Net weight
0.684 Kilogram
Volume
1.972 Liter
EAN
5702428365482
Adjustment
Cut out for falling pressure
Amb. Temp. Note
Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CCC,CE,CMIM,EAC,GL,LLC CDC EURO-TYSK,LVD,RoHS,RoHS China,TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.2 bar
Contact function
SPDT
Contact rating
AC15=2 A, 250 V,DC13=0.2 A, 250 V
Contain batteries
No
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
Pg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 250V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 2A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.0 mm2,Flex, no ferrules: 0.2-1.5 mm2,Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP
IP20
Equipment
Thermal time relay
EU RoHS compliance
Out of scope
Fixed Differential [bar]
0.65 bar
Fixed Differential [psi]
9 psi
Max. test pressure [bar] Pe
22 bar
Max. test pressure [psig]
319 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Operat. range LP side [bar] Pe [max]
12 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
175 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Other RoHS documentation
Saudi Arabia RoHS
Packing format
Multi pack
Pressure connection size
1/4 in
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Product accessories
Generic accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
21 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R11,R113,R12,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507C,R513A,R515B
Relay release time [s]
90 s
Reset function
Manual Min
SCIP dossier no.
d6c79256-254f-4a74-9674-fbd37043a658
Serviceable
No
Type
MP54
UK RoHS compliance
Out of scope
UL approved refrigerants
R11,R113,R12,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507C,R513A,R515B
Differential pressure switch MP 54, MP 55 and MP 55A Differential pressure switch, type MP54, MP55 and MP55A Differential Pressure Control, types MP 54, MP 55, MP 55A Differential pressure switch / Lube oil protection control MP 54 and MP 55 Danfoss EU 060-9680.AB UL E31024 Pressure switches & Thermostats Danfoss MD 060-9639.AB DNV GL TAA0000182 Rev. 2 RINA ELE086320XG-006 Danfoss UK 060-9689.AA MP Differential Pressure Switch, Lube Oil Protection Switch MP dimensions, versions with reset, cabinet only MP dimensions, metric units MP 54, MP 55 installation dimensions (Imp. units) MP 54, MP 55 dimensions (Imp. units) MP, with PG 13.5 connections MP54 Diff. Pressure Control MP54 Diff. Pressure
