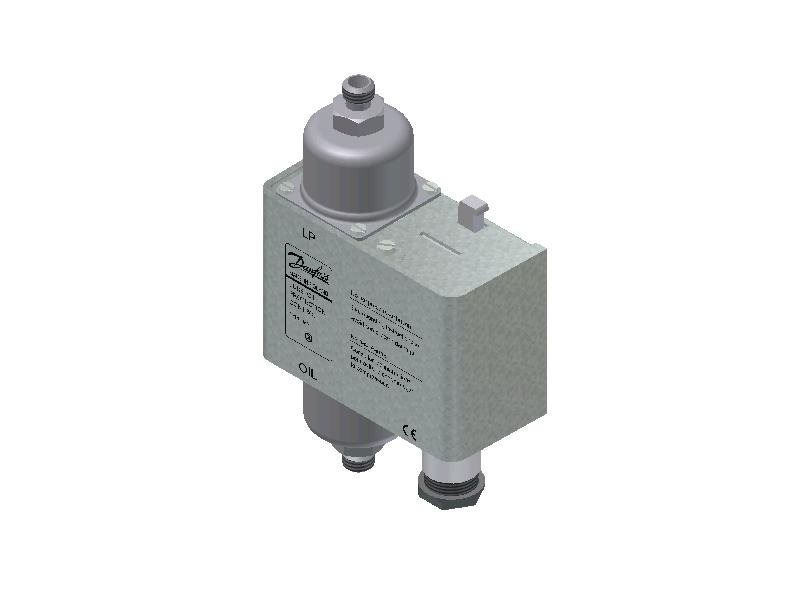

060B018291

Part Number: 060B018291
060B018291
Manufacturer
Danfoss
Part number
060B018291
Category

Product Information

Extended Description

060B018291 Danfoss: Diff.press.setting range [bar]: 0.30 - 4.50, Reset function: Manual Min, Pressure connection type: M, Pressure connection size: 12 x 1.5, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0
Gross weight
0.81 Kilogram
Net weight
0.692 Kilogram
Volume
1.886 Liter
EAN
5702424499686
Adjustment
Cut out for falling pressure
Amb. Temp. Note
Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CCC,CE,CMIM,EAC,LLC CDC EURO-TYSK,LVD,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.2 bar
Contact function
SPDT
Contact rating
AC15=2 A, 250 V,DC13=0.2 A, 250 V
Contain batteries
No
Diff.press.setting range [bar] [max]
4.5 bar
Diff.press.setting range [bar] [min]
0.3 bar
Diff.press.setting range [MPa] [max]
0.45 MPa
Diff.press.setting range [MPa] [min]
0.03 MPa
Diff.press.setting range [psi] [max]
65 psi
Diff.press.setting range [psi] [min]
4.3 psi
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
Pg 13.5
Electrical connection standard
DIN 40430
EN 60947 electrical properties
Insulation: 250V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 2A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.0 mm2,Flex, no ferrules: 0.2-1.5 mm2,Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP
IP20
Equipment
Thermal time relay
EU RoHS compliance
Out of scope
Factory setting [bar]
0.65 bar
Factory setting [psig]
9 psig
Max. test pressure [bar] Pe
22 bar
Max. test pressure [psig]
319 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Operat. range LP side [bar] Pe [max]
12 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
175 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Packing format
Multi pack
Pressure connection notes
Cutting ring 6mm tube
Pressure connection size
12 x 1.5
Pressure connection standard
ISO 8434-1
Pressure connection type
M
Pressure Male/Female
Male
Product accessories
Generic accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
21 pc
Refrigerants
R11,R12,R123,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507C,R513A,R515B,R717
Relay release time [s]
45 s
Reset function
Manual Min
Serviceable
No
Type
MP55A
UK RoHS compliance
Out of scope
UL approved refrigerants
R11,R12,R123,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507C,R513A,R515B
Differential pressure switch MP 54, MP 55 and MP 55A Differential pressure switch, type MP54, MP55 and MP55A Differential Pressure Control, types MP 54, MP 55, MP 55A Danfoss EU 060-9680.AB UL E31024 Pressure switches & Thermostats Danfoss MD 060-9639.AB Danfoss UK 060-9689.AA MP55A_060B018291 MP55A Diff. Pressure Control
