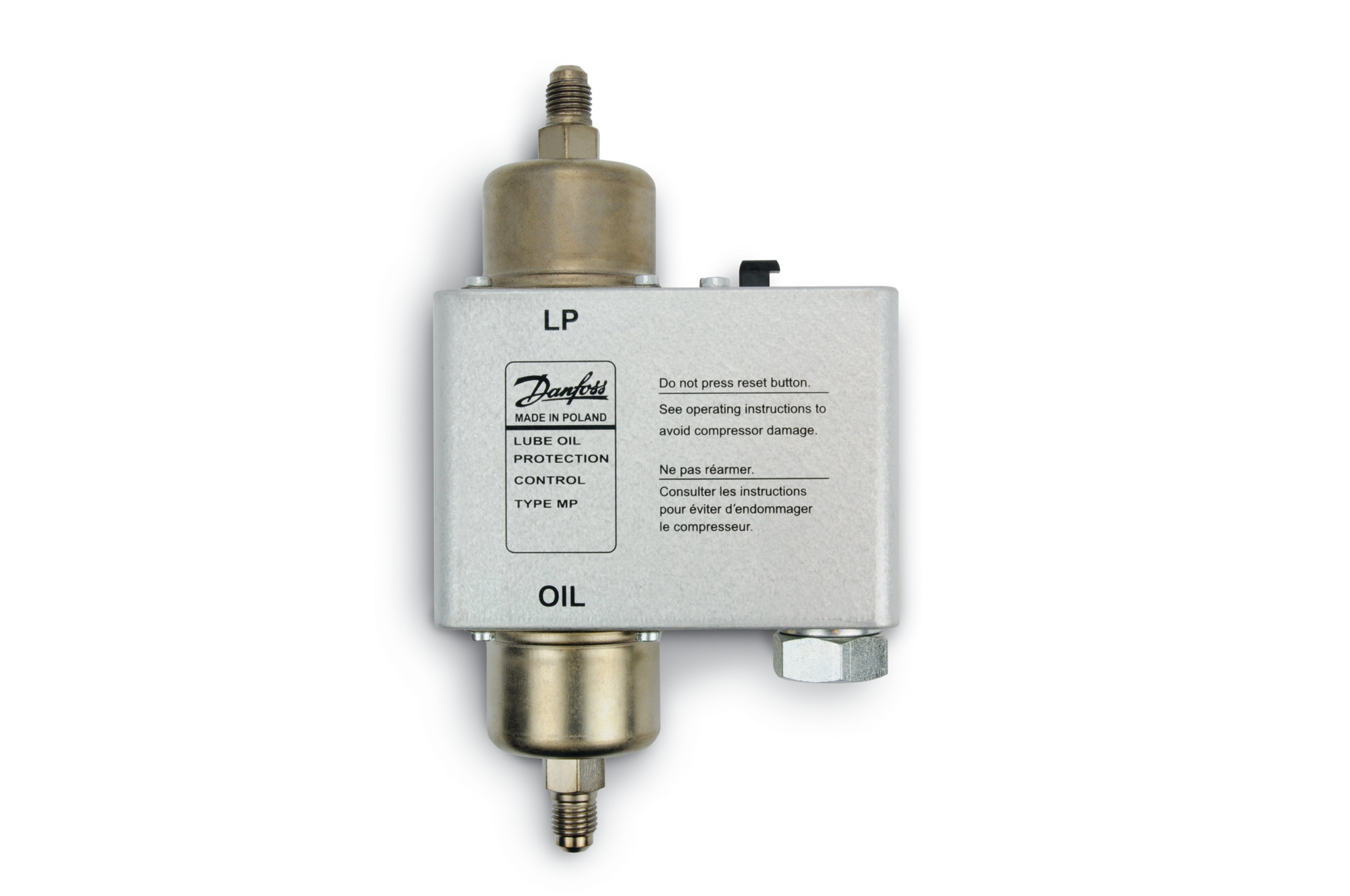

060B201266

Part Number: 060B201266
060B201266
Manufacturer
Danfoss
Part number
060B201266
Category

Product Information

Extended Description

060B201266 Danfoss: Diff.press.setting range [bar]: 0.30 - 4.50, Reset function: Manual Min, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0
Gross weight
0.76 Kilogram
Net weight
0.705 Kilogram
Volume
1.972 Liter
EAN
5702428365918
Adjustment
Cut out for falling pressure
Amb. Temp. Note
Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CCC,CE,CMIM,EAC,GL,LLC CDC EURO-TYSK,LVD,RINA,RoHS,RoHS China,TYSK,UKCA,c UL us UL873, CS C22.2
Approval file name
E31024
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.2 bar
Contact function
SPDT
Contact rating
AC=2 A, 250 V,DC=0.2 A, 240 V
Contain batteries
No
Diff.press.setting range [bar] [max]
4.5 bar
Diff.press.setting range [bar] [min]
0.3 bar
Diff.press.setting range [MPa] [max]
0.45 MPa
Diff.press.setting range [MPa] [min]
0.03 MPa
Diff.press.setting range [psi] [max]
65 psi
Diff.press.setting range [psi] [min]
4.3 psi
Electrical conn. Male/Female
Female
Electrical connection
Swivel cable connector
Electrical connection size
NPSM 1/2 - 14
Electrical connection standard
ANSI/ASME B1.20.1
EN 60947 electrical properties
Insulation: 250V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 2A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.0 mm2,Flex, no ferrules: 0.2-1.5 mm2,Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP
IP20
Equipment
Glow lamp,Thermal time relay
EU RoHS compliance
Out of scope
Factory setting [bar]
0.65 bar
Factory setting [psig]
9 psig
Max. test pressure [bar] Pe
22 bar
Max. test pressure [psig]
319 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Operat. range LP side [bar] Pe [max]
12 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
175 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Packing format
Multi pack
Pressure connection size
1/4 in
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Product accessories
Generic accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
21 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R11,R113,R12,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507C,R513A,R515B
Relay release time [s]
60 s
Reset function
Manual Min
SCIP dossier no.
d6c79256-254f-4a74-9674-fbd37043a658
Serviceable
No
Type
MP55
UK RoHS compliance
Out of scope
UL approved refrigerants
R11,R113,R12,R124,R134a,R22,R404A,R407A,R407C,R407F,R407H,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507C,R513A,R515B
UL evaluated
Yes
060-017166
Generic accessories, Capillary Tube

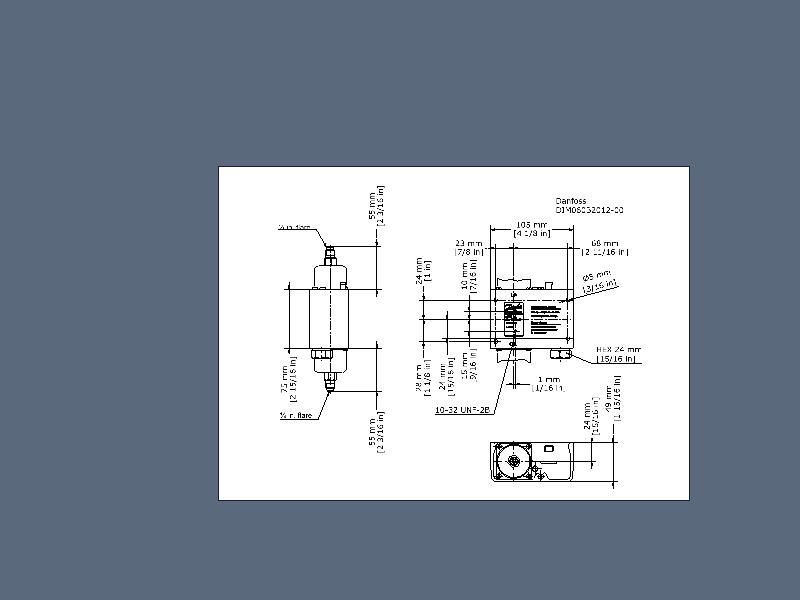

Differential pressure switch MP 54, MP 55 and MP 55A Differential pressure switch, type MP54, MP55 and MP55A Differential Pressure Control, types MP 54, MP 55, MP 55A Differential pressure switch / Lube oil protection control MP 54 and MP 55 Danfoss EU 060-9680.AB UL E31024 Pressure switches & Thermostats Danfoss MD 060-9639.AB DNV GL TAA0000182 Rev. 2 RINA ELE086320XG-006 Danfoss UK 060-9689.AA MP Differential Pressure Switch, Lube Oil Protection Switch MP dimensions, versions with reset, cabinet only MP dimensions, metric units MP 54, MP 55 installation dimensions (Imp. units) MP 54, MP 55 dimensions (Imp. units) MP, with NPSM connections MP55 Diff. Pressure Control MP55 Diff. Pressure Control
