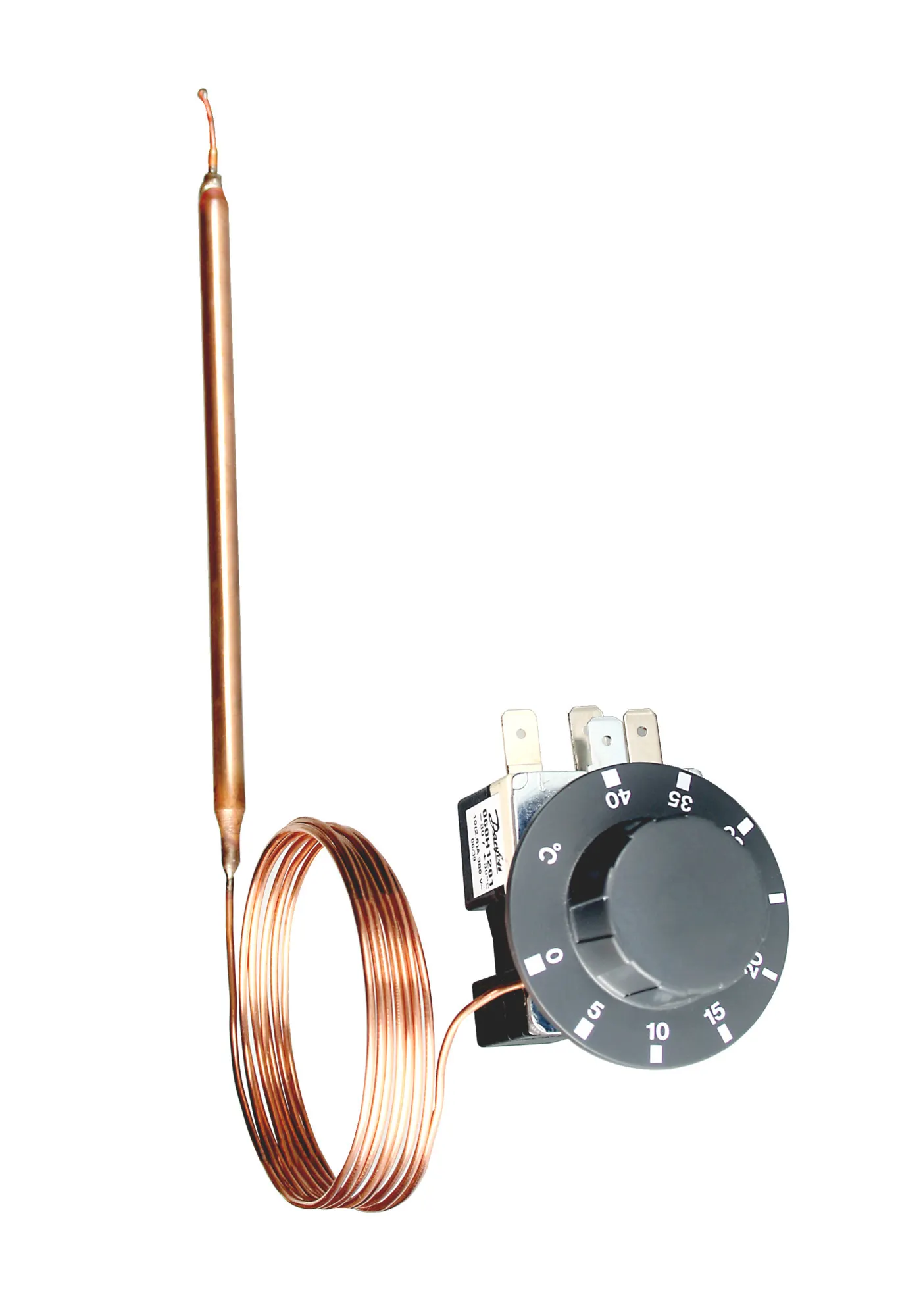

060H1802
Part Number: 060H1802
Product Information
Extended Description
060H1802 Danfoss: Temperature range [°C]: 2 - 40, Reset function: Auto, Contact function: SPDT, Capillary tube length [mm]: 2000, Enclosure rating IP: IP00
Gross weight
0.135 Kilogram
Net weight
0.07 Kilogram
Volume
0.66 Liter
EAN
5702428567152
Ambient temperature range [°C] [max]
55 °C
Ambient temperature range [°C] [min]
-30 °C
Ambient temperature range [°F] [max]
130 °F
Ambient temperature range [°F] [min]
-22 °F
Approval
CE,EAC,EMCD,LVD,RoHS,RoHS China,TYSK
Capillary tube length [mm]
2000 mm
Capillary tube material
Copper
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=1 A, 250 V,AC1=16 A, 250 V,AC3=7,5 A, 250 V
Contain batteries
No
Differential (FS) [K]
3 K
Electrical connection
Clamps Terminal screws
Enclosure rating IP
IP00
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
80 °C
Max. sensor temperature [°F]
176 °F
Mounting method
Panel mounting
Packing format
Industrial pack
Product accessories
Switches accessories
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
48 pc
Reset function
Auto
Sensor size (Ø x L) [in]
15/64 x 4 44/64 in
Sensor size (Ø x L) [mm]
6 x 119 mm
Serviceable
No
Temperature range [°C] [max]
40 °C
Temperature range [°C] [min]
2 °C
Temperature range [°F] [max]
105 °F
Temperature range [°F] [min]
36 °F
Type
UT 73
UK RoHS compliance
Yes
