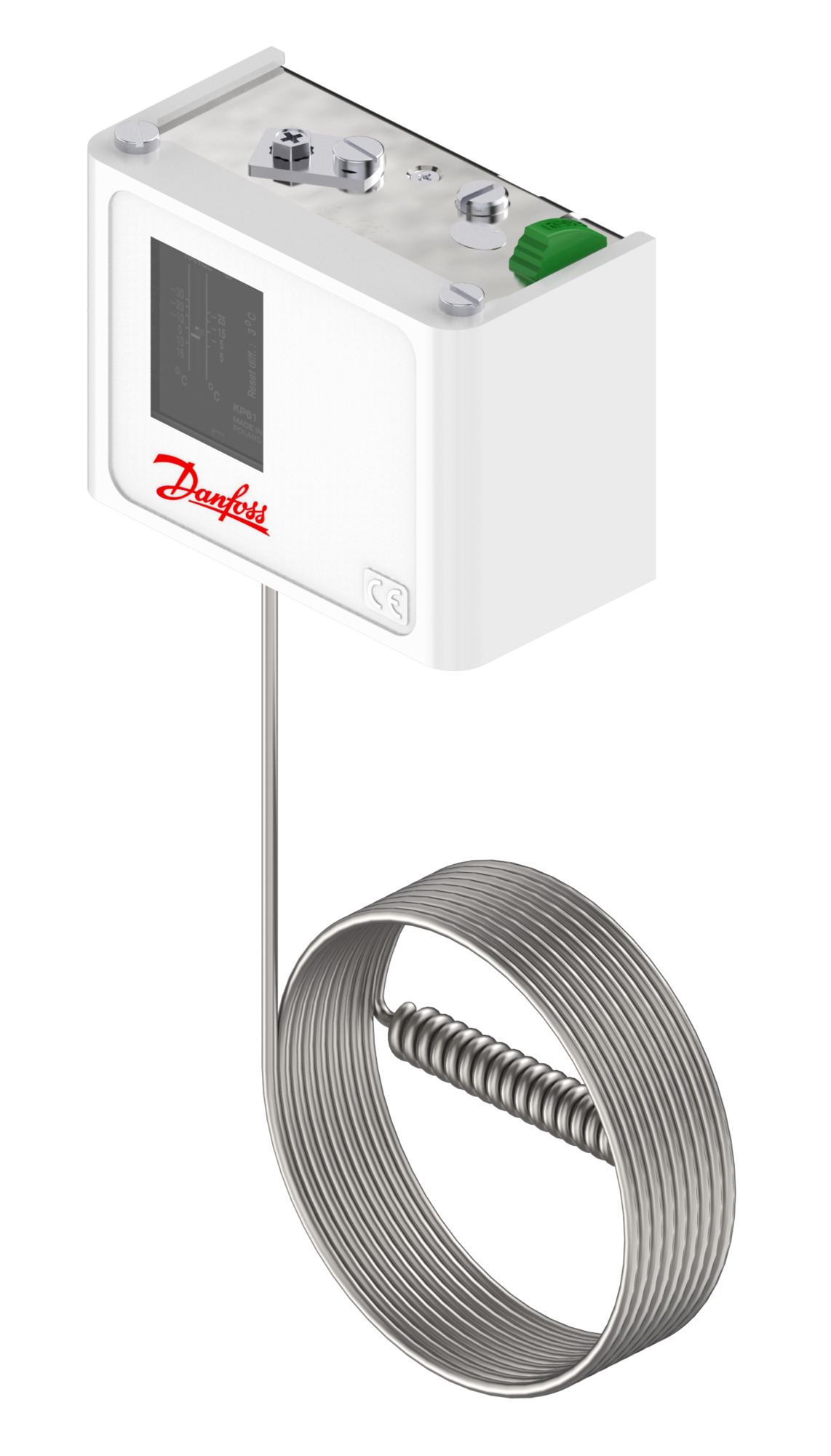

060L110566

Part Number: 060L110566
060L110566
Manufacturer
Danfoss
Part number
060L110566
Category

Product Information

Extended Description

060L110566 Danfoss: Temperature range [°C]: -30 - 15, Reset function: Manual Min, Contact function: SPDT, Sensor type: Remote air coil, Capillary tube length [mm]: 2000, Enclosure rating IP: IP30
Gross weight
0.424 Kilogram
Net weight
0.36 Kilogram
Volume
1.281 Liter
EAN
5702428014526
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
78 3/4 in
Capillary tube length [mm]
2000 mm
CE evaluated
Yes
Charge type
Vapour
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Diff. @ Max. range setting [K]
2 K
Diff. @ Max. range setting[°C]
2 °C
Diff. @ Min. range setting [K]
6 K
Diff. @ Min. range setting[°C]
6 °C
Differential type
Fixed
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
120 °C
Max. sensor temperature [°F]
248 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Manual Min
SCIP dossier no.
be15a44e-80b1-41bd-9578-c8ff1cd7b9f3
Sensor size (Ø x L) [in]
3/8 x 2 3/4 in
Sensor size (Ø x L) [mm]
9.5 x 70 mm
Sensor type
Remote air coil
Serviceable
No
Temperature range [°C] [max]
15 °C
Temperature range [°C] [min]
-30 °C
Temperature range [°F] [max]
59 °F
Temperature range [°F] [min]
-22 °F
Type
KP61
UK RoHS compliance
Yes
UL approval file name
E31024
UL evaluated
Yes
017-420166
Switches accessories, Sensor Holder Kit
017-420466
Switches accessories, Clamping Band Ass'y
060-003166
Switches accessories, Protective Cap For KP Single
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-062866
Switches accessories, IP55 Transparent Enclosure
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-109766
Switches accessories, Top Plate For KP Single
