060L115966

Part Number: 060L115966
060L115966
Manufacturer
Danfoss
Part number
060L115966
Category

Product Information

Extended Description

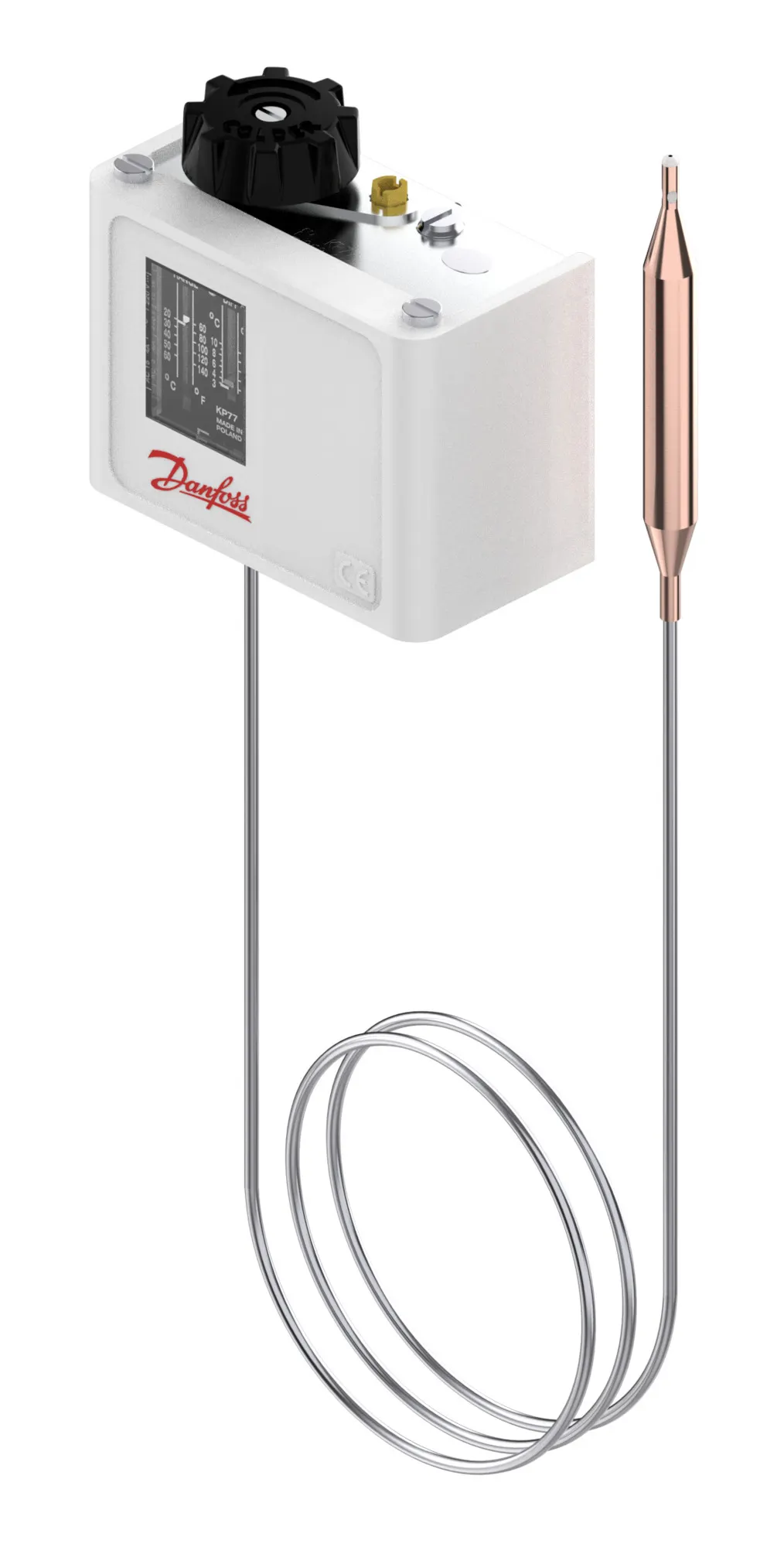

060L115966 Danfoss: Temperature range [°C]: 50 - 100, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Enclosure rating IP: IP30
Gross weight
0.438 Kilogram
Net weight
0.369 Kilogram
Volume
1.436 Liter
EAN
5715162456859
Alarm Signal
Rising
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,DNV,EAC,GL,LLC CDC EURO-TYSK,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
78 3/4 in
Capillary tube length [mm]
2000 mm
CE evaluated
Yes
Charge type
Adsorption
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=6 A, 440 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Diff. @ Max. range setting [K] [max]
15 K
Diff. @ Max. range setting [K] [min]
5 K
Diff. @ Max. range setting[°C] [max]
15 °C
Diff. @ Max. range setting[°C] [min]
5 °C
Diff. @ Min. range setting [K] [max]
15 K
Diff. @ Min. range setting [K] [min]
5 K
Diff. @ Min. range setting[°C] [max]
15 °C
Diff. @ Min. range setting[°C] [min]
5 °C
Differential (FS) [K]
15 K
Differential type
Fixed
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory setting (FS) [°C]
65 °C
Factory setting (FS) [°F]
149 °F
Factory setting type
Dedicated
In scope of WEEE
Yes
Max. sensor temperature [°C]
150 °C
Max. sensor temperature [°F]
302 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
14 pc
Reset function
Auto
Sensor size (Ø x L) [in]
3/8 x 3 3/8 in
Sensor size (Ø x L) [mm]
9.5 x 85 mm
Sensor type
Remote bulb
Serviceable
No
Temperature range [°C] [max]
100 °C
Temperature range [°C] [min]
50 °C
Temperature range [°F] [max]
212 °F
Temperature range [°F] [min]
122 °F
Type
KP79
UK RoHS compliance
Yes
UL approval file name
E31024,MH27572
UL evaluated
Yes
Pressure switch and thermostat type KP and KPI Thermostat type KP Thermostats Type KP Thermostat KP 61 – KP 85 Danfoss CCC 2024010305641303 Danfoss EU 060-9650AF UL E31024 Pressure switches & Thermostats Danfoss MD 060-9638.AA BV SMS.W.II-2179-C.0 BV 02281-K0 BV DNV TAA000026F Rev.01 RINA ELE086320XG-001 UL MH27572 Thermostat, WEB060L8033 Thermostat, WEB060L8033 Thermostat, WEB060L8033
