060L117166

Part Number: 060L117166
060L117166
Manufacturer
Danfoss
Part number
060L117166
Category

Product Information

Extended Description

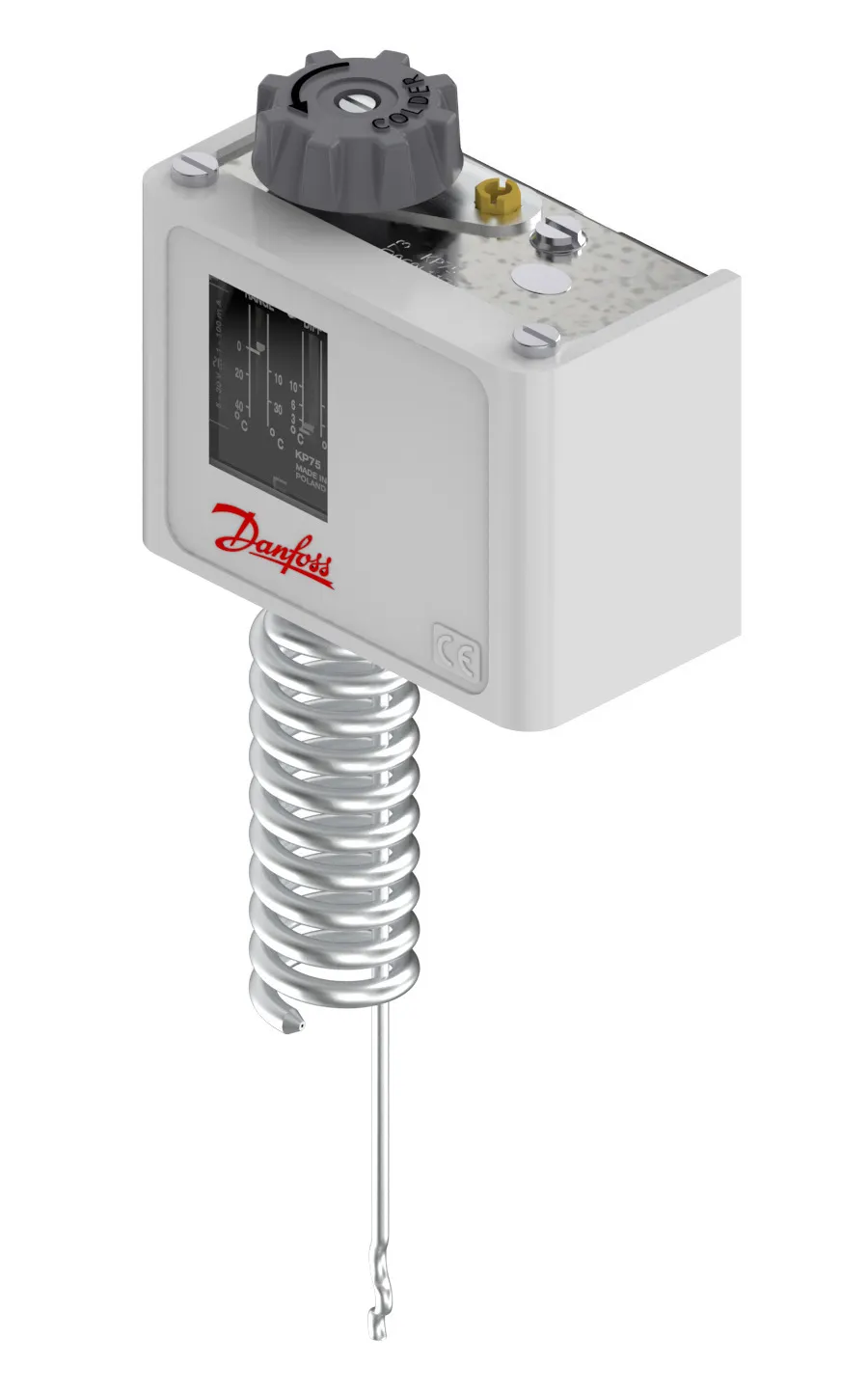

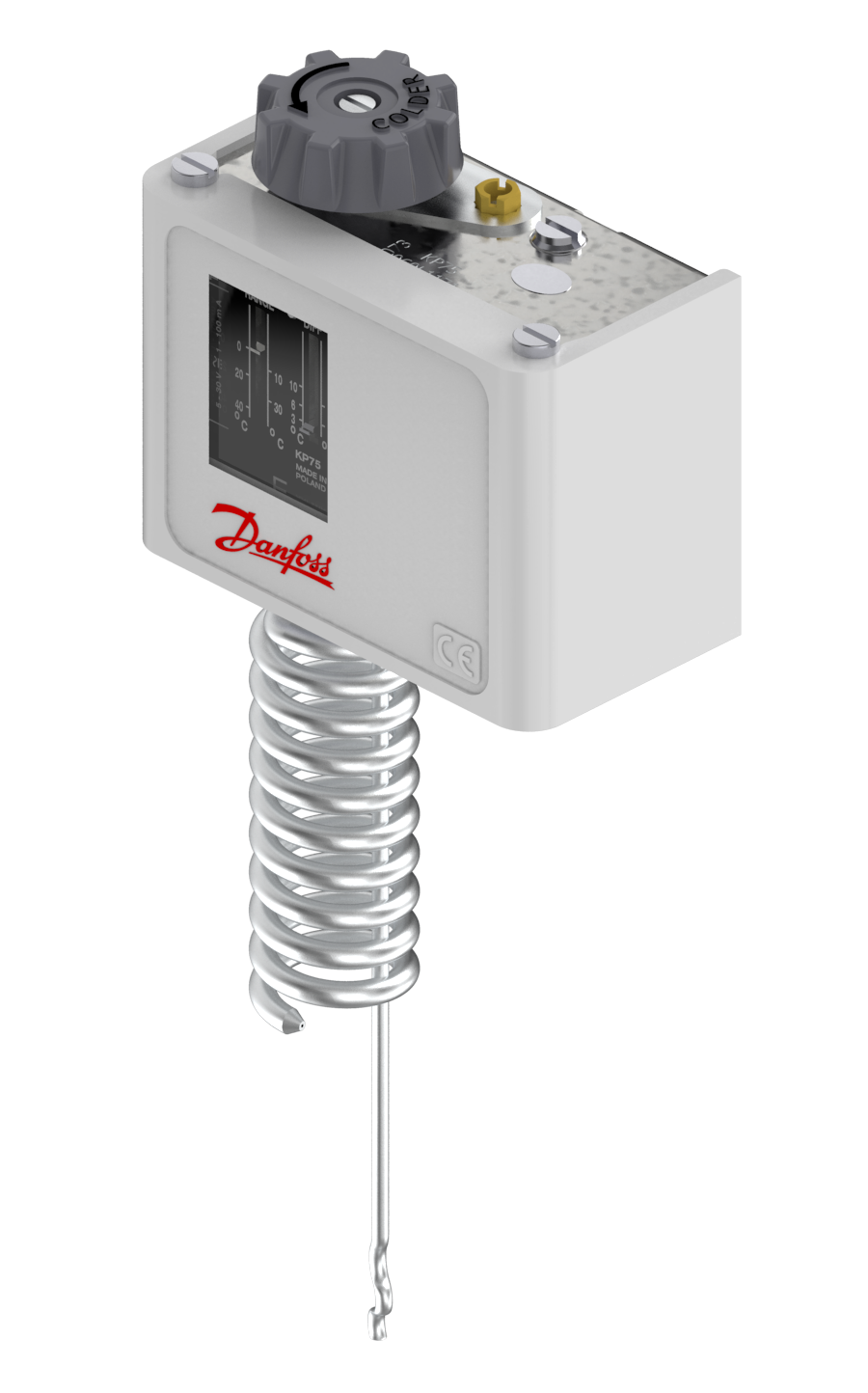

060L117166 Danfoss: Temperature range [°C]: 0 - 40, Reset function: Auto, Contact function: SPDT gold, Sensor type: Room sensor, Enclosure rating IP: IP30
Gross weight
0.42 Kilogram
Net weight
0.356 Kilogram
Volume
1.281 Liter
EAN
5702423148769
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2
CE evaluated
Yes
Charge type
Adsorption
China RoHS compliance
Yes
Contact function
SPDT gold
Contact rating
AC15=4 A, 400 V,AC1=10 A, 400 V,AC3=6 A, 400 V,DC13=12 W, 220 V,for gold 1…30mA, 5...30V
Contain batteries
No
Diff. @ Max. range setting [K]
3 K
Diff. @ Max. range setting[°C]
3 °C
Diff. @ Min. range setting [K] [max]
10 K
Diff. @ Min. range setting [K] [min]
4 K
Diff. @ Min. range setting[°C] [max]
10 °C
Diff. @ Min. range setting[°C] [min]
4 °C
Differential type
Adjustable
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
80 °C
Max. sensor temperature [°F]
176 °F
Packing format
Multi pack
Parts included
screws
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Sensor size (Ø x L) [in]
1 x 3 in
Sensor size (Ø x L) [mm]
25 x 78 mm
Sensor type
Room sensor
Serviceable
No
Temperature range [°C] [max]
40 °C
Temperature range [°C] [min]
0 °C
Temperature range [°F] [max]
104 °F
Temperature range [°F] [min]
32 °F
Type
KP75
UK RoHS compliance
Yes
UL approval file name
E31024,MH27572
UL evaluated
Yes
060-003166
Switches accessories, Protective Cap For KP Single
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-062866
Switches accessories, IP55 Transparent Enclosure
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-109766
Switches accessories, Top Plate For KP Single
