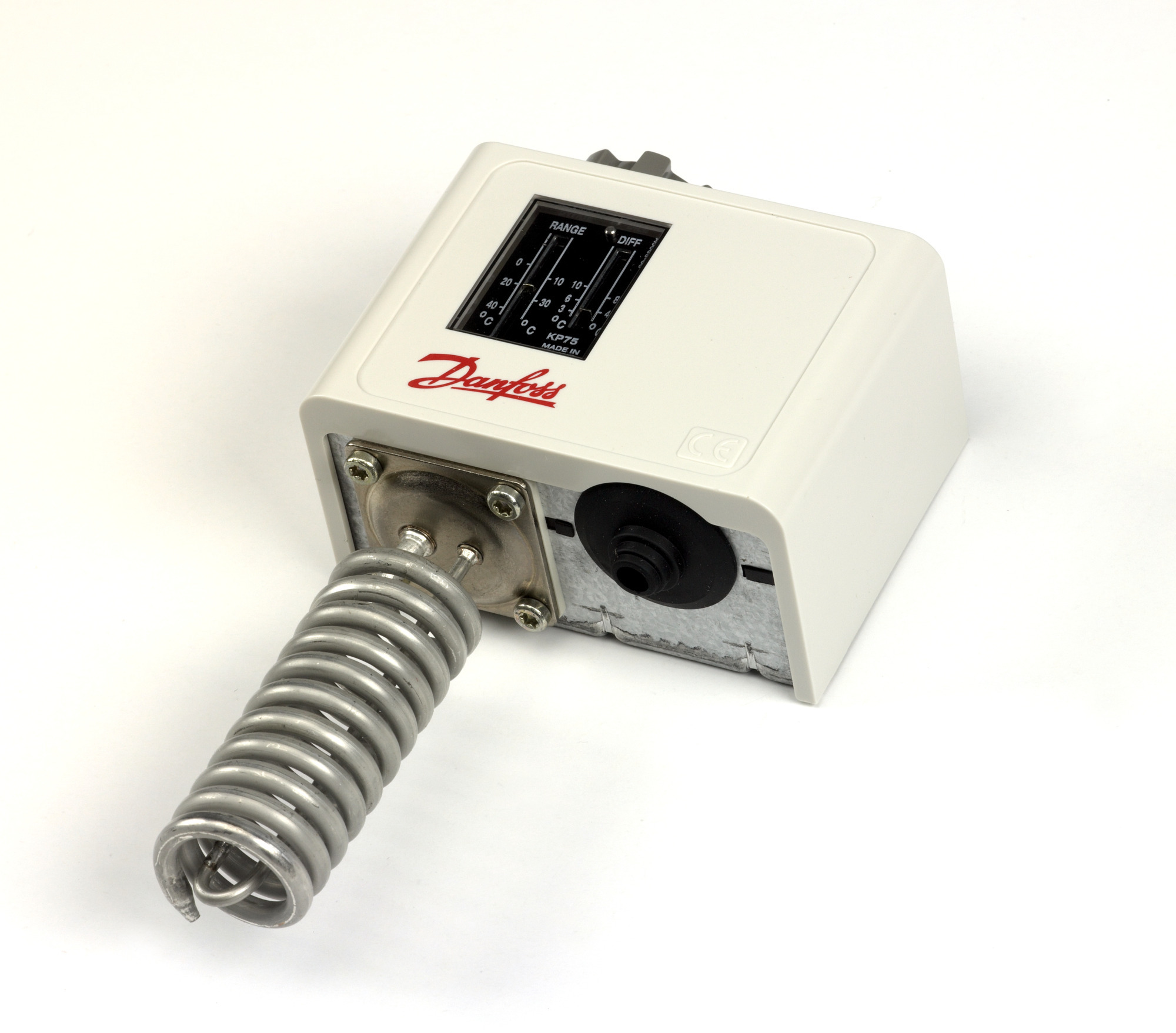

060L120066
Part Number: 060L120066
Product Information
Extended Description
060L120066 Danfoss: Temperature range [=C2=B0C]: 5 - 45, Reset function: Auto, Contact function: SPDT, Sensor type: Room sensor, Enclosure rating IP: IP30
Gross weight
0.512 Kilogram
Net weight
0.448 Kilogram
Volume
1.281 Liter
EAN
5702423147380
Amb. Temp. Note
80 =C2=B0C/176 =C2=B0F for max 120 min
Ambient temperature range [=C2=B0C] [max]
65 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-40 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
150 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-40 =C2=B0F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL353, CS C22.2,c UL us UL873, CS C22.2
CE evaluated
Yes
Charge type
Vapour
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=3D10 A, 400 V,AC1=3D16 A, 400 V,AC3=3D16 A, 400 V,DC13=3D12 W, 220 V,LR=3D112 A, 400 V
Contain batteries
No
Diff. @ Max. range setting [K] [max]
8 K
Diff. @ Max. range setting [K] [min]
2 K
Diff. @ Max. range setting[=C2=B0C] [max]
8 =C2=B0C
Diff. @ Max. range setting[=C2=B0C] [min]
2 =C2=B0C
Diff. @ Min. range setting [K] [max]
20 K
Diff. @ Min. range setting [K] [min]
5 K
Diff. @ Min. range setting[=C2=B0C] [max]
20 =C2=B0C
Diff. @ Min. range setting[=C2=B0C] [min]
5 =C2=B0C
Differential type
Adjustable
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
Equipment
Top plate
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [=C2=B0C]
120 =C2=B0C
Max. sensor temperature [=C2=B0F]
248 =C2=B0F
Packing format
Multi pack
Parts included
screws,Wall bracket
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
b1323c86-8856-44cc-b1c6-6849abe37ee4
SCIP dossier product name
KP/KPI pressure switch
Sensor size (=C3=98 x L) [in]
1 1/2 x 1 1/4 in
Sensor size (=C3=98 x L) [mm]
25 x 78 mm
Sensor type
Room sensor
Serviceable
No
Temperature range [=C2=B0C] [max]
45 =C2=B0C
Temperature range [=C2=B0C] [min]
5 =C2=B0C
Temperature range [=C2=B0F] [max]
113 =C2=B0F
Temperature range [=C2=B0F] [min]
41 =C2=B0F
Type
KP76
UK RoHS compliance
Yes
UL approval file name
E31024,MH27572
UL evaluated
Yes
