060L124866
Part Number: 060L124866
Product Information
Extended Description
060L124866 Danfoss: Temperature range [°C]: -30 - 15, Reset function: Auto, Contact function: SPDT, Sensor type: Capillary tube sensor, Capillary tube length [mm]: 4000, Enclosure rating IP: IP30
Gross weight
0.622 Kilogram
Net weight
0.529 Kilogram
Volume
1.468 Liter
EAN
5702428251587
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
157 1/2 in
Capillary tube length [mm]
4000 mm
CE evaluated
Yes
Charge type
Vapour
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Diff. @ Max. range setting [K] [max]
7 K
Diff. @ Max. range setting [K] [min]
1.5 K
Diff. @ Max. range setting[°C] [max]
7 °C
Diff. @ Max. range setting[°C] [min]
1.5 °C
Diff. @ Min. range setting [K] [max]
23 K
Diff. @ Min. range setting [K] [min]
5.5 K
Diff. @ Min. range setting[°C] [max]
23 °C
Diff. @ Min. range setting[°C] [min]
5.5 °C
Differential type
Adjustable
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
120 °C
Max. sensor temperature [°F]
248 °F
Packing format
Multi pack
Parts included
Clamps,Wall bracket
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
14 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
be15a44e-80b1-41bd-9578-c8ff1cd7b9f3
Sensor size (Ø x L) [in]
1/10 x 19 5/8 in
Sensor size (Ø x L) [mm]
2.5 x 500 mm
Sensor type
Capillary tube sensor
Serviceable
No
Temperature range [°C] [max]
15 °C
Temperature range [°C] [min]
-30 °C
Temperature range [°F] [max]
59 °F
Temperature range [°F] [min]
-22 °F
Type
KP61
UK RoHS compliance
Yes
UL approval file name
E31024
UL evaluated
Yes
017-420166
Switches accessories, Sensor Holder Kit
017-420466
Switches accessories, Clamping Band Ass'y
017-422066
Generic accessories, Tube Gland For RT
060-003166
Switches accessories, Protective Cap For KP Single
060-033066
Switches accessories, IP55 Enclosure For KP (Single)
060-062866
Switches accessories, IP55 Transparent Enclosure
060-105566
Switches accessories, Wall Bracket Straight
060-105666
Switches accessories, Wall Bracket Angle
060-109766
Switches accessories, Top Plate For KP Single
Switches and thermostats - Industrial Refrigeration product group catalogue
Thermostat type KP
Thermostat Type KP, Spare parts and accessories
KP Temperature Switch (Thermostat) KP61 type
Thermostat KP 61 – KP 85
Thermostat type KP
Danfoss CCC 2024010305641303
Danfoss EU 060-9650AF
UL E31024
Pressure switches & Thermostats
Danfoss MD 060-9638.AA
BV SMS.W.II-2179-C.0
BV 02281-K0 BV
DNV TAA000026F Rev.01
LR21356588TA
Danfoss UK 060-9690.AA

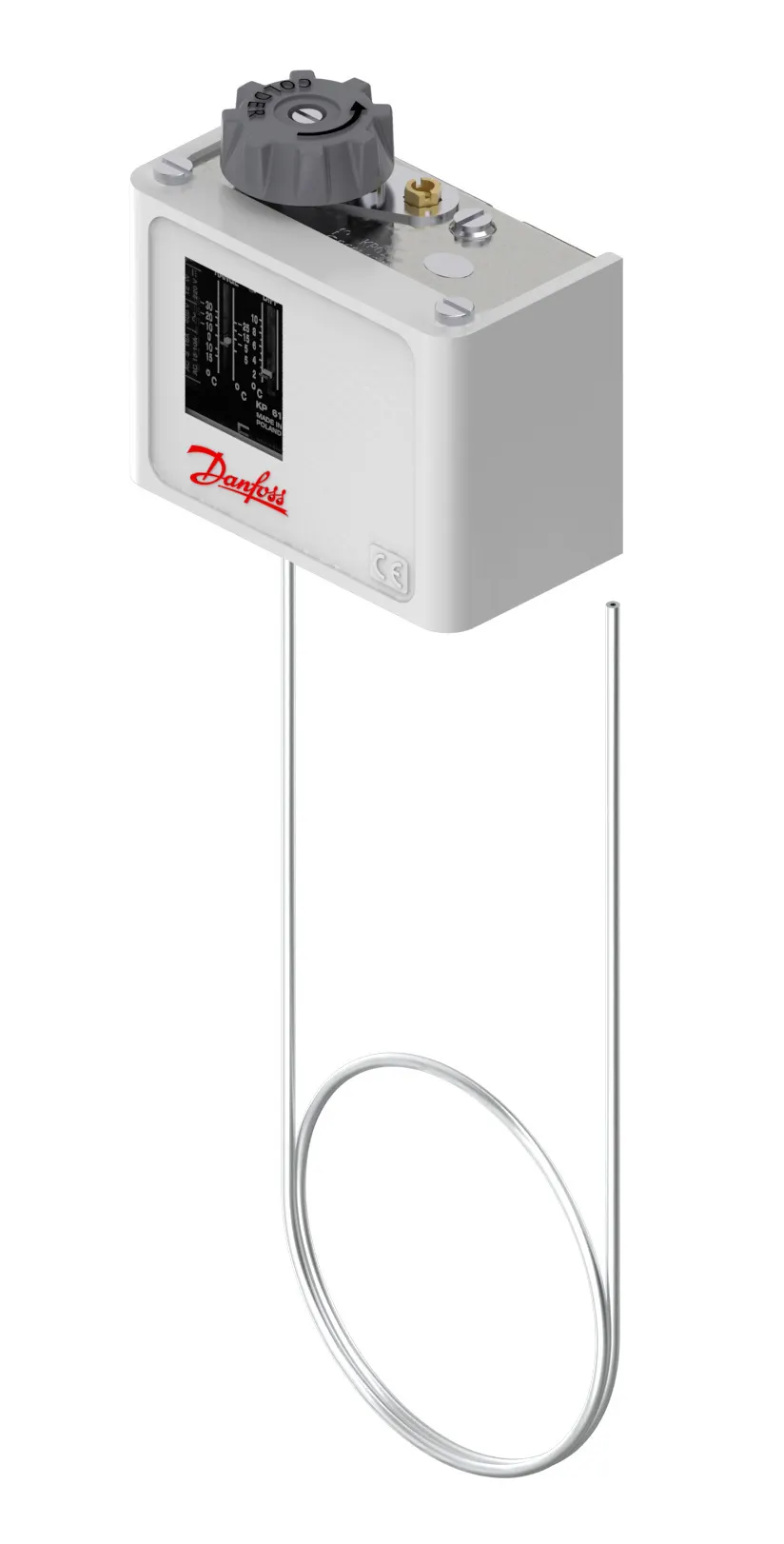

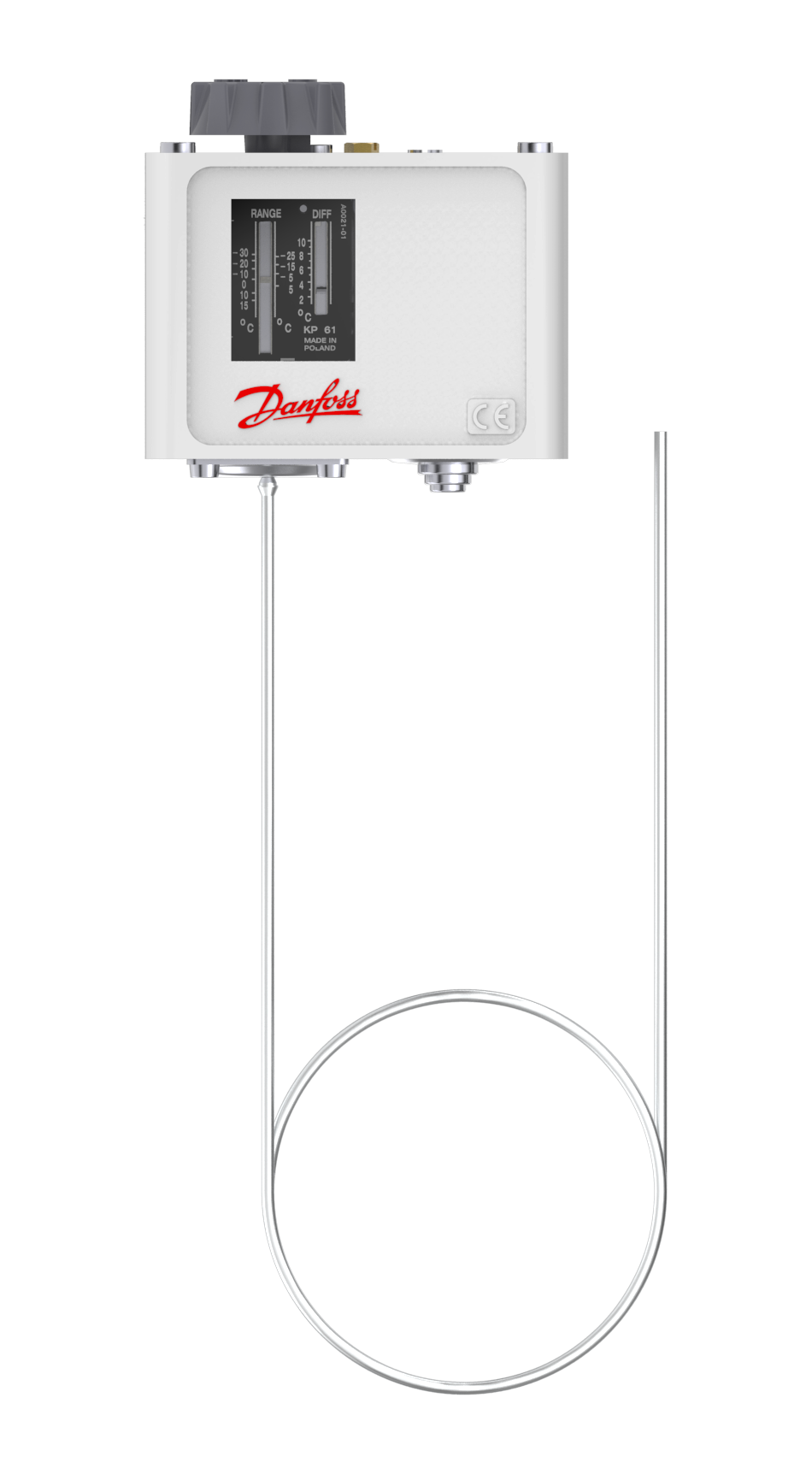

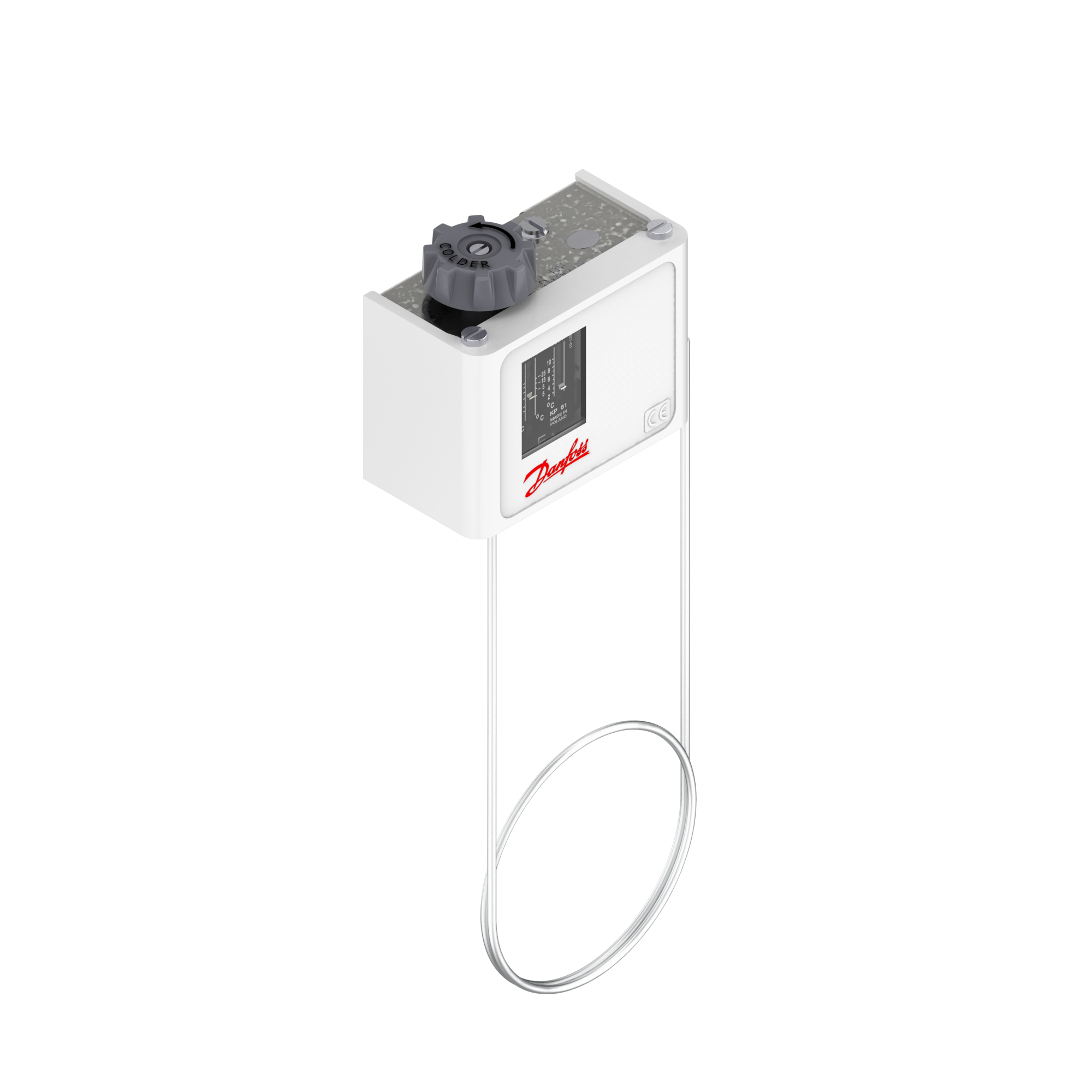

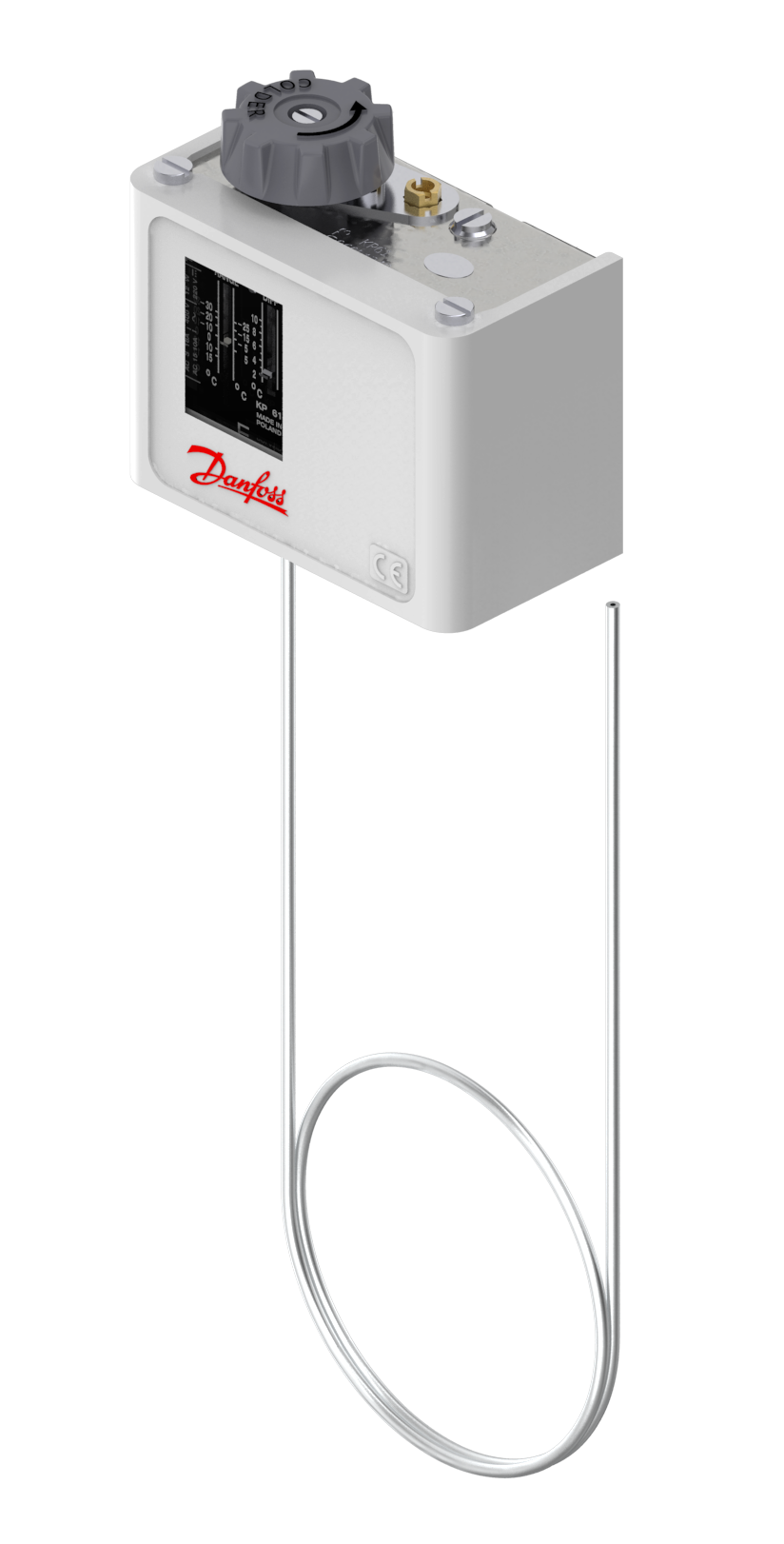

KP61 Thermostat, WEB060L8059
KP 61 - KP 81 dimensions, without sensor bulb
KP61 Thermostat, WEB060L8059
KP61 Thermostat, WEB060L8059
