060L1330
Part Number: 060L1330
Product Information
Extended Description

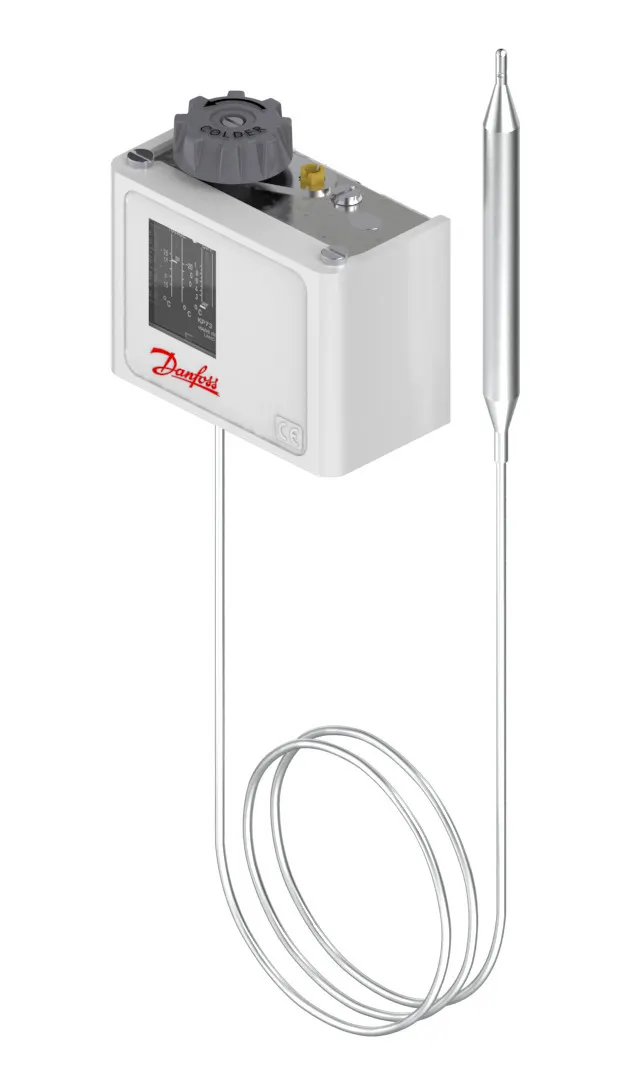

060L1330 Danfoss: Temperature range [°C]: -25 - 15, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2030, Enclosure rating IP: IP30
Gross weight
454 Gram
Net weight
400 Gram
EAN
5715162932087
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,CMIM,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
80 in
Capillary tube length [mm]
2030 mm
CE evaluated
Yes
Charge type
Adsorption
Contact function
SPDT
Contact rating
AC15=10 A, 400 V,AC1=16 A, 400 V,AC3=16 A, 400 V,DC13=12 W, 220 V,LR=112 A, 400 V
Contain batteries
No
Diff. @ Max. range setting [K] [max]
7 K
Diff. @ Max. range setting [K] [min]
3 K
Diff. @ Max. range setting[°C] [max]
7 °C
Diff. @ Max. range setting[°C] [min]
3 °C
Diff. @ Min. range setting [K] [max]
10 K
Diff. @ Min. range setting [K] [min]
3.5 K
Diff. @ Min. range setting[°C] [max]
10 °C
Diff. @ Min. range setting[°C] [min]
3.5 °C
Differential type
Adjustable
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
Electrical spec. standard
EN 60947-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
Max. sensor temperature [°C]
80 °C
Max. sensor temperature [°F]
176 °F
Packing format
Industrial pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
12 pc
Reset function
Auto
Sensor size (Ø x L) [in]
3/8 x 4 1/2 in
Sensor size (Ø x L) [mm]
9.5 x 115 mm
Sensor type
Remote bulb
Serviceable
No
Temperature range [°C] [max]
15 °C
Temperature range [°C] [min]
-25 °C
Temperature range [°F] [max]
59 °F
Temperature range [°F] [min]
-13 °F
Type
KP73
UL approval file name
E31024
UL evaluated
Yes
