060L201566

Part Number: 060L201566
060L201566
Manufacturer
Danfoss
Part number
060L201566
Category

Product Information

Extended Description

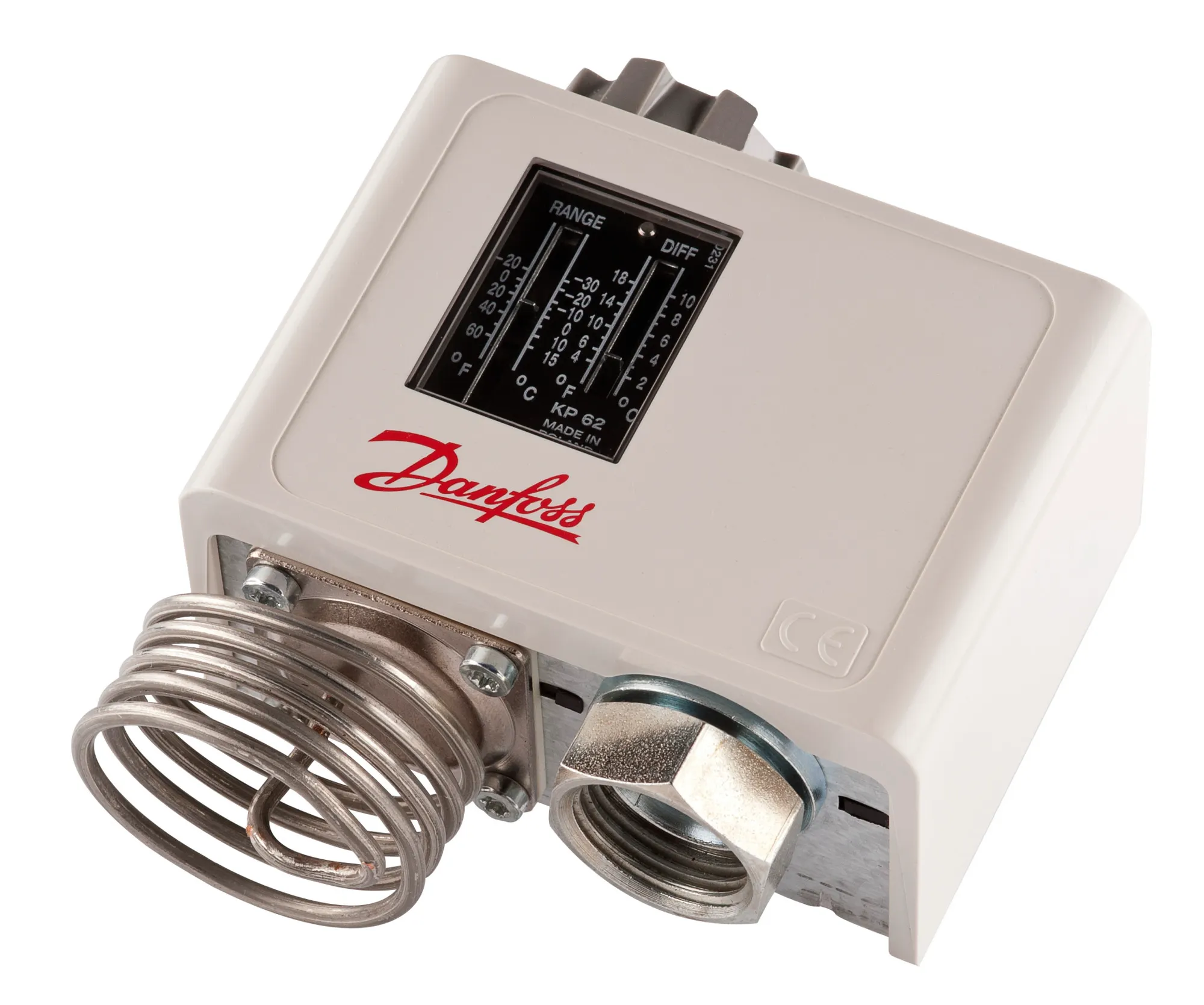

060L201566 Danfoss: Temperature range [°C]: -30 - 15, Reset function: Auto, Contact function: SPDT, Sensor type: Room sensor, Enclosure rating IP: IP30
Gross weight
0.36 Kilogram
Net weight
0.296 Kilogram
Volume
0.57 Liter
EAN
5702428014793
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
BV,CCC,CE,DNV,EAC,GL,LLC CDC EURO-TYSK,LR,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
CE evaluated
Yes
Charge type
Vapour
China RoHS compliance
Yes
Contact function
SPDT
Contact rating
120 V AC, 16 FLA, 96 LRA,16 A resistive, single phase,240 V AC, 8 FLA, 48 LRA,8 A resistive, single phase,Pilot Duty: 120/240 V ac 3A,Pilot Duty: 240V dc 12W(0.05A)
Contain batteries
No
Diff. @ Max. range setting [K] [max]
7 K
Diff. @ Max. range setting [K] [min]
1.5 K
Diff. @ Max. range setting[°C] [max]
7 °C
Diff. @ Max. range setting[°C] [min]
1.5 °C
Diff. @ Max. range setting[°F] [max]
13 °F
Diff. @ Max. range setting[°F] [min]
2.7 °F
Diff. @ Min. range setting [K] [max]
23 K
Diff. @ Min. range setting [K] [min]
6 K
Diff. @ Min. range setting[°C] [max]
23 °C
Diff. @ Min. range setting[°C] [min]
6 °C
Diff. @ Min. range setting[°F] [max]
40 °F
Diff. @ Min. range setting[°F] [min]
11 °F
Differential type
Adjustable
Electrical conn. Male/Female
Female
Electrical connection
Swivel cable connector
Electrical connection size
NPSM 1/2 - 14
Electrical connection standard
ANSI/ASME B1.20.1
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
120 °C
Max. sensor temperature [°F]
248 °F
Packing format
Multi pack
Parts included
screws
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
36 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function
Auto
SCIP dossier no.
be15a44e-80b1-41bd-9578-c8ff1cd7b9f3
Sensor size (Ø x L) [in]
1 1/2 x 1 1/4 in
Sensor size (Ø x L) [mm]
40 x 30 mm
Sensor type
Room sensor
Serviceable
No
Temperature range [°C] [max]
15 °C
Temperature range [°C] [min]
-30 °C
Temperature range [°F] [max]
60 °F
Temperature range [°F] [min]
-20 °F
Type
KP62
UK RoHS compliance
Yes
UL approval file name
E31024
UL evaluated
Yes
060-003166
Switches accessories, Protective Cap For KP Single
060-105366
Switches accessories, Bracket Angle
060-109766
Switches accessories, Top Plate For KP Single
Danfoss solutions for Air Handling Units and Rooftops Switches and thermostats - Industrial Refrigeration product group catalogue Thermostat type KP Thermostat Type KP, Spare parts and accessories Thermostat KP 61 – KP 85 Thermostat type KP Thermostat type KP 61 - KP 81 Danfoss CCC 2024010305641303 Danfoss EU 060-9650AF UL E31024 Pressure switches & Thermostats Danfoss MD 060-9638.AA BV SMS.W.II-2179-C.0 BV 02281-K0 BV DNV TAA000026F Rev.01 LR21356588TA RINA ELE086320XG-001 KP 62 Thermostat with C air coil (auto reset) KP 61 - KP 81 dimensions, without sensor bulb
