060L202466
Part Number: 060L202466
Product Information
Extended Description
060L202466 Danfoss: Contact function: 2 SPST(NC), Sensor type: Remote bulb, Capillary tube length [mm]: 1016, Enclosure rating IP: IP30
Gross weight
0.68 Kilogram
Net weight
0.62 Kilogram
Volume
1.993 Liter
EAN
5702428016797
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
150 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CCC,CE,CMIM,EAC,LLC CDC EURO-TYSK,LVD,PZH,RINA,RMRS,RoHS China,c UL us UL873, CS C22.2
Cap. tube length fraction [in]
40 in
Capillary tube length [mm]
1016 mm
CE evaluated
Yes
Charge type
Adsorption
China RoHS compliance
Yes
Contact function
2 SPST(NC)
Contact rating
120 V AC, 16 FLA, 96 LRA,16 A resistive, single phase,240 V AC, 8 FLA, 48 LRA,8 A resistive, single phase,Pilot Duty: 120/240 V ac 3A,Pilot Duty: 240V dc 12W(0.05A)
Contain batteries
No
Diff. @ Max. range setting [K]
14 K
Diff. @ Max. range setting[°C]
14 °C
Diff. @ Max. range setting[°F]
25 °F
Diff. @ Min. range setting [K]
14 K
Diff. @ Min. range setting[°C]
14 °C
Diff. @ Min. range setting[°F]
25 °F
Differential type
Fixed
Electrical conn. Male/Female
Female
Electrical connection
Swivel cable connector
Electrical connection size
NPSM 1/2 - 14
Electrical connection standard
ANSI/ASME B1.20.1
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 16A
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2,Flex, no ferrules: 0.7-2.5 mm2,Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
Equipment
Right side cap.tube 80 in
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
150 °C
Max. sensor temperature [°F]
302 °F
Packing format
Multi pack
Product accessories
Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset function, left side
Manual Max
Reset function, right side
Manual Max
SCIP dossier no.
be15a44e-80b1-41bd-9578-c8ff1cd7b9f3
Sensor size (Ø x L) [in]
3/8 x 4 1/2 in
Sensor size (Ø x L) [mm]
9.5 x 115 mm
Sensor type
Remote bulb
Serviceable
No
Temp. range left side [°C] [max]
120 °C
Temp. range left side [°C] [min]
60 °C
Temp. range left side [°F] [max]
250 °F
Temp. range left side [°F] [min]
140 °F
Temp. range right side [°C] [max]
180 °C
Temp. range right side [°C] [min]
100 °C
Temp. range right side [°F] [max]
350 °F
Temp. range right side [°F] [min]
210 °F
Type
KP98
UK RoHS compliance
Yes
UL approval file name
E31024
UL evaluated
Yes
017-420166
Switches accessories, Sensor Holder Kit
017-420366
Switches accessories, Sensor Clamp
017-420466
Switches accessories, Clamping Band Ass'y
017-421666
Switches accessories, Sensor Pocket
017-422066
Generic accessories, Tube Gland For RT
017-436966
Switches accessories, Sensor Pocket KP/RT Stainless 112mm G ½"
017-437066
Switches accessories, Sensor Pocket KP/RT 112mm G½"
060-003166
Switches accessories, Protective Cap For KP Single
060-105366
Switches accessories, Bracket Angle
060L327366
Switches accessories, Gasket Set For Sensor Pocket
Switches and thermostats - Industrial Refrigeration product group catalogue
Thermostat type KP
Thermostat Type KP, Spare parts and accessories
Thermostat type KP
Thermostat, type KP98
Danfoss CCC 2024010305641303
Danfoss EU 060-9650AF
Pressure switches & Thermostats
Danfoss MD 060-9638.AA
RINA ELE086320XG-001
Danfoss UK 060-9690.AA

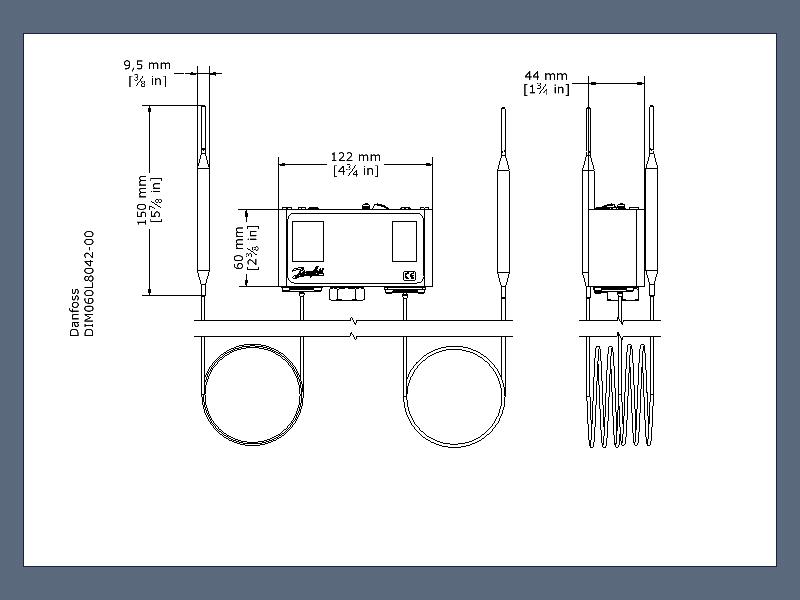

KP 98 dimensions

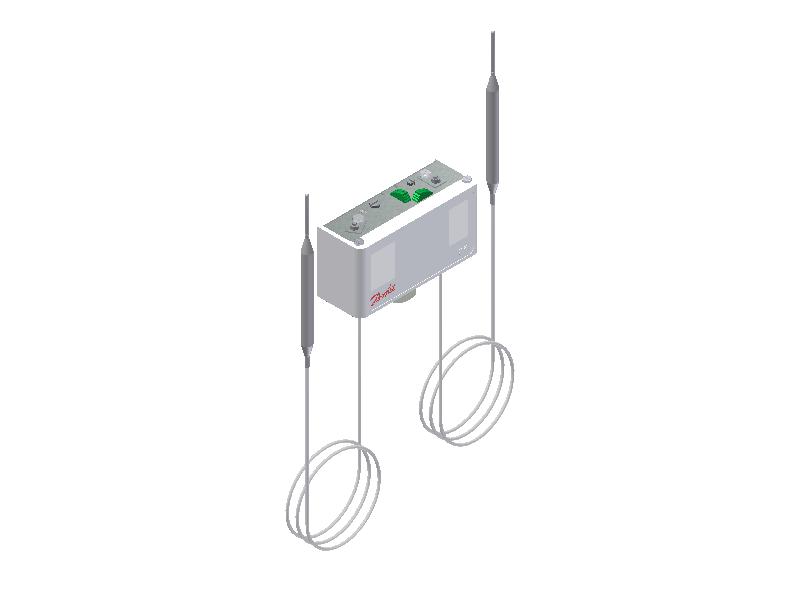

KP98 Thermostat
KP98 Thermostat
